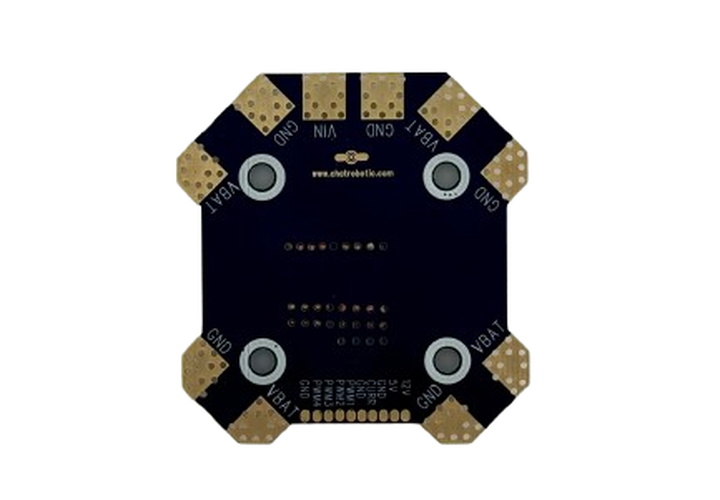

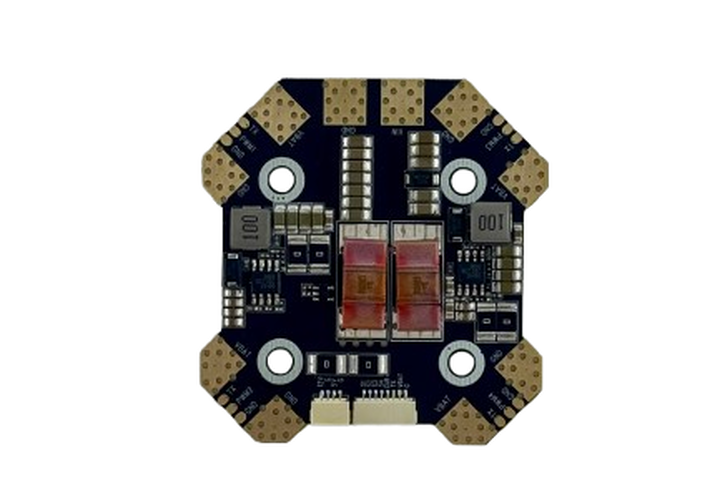

DCDC 150A Power adapter board

FPV Electronics > Adapter board

$16.90
$26.90
A robust power regulation solution designed to provide reliable voltage conversion and current handling for high-power applications.
SKU: CRP00896
Package weight: 0.07 KG
Pkg. Size: 105MM*75MM*25MM
IN STOCK
To Wishlist
Add to Cart



150A DC-DC Power Adapter Board Technical Brief

Overview

High-current bidirectional voltage converter designed for drone power systems, capable of handling extreme current loads while maintaining stable voltage output for sensitive avionics.

1. Core Specifications

ParameterSpecification
Input Voltage2-8S (12.6-33.6V)
Output VoltageBEC-5V4.5A and 12V3A
Continuous Current150A (200A peak for 10s)
Efficiency96% @ 24V→12V conversion
Switching Freq1MHz (synchronous rectification)
Dimensions65×50×15mm
Weight85g

2. Key Features

Power Architecture

  • • Current Sense Resistors: 2× Manganin alloy resistors (model 5930), 0.3Ω ±1%

  • • Current Monitoring: INA169NA precision current comparator IC

Protection Systems


Protection TypeThreshold
Overcurrent200A (10 seconds)
DCDC2x independent DCDC-SCT2650 outputs
BEC overload protection5V exceeds 4.5A, 12V exceeds 3A, automatically disconnect the output to prevent short circuit burning
Capacitor filtering22x 22UF ceramic capacitors + 1x 1000UF electrolytic capacitor, stable output
Reverse Polarity-40V
Thermal Shutdown125°C


3. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT60-male 12AWG silicone cable 15cm length

  • • 5x M3*4.5mm shock-absorbing balls

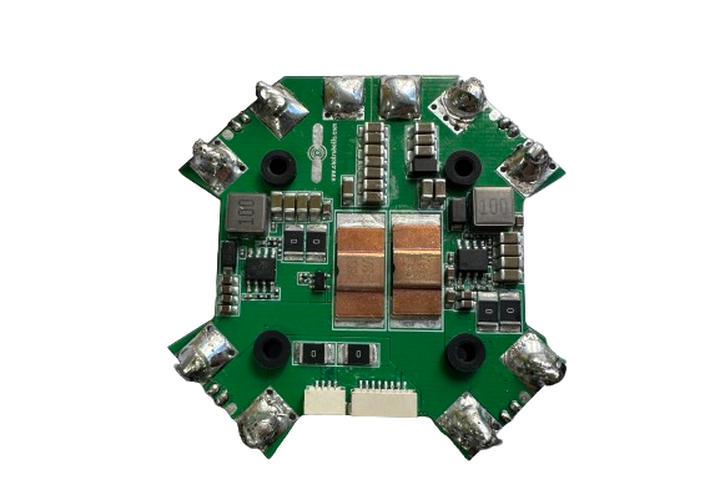

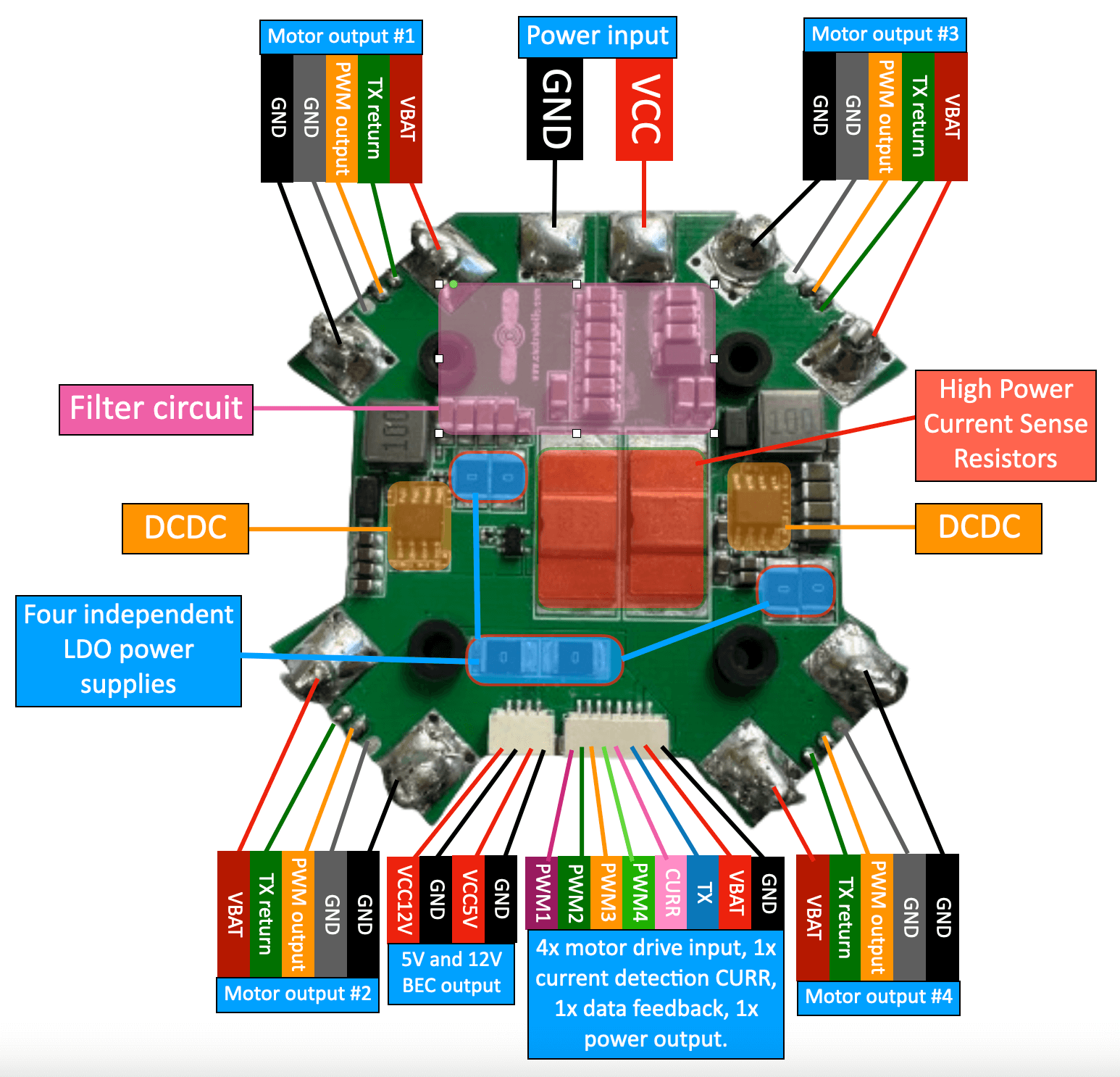

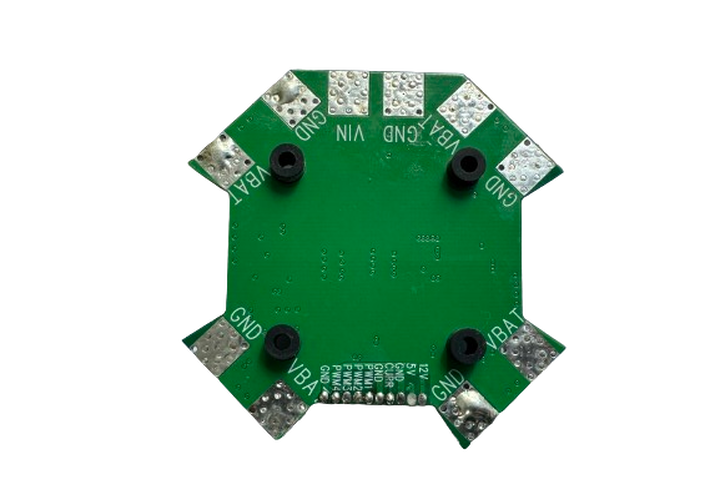

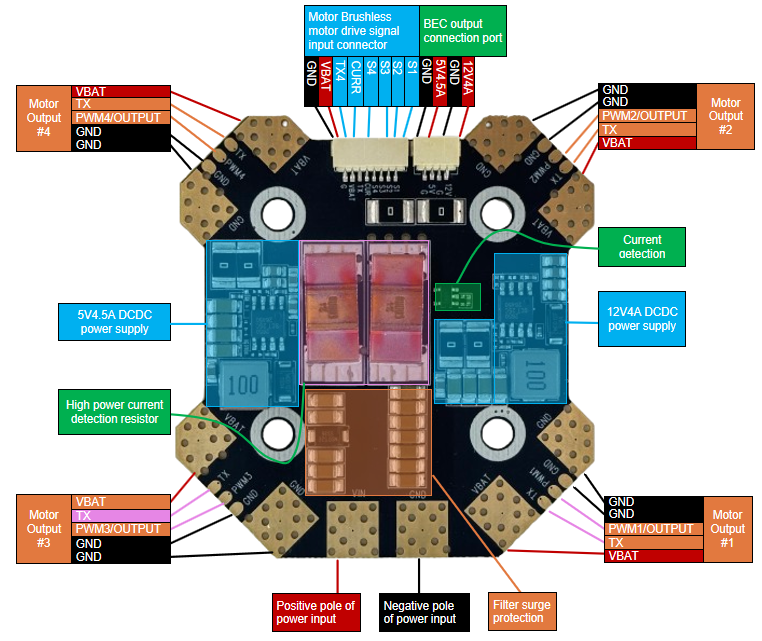

4. Connection Diagram
