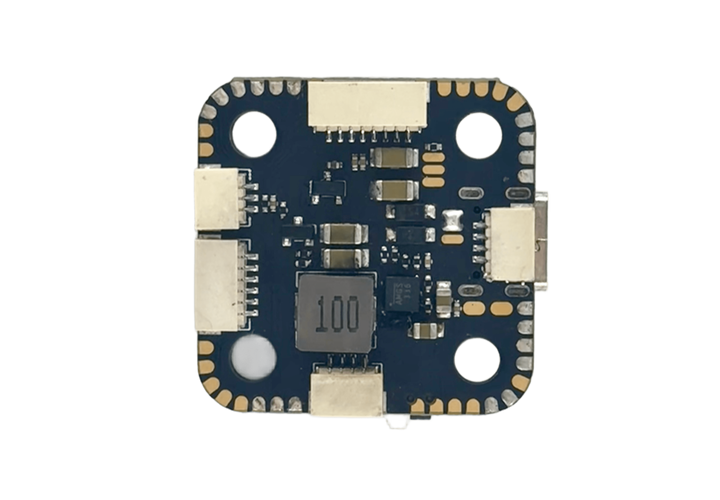

F405 Mini Flight Controller (20x20 hole)

FPV Electronics > Flight Controller

$27.90
$37.90
The F405 Mini ESC is an ultra-compact electronic speed controller designed for high-performance drones and micro robotics.
SKU: CRP00866
Package weight: 0.10 KG
Pkg. Size: 55MM*55MM*20MM
IN STOCK
To Wishlist
Add to Cart



F405 Mini FC Technical Brief

Descriptions

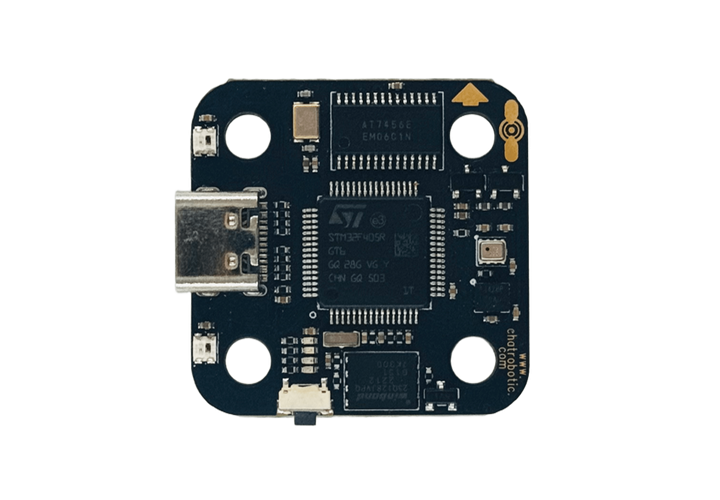

The F405 Mini FC is an ultra-compact electronic speed controller designed for high-performance drones and micro robotics. Built around the STM32F405 microcontroller (ARM Cortex-M4 @ 168MHz), it delivers precise motor control with advanced telemetry capabilities. Ideal for racing drones, robotic actuators, and applications requiring high power density in minimal space.

1. Main Specifications

ComponentDetails
ProcessorSTM32F405 (Cortex-M4 @ 168MHz, FPU)
Memory192KB SRAM + 1MB Flash
Input Voltage2S-8S LiPo (7.4V-33.6V)
BEC OutputBattery voltage or 5V1A
Gyroscope update rate8kHz
Dimensions30×20mm (20×20mm mounting)
Weight6.9g

2. Key Features

  • • Multi-Protocol Support: DShot150/600, Oneshot125, PWM, and ProShot

  • • Real-Time Telemetry: RPM, temperature, voltage, and current monitoring

  • • Adaptive Timing: Auto motor timing calibration for efficiency optimization

3. Firmware Compatibility

✅ Betaflight (Firmware version4.4.2BTFL)

4. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end)

  • • 5x M3*10mm shock-absorbing balls

5. Connection Diagram
