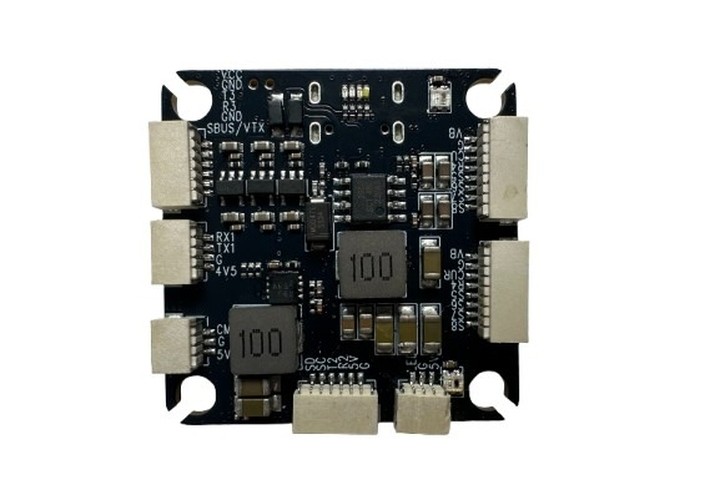

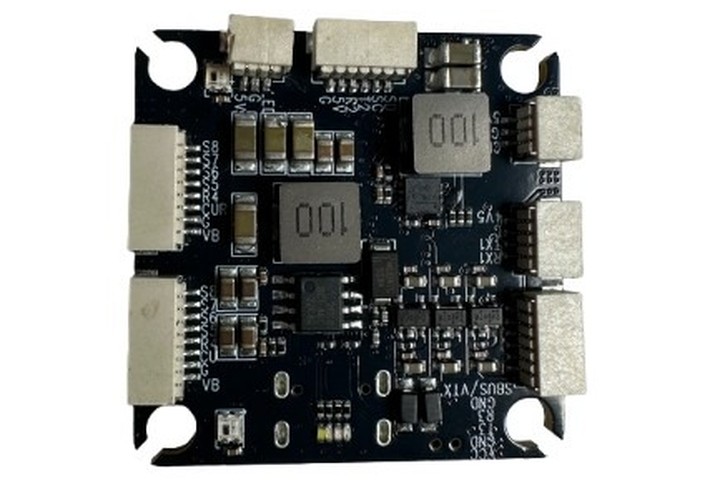

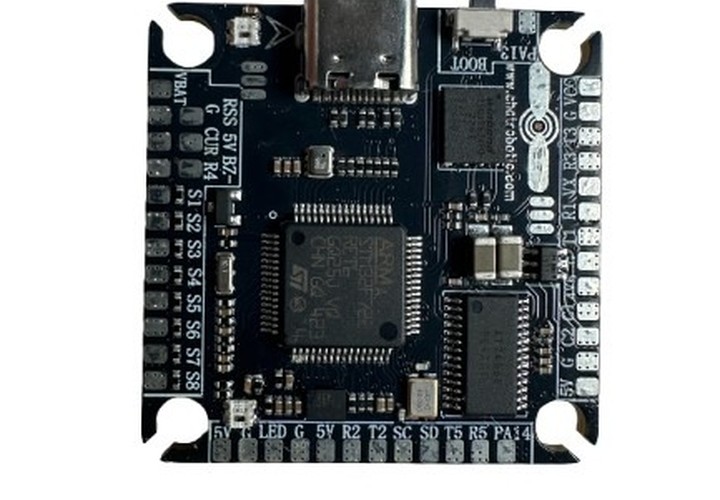

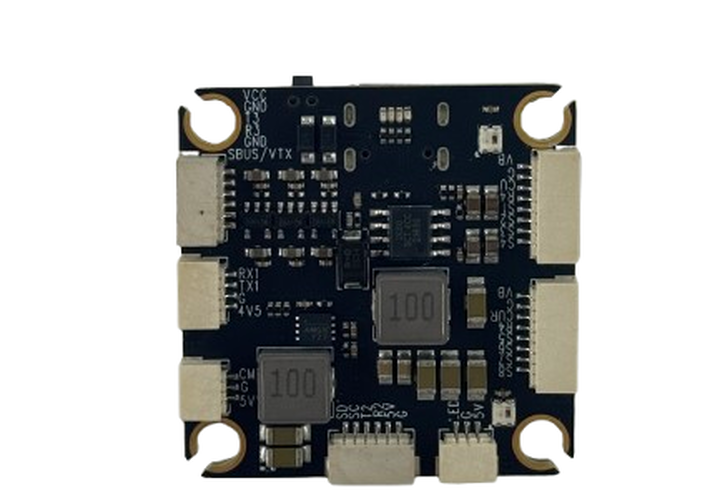

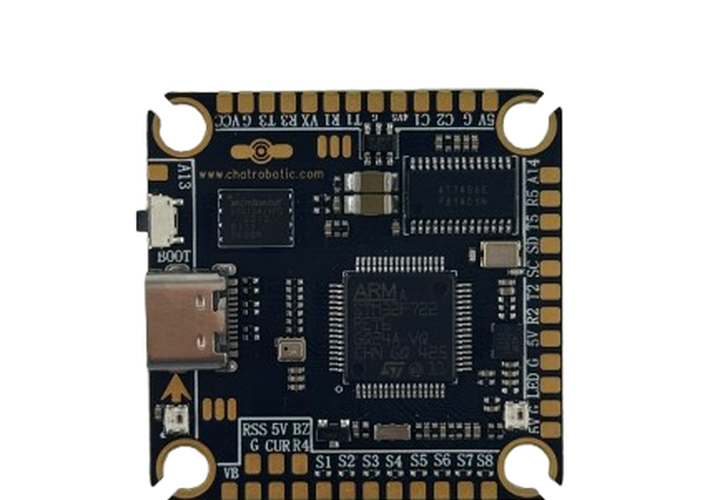

F722 Flight Controller

FPV Electronics > Flight Controller

$34.90
$44.90
F722 Flight Controller is built around the STM32F722 32-bit processor, which operates at 216MHz, providing exceptional processing capabilities for flight stabilization and control.
SKU: CRP00887
Package weight: 0.10 KG
Pkg. Size: 55MM*55MM*20MM
IN STOCK
To Wishlist
Add to Cart



F722 Flight Controller Technical Brief

Descriptions

The F722 Flight Controller is a high-performance flight control board designed for FPV drones, leveraging the STM32F722 microcontroller (ARM Cortex-M7) for fast processing, advanced filtering, and smooth flight characteristics. It’s widely used in racing, freestyle, and even long-range builds due to its balance of power and affordability.

1. Main Specifications

ComponentDetails
ProcessorSTM32F722 (Cortex-M7 @ 216MHz)
Memory256KB SRAM + 512KB Flash
IMUICM42688-P (SPI, 32kHz gyro sampling)
BarometerBMP280 (±0.12hPa accuracy)
Connectivity5x UART / 9x PWM / I²C / SPI
Blackbox Storage16MB Flash (4kHz logging)
Input Voltage2S-8S LiPo (11.1-33.6V)
BEC Outputs[email protected] + 5V@3A
Dimensions37*37mm (30.5*30.5mm mounting)
Weight9g

2. Key Features

High-speed IMU: 32kHz gyro sampling (ICM42688-P)
Multi-protocol support: SBUS/CRSF/ELRS/MSP
Onboard OSD: AT7456E chip for FPV telemetry overlay
Robust power: Reverse polarity protection + dual BECs

3. Firmware Compatibility

✅ Betaflight (Target: 4.5.0 BTFL)

4. Typical Applications

🚁 FPV Racing Drones (Prioritize low latency)
🛸 Freestyle UAVs (High dynamic maneuverability)
🗺️ Autonomous Mapping Drones (GPS module required)

5. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end)

  • • 5x M3*10mm shock-absorbing balls

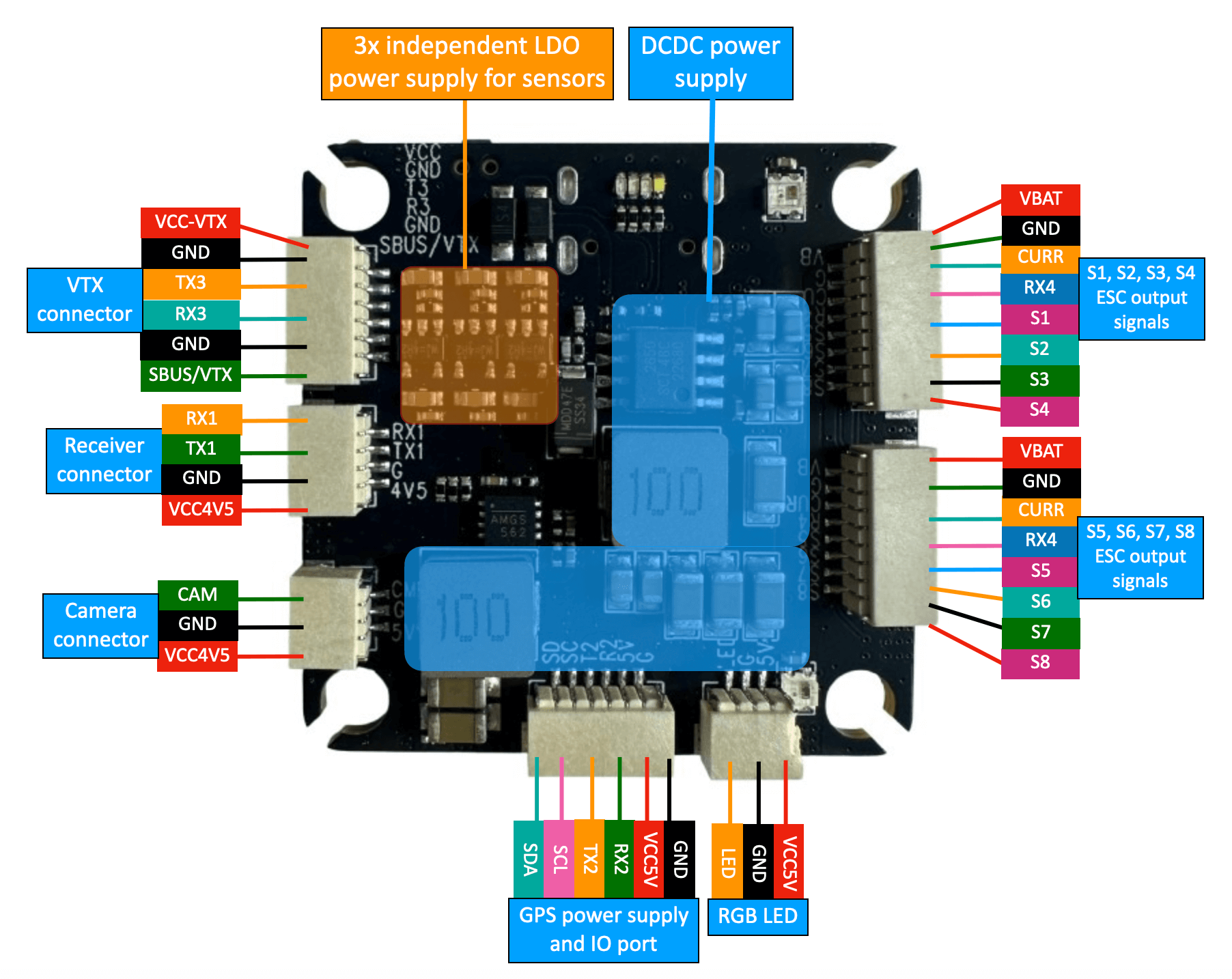

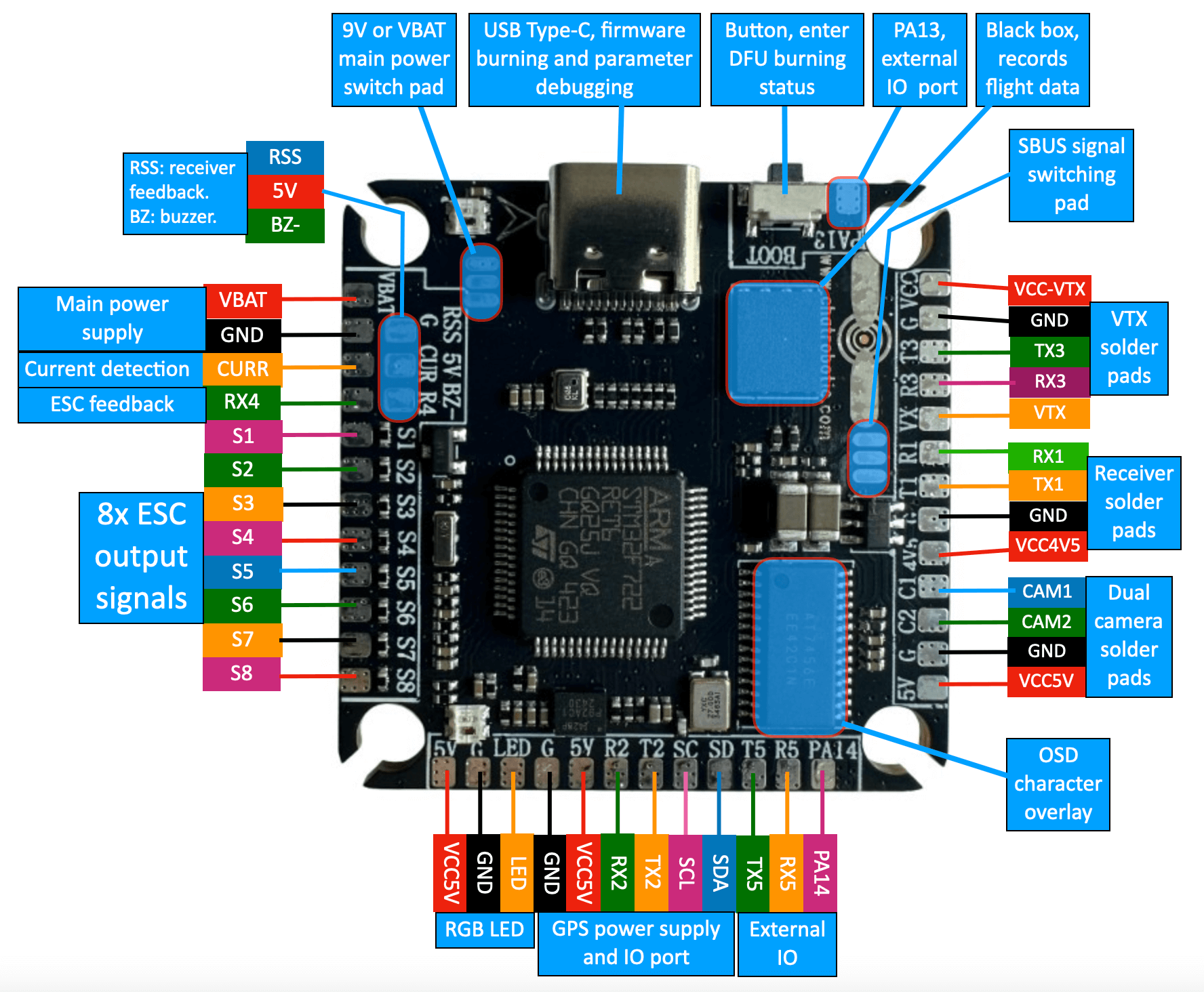

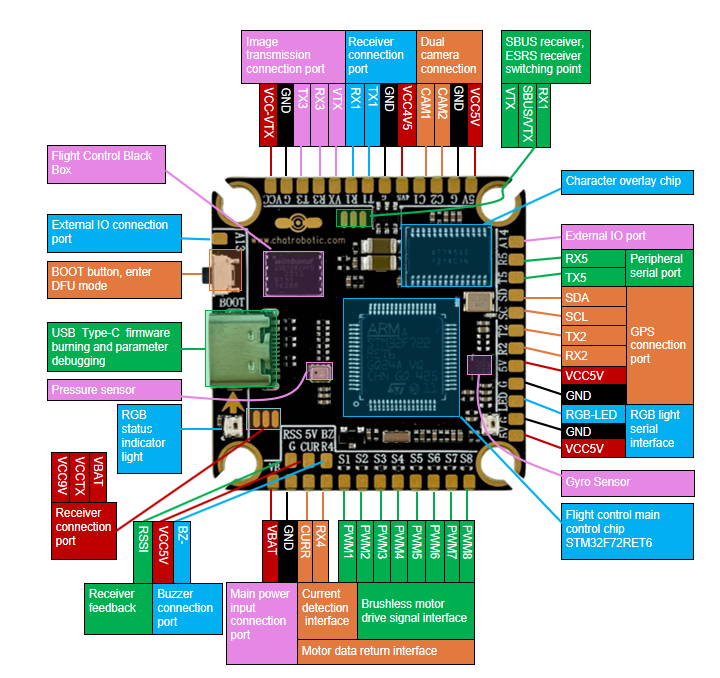

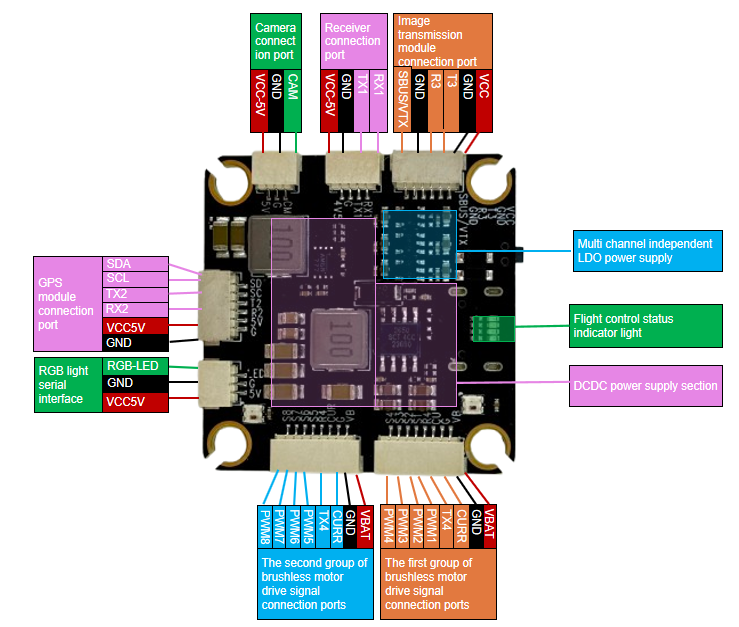

6. Connection Diagram
