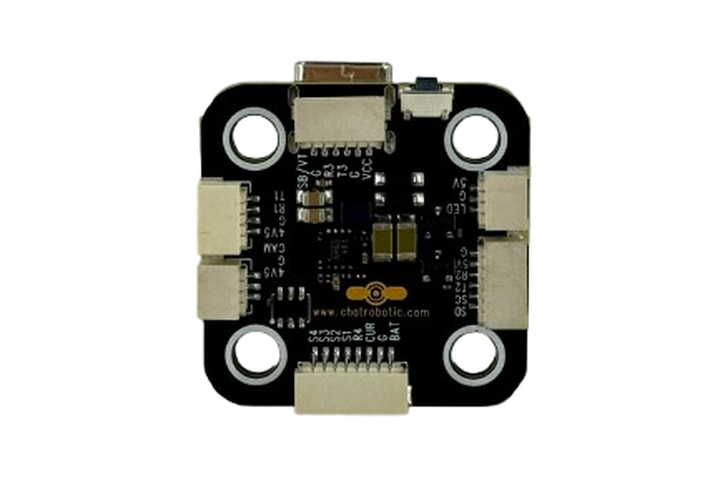

F722 Mini Flight Controller (20x20 hole)

FPV Electronics > Flight Controller

$30.90
$40.90
The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications.
SKU: CRP00931
Package weight: 0.10 KG
Pkg. Size: 55MM*55MM*20MM
IN STOCK
To Wishlist
Add to Cart



F722 Mini Flight Controller Technical Brief

Descriptions

The F722 Mini Flight Controller is a high-performance flight control system designed for compact FPV drones and UAV applications. Built around the STM32F722 microcontroller (ARM Cortex-M7 @ 216MHz), it delivers ultra-low latency processing and advanced flight dynamics. Featuring redundant sensors and dual BEC outputs, it is optimized for racing, cinematic filming, and long-range autonomous missions in space-constrained builds:cite[2]:cite[9].

1. Main Specifications

ComponentDetails
ProcessorSTM32F722 (Cortex-M7 @ 216MHz, Dual FPU)
Memory512KB SRAM + 2MB Flash
IMUICM-42688-P (SPI, 32kHz gyro)
BarometerBMP280 (Pressure precision: ±0.12 hPa)
Connectivity6×UART / 8×PWM / 2×CAN FD / 2×GPIO / 1×SPI
Blackbox StorageMicroSD card (supports 16GB~128GB)
Input Voltage2S-8S LiPo (10.8V-25.2V)
BEC Outputs5V@3A (Switch-mode) + VBTA
Dimensions30×30mm (20×20mm & 30×30mm mounting) :cite[9]
Board Weight6.0g

2. Key Features

  • • 8kHz Control Loops: 125μs cycle time with hardware-accelerated filtering

  • • Redundant IMU Support: Primary ICM-42688-P

  • • Dual CAN FD Buses: Enables ESC telemetry daisy-chaining (e.g., T-Motor Velox)

  • • Integrated OSD: AT7456E chip with customizable HUD and font support

  • • DJI Air Unit Integration: Dedicated plug-and-play port for DJI FPV systems

  • • Advanced BEC Design: MP9943-based synchronous rectifier with <100mV ripple

  • • Pit Switch Control: Remote VTx power management via transmitter

3. Firmware Compatibility

✅ Betaflight (Target: 4.5.0 BTFL)

4. Typical Applications

🏁 Racing Drones:

  • • 32-bit Master Control Electronic Speed Controller (ESC)

  • • Sub-250g whoop-class racers

🎥 Cinematic FPV:

  • • Vibration-damped cinewhoop platforms

  • • HD camera gimbal controllers

🛰️ Long-Range UAVs:

  • •Equipped with GPS and special equipment for surveying and mapping

5. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end)

  • • 5x M3*10mm shock-absorbing balls

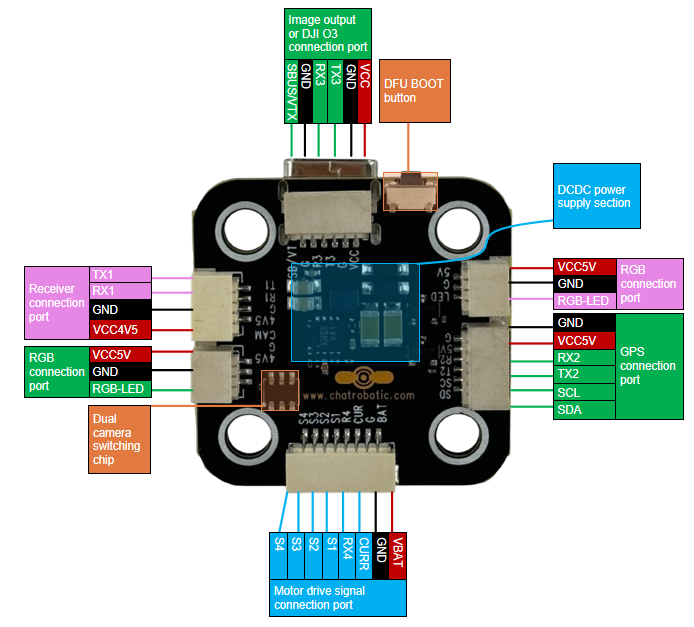

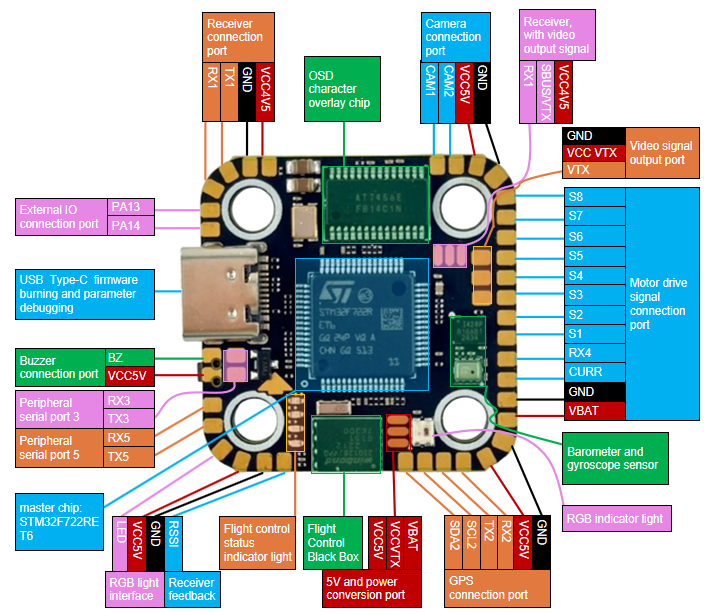

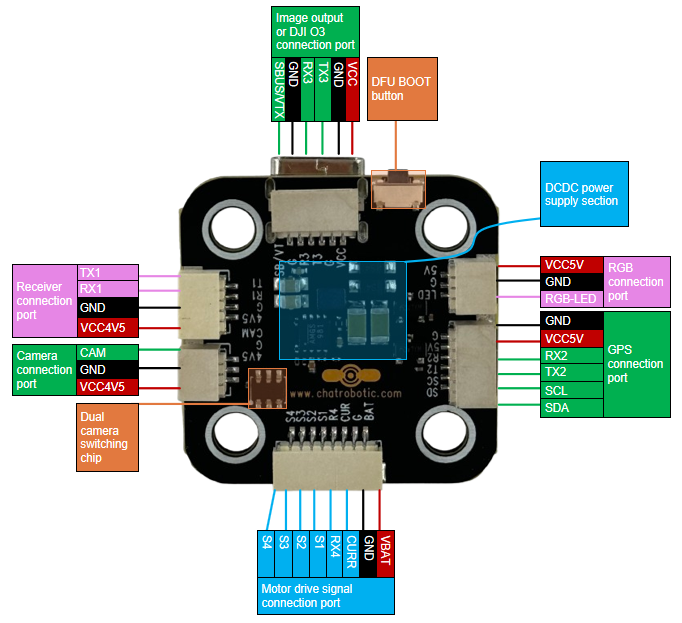

6. Connection Diagram
