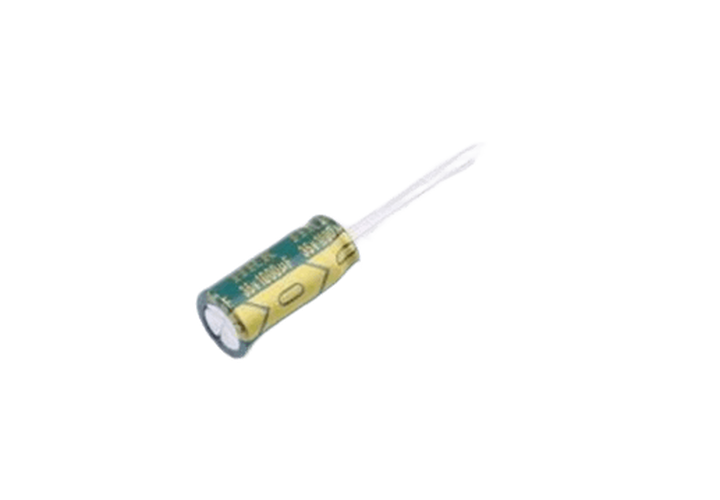

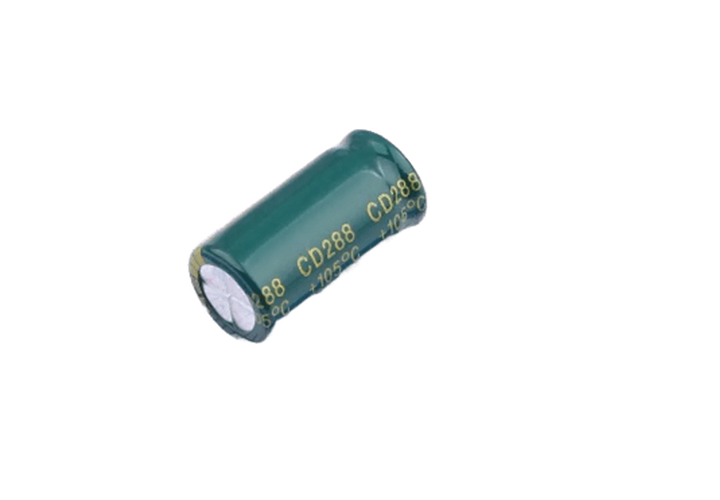

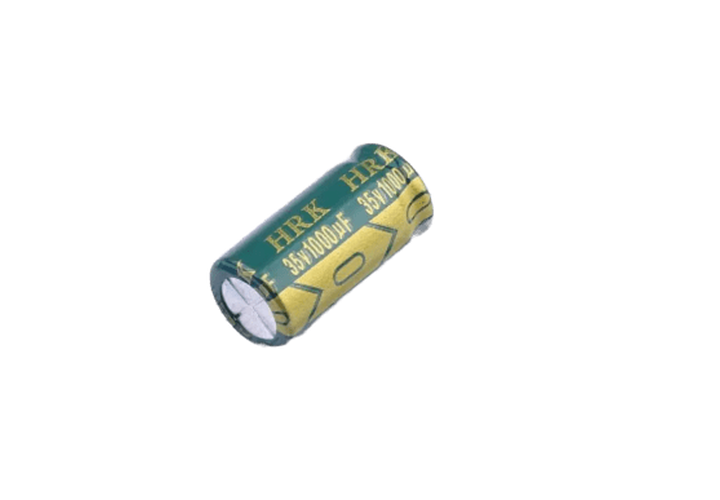

The 1000μF 35V electrolytic capacitor features high-capacitance storage and low-ESR performance for power filtering applications in drone electronics, power supplies, and industrial equipment. Utilizing advanced aluminum electrolytic technology with self-healing electrolyte, it provides superior ripple current handling and extended operational life. The capacitor's robust construction and stable electrical characteristics make it ideal for smoothing voltage fluctuations, reducing electrical noise, and stabilizing power delivery in demanding environments.
| Parameter | Specification |
| Capacitance | 1000μF ±20% |
| Rated Voltage | 35V DC |
| Category | Aluminum Electrolytic (Radial) |
| Temperature Range | -40°C to +105°C |
| Lifetime | 2000hrs @105°C |
| ESR (20°C) | ≤0.035Ω @100kHz |
| Ripple Current | 1.45A @105°C, 100kHz |
| Leakage Current | ≤0.01CV or 3μA (whichever greater) |
| Diameter | 10mm |
| Height | 20mm |
| Lead Spacing | 5mm |
• Low ESR Design: Optimized for high-frequency switching power applications
• High Ripple Current: 1.45A rating for stable voltage regulation
• Extended Lifespan: 2000-hour endurance at maximum temperature
• Self-Healing Electrolyte: Automatic oxide layer repair for reliability
• Vent Safety: Pressure-relief vent prevents rupture during failures
• Polarity Protection: Clear negative stripe marking for safe installation
• RoHS Compliance: Lead-free construction meets environmental standards
| Frequency | ESR (Ω) | Impedance (Ω) | Dissipation Factor |
| 100Hz | 0.45 | 1.59 | 0.28 |
| 1kHz | 0.08 | 0.16 | 0.12 |
| 10kHz | 0.04 | 0.04 | 0.08 |
| 100kHz | 0.035 | 0.035 | 0.07 |
• LiPo battery voltage stabilization
• ESC power input filtering
• FPV video transmitter power conditioning
• Flight controller power rail buffering
• Switching DC/DC converter output filtering
• AC/DC adapter output smoothing
• LED driver ripple reduction
• Solar charge controller energy storage
• Motor drive DC bus capacitors
• CNC spindle controller filtering
• PLC power module stabilization
• Welding machine energy storage
• Amplifier power supply decoupling
• Subwoofer crossover networks
• Studio equipment power conditioning
• Hi-Fi system noise reduction
• Solar power smoothing capacitors
• Battery management system buffering
• Emergency lighting hold-up circuits
• UPS system transient protection
• Operating Temperature: -40°C to +105°C
• Temperature Coefficient: Capacitance varies ±15% over temperature range
• Thermal Recovery: Full performance recovery after temperature cycling
• Humidity Resistance: 85°C/85% RH tested for 500 hours
• Vibration Resistance: 10-500Hz, 1.5mm amplitude
• Storage Conditions: -10℃ ~ +35℃, <75% RH, 6-month shelf life
