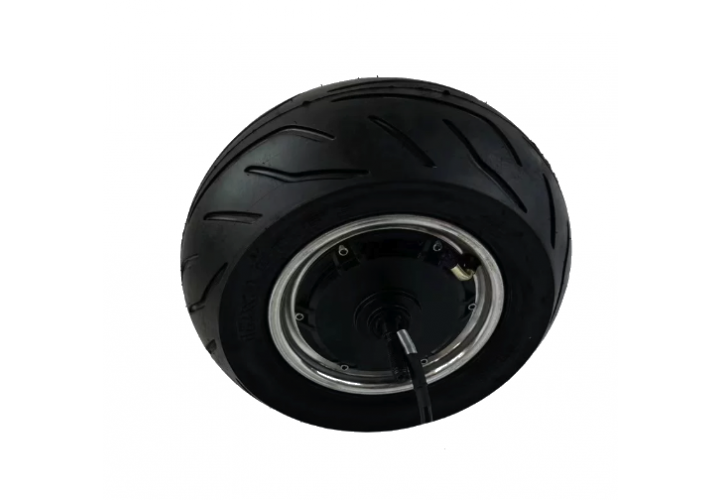

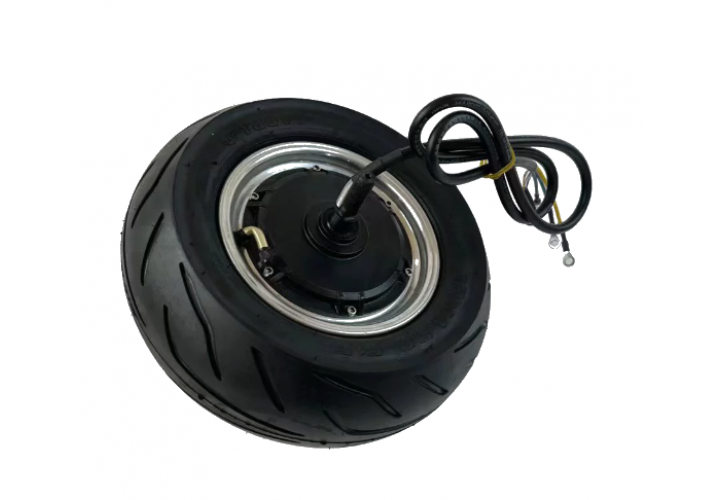

12" New Tubeless Tire Brushless Hub Motor 5000W with Disc Brake (48–72V / 96V)

Flagship power — 5000W of brushless torque wrapped around a tubeless off-road wheel.

Overview

This 12-inch New hub motor (item 145224) is the high-output member of the line, pushing 5000W of rated brushless power through a tubeless off-road tire with an integrated disc-brake mount. With 55 N·m of rated torque and 48–72V (96V-capable per listing) input, it is engineered for heavy e-scooters and performance e-vehicles that need maximum acceleration and load capacity.

Key Features

• • 5000W rated power — top of the range for serious performance.

• • 12-inch tubeless off-road tire — air-tight, puncture-resilient construction.

• • Integrated disc-brake mount — hydraulic/mechanical caliper ready.

• • Brushless DC (BLDC) hub motor — efficient, cool-running, long-lived.

• • 55 N·m rated torque @ 60A — class-leading pulling power.

• • 48–72V (96V-capable) wide voltage input.

• • 2000 rpm no-load speed — balanced for torque and top speed.

• • ~320 mm diameter, 8 kg net — robust yet manageable.

Specifications

Applications

• • High-power / heavy-load electric scooters

• • Performance e-vehicles and off-road builds

• • Electric cargo and utility vehicles

• • Custom high-torque conversion projects

Why Choose This Motor

• • 5000W / 55 N·m output leads the range for acceleration and load capacity.

• • Tubeless tire plus disc-brake mount deliver rugged, low-maintenance stopping and traction.

• • Larger 12" wheel smooths rough terrain while keeping weight reasonable at 8 kg.

Packaging & Shipping

• • Single motor, factory packed (33×33×33 cm carton).

• • Ships from China; free shipping available on the source channel.

• • Net weight 8 kg — confirm gross/package weight with supplier before quoting freight.

Ordering

Price: $266.9 USD (per the upload sheet). 96V configuration and MOQ available on request.
