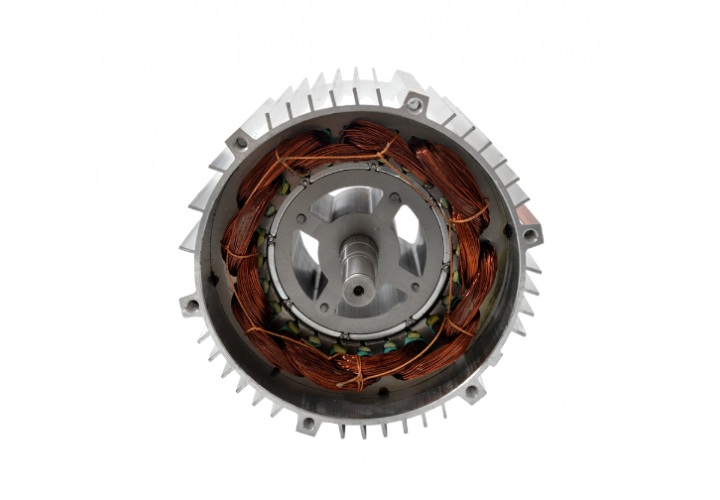

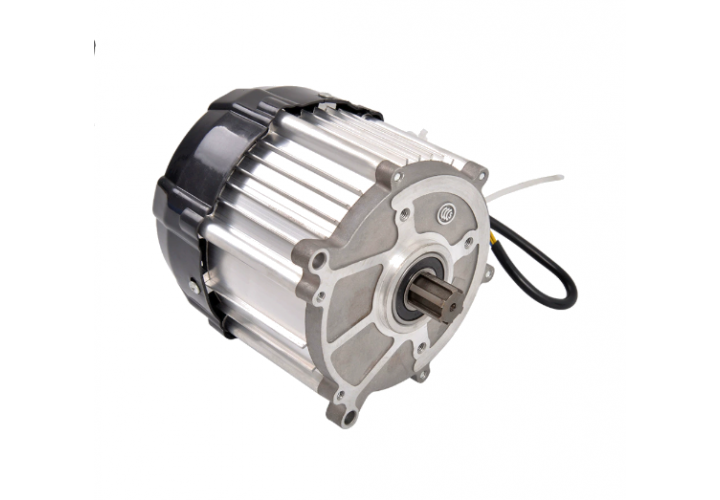

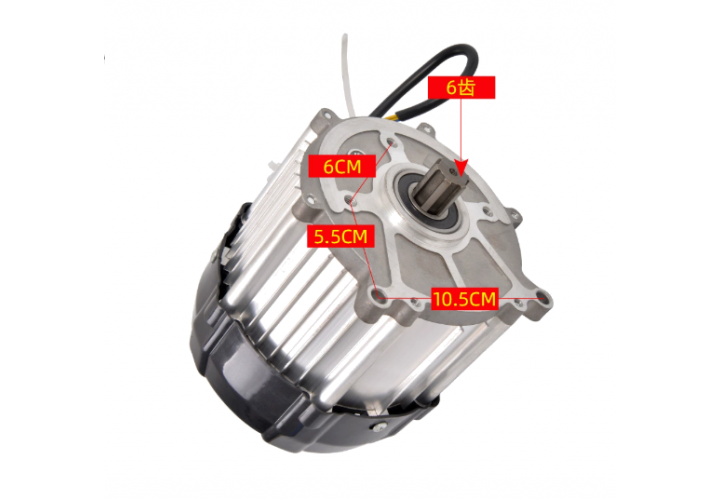

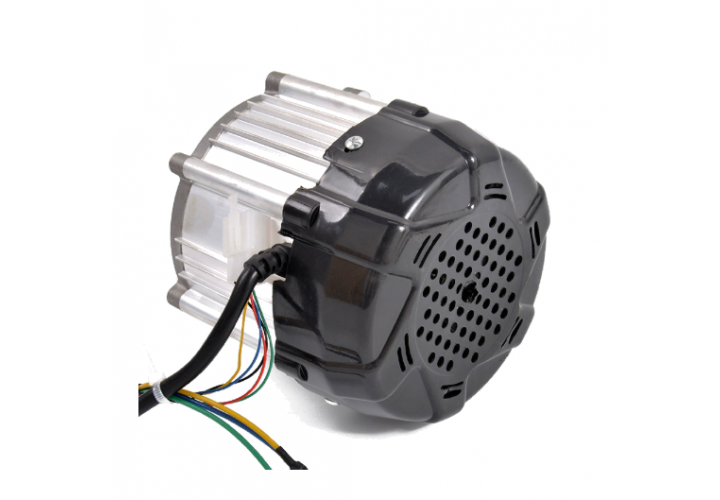

This is a brushless DC (BLDC) differential motor built for electric bicycles, light e-tricycles and low-speed electric vehicles. It uses a copper-core chain-drive differential and runs on a 48 V or 60 V DC system. The same motor is offered in four power ratings from 500 W up to 800 W, so a single compact housing covers light-duty and medium-duty drivetrains alike. Select the rating that matches your load and slope requirement — pricing scales with power as shown in the Spec & Price Options table below.
Brand-neutral listing — no supplier or company name is shown on the product or its firmware.
• Brushless DC motor — high efficiency, low maintenance, long service life compared with brushed units.
• Differential chain output — copper-core winding with a chain-drive differential for stable, low-speed traction.
• Dual voltage 48 V / 60 V — one motor covers common 48 V and 60 V battery packs.
• Four power options (500–800 W) — scale torque and speed to your application without changing the housing.
• CCC certified (China Compulsory Certification, No. 2020980401000138).
• Compact & light — only ~5 kg net, easy to install and ship.
• Samples ship with open-source firmware — no company name is displayed.
| Parameter | Value |
Motor type | Brushless DC (BLDC), differential (chain drive) |
Current type | DC |
Rated voltage | 48 V / 60 V |
Rated power | 500 W / 600 W / 700 W / 800 W (selectable) |
No-load speed | 3200 rpm |
Rated current | 13 A |
Certification | CCC (3C), No. 2020980401000138 |
Net weight | ~5 kg |
Applications | E-bike, light e-tricycle, low-speed EV |
The motor is supplied in the following power and voltage combinations. The list price (US$) for each variant is derived from the supplier cost using the same ~1.5× cost-to-price margin applied to the base 500 W unit (US$ 45.67, taken directly from your upload sheet). 48 V and 60 V versions share the same price per power level.
| Model code | Rated power | Rated voltage | No-load speed | Rated current | List price (US$) |
120-48V-500W | 500 W | 48 V | 3200 rpm | 13 A | $45.9 |
120-60V-500W | 500 W | 60 V | 3200 rpm | 13 A | $45.9 |
120-48V-600W | 600 W | 48 V | 3200 rpm | 13 A | $49.9 |
120-60V-600W | 600 W | 60 V | 3200 rpm | 13 A | $49.9 |
120-48V-700W | 700 W | 48 V | 3200 rpm | 13 A | $54.9 |
120-60V-700W | 700 W | 60 V | 3200 rpm | 13 A | $54.9 |
120-48V-800W | 800 W | 48 V | 3200 rpm | 13 A | $58.9 |
120-60V-800W | 800 W | 60 V | 3200 rpm | 13 A | $58.9 |
Note: All US price ($45.67) is taken directly from your upload sheet.
• Electric bicycles — reliable low-speed city and campus e-bikes.
• Light e-tricycles — cargo and passenger three-wheelers.
• Low-speed electric vehicles — neighborhood / shuttle EVs.
• One housing, four power levels — simplify your spare-parts inventory.
• Differential chain output keeps traction stable at low speed and through turns.
• Brushless design cuts maintenance versus brushed motors.
• CCC-certified for compliant domestic and export builds.
• Light (~5 kg) yet built for continuous duty.
• Net weight: ~5 kg (gross ~5.5 kg with packaging).
• MOQ: 1 unit (source listing); bulk discounts available from the supplier.
• Lead time: ships within ~3 days for small orders (per source listing).
• How to order: pick your required power and voltage (500 W / 600 W / 700 W / 800 W, 48 V or 60 V) from the Spec & Price Options table, then contact us with the model code.
Samples ship with open-source firmware and carry no company branding.
