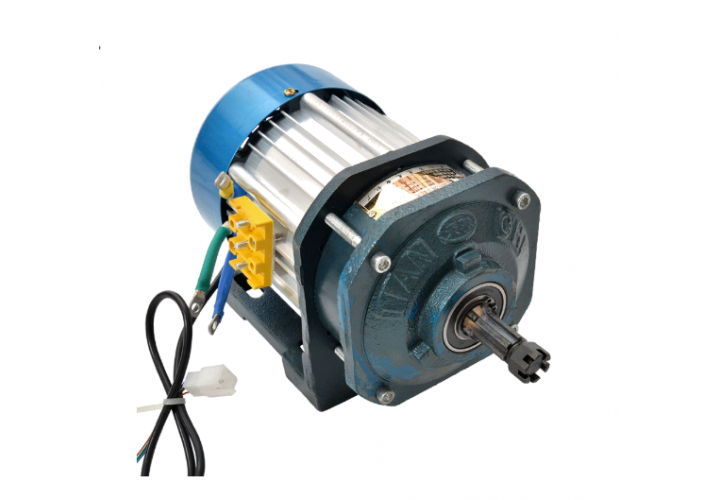

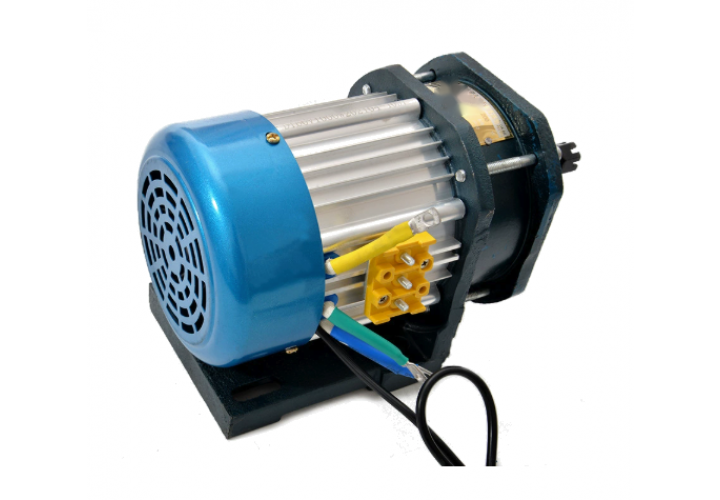

This is a brushless DC (BLDC) center-mounted differential motor built for electric tricycles, low-speed EVs, mobility/senior cars, sanitation vehicles and sightseeing carts. It uses a copper-core differential and runs on a 48 V DC system at a rated 2000 W output with 3200 rpm no-load speed. The unit is CCC certified and ships as a single heavy-duty configuration — other voltage/power options can be quoted on request.
Brand-neutral listing — no supplier or company name is shown on the product or its firmware.
• Brushless DC motor — high efficiency, low maintenance, long service life compared with brushed units.
• Center differential output — copper-core winding with a built-in differential for stable cornering on three-wheelers.
• 48 V DC system — matches common 48 V battery packs for tricycles and utility vehicles.
• 2000 W rated power — strong torque for cargo and passenger heavy-duty use.
• CCC certified (China Compulsory Certification, No. 2020980401000138).
• Compact & light — only ~5 kg net, easy to install and ship.
• Samples ship with open-source firmware — no company name is displayed.
| Parameter | Value |
|---|---|
| Motor type | Brushless DC (BLDC), center differential |
| Current type | DC |
| Rated voltage | 48 V |
| Rated power | 2000 W |
| No-load speed | 3200 rpm |
| Rated current | 41 A |
| Certification | CCC (3C), No. 2020980401000138 |
| Net weight | ~5 kg |
| Applications | E-tricycle, low-speed EV, senior/mobility car, sanitation vehicle, sightseeing cart |
The motor is supplied in the following configuration. The list price (US$ 223.88) is taken directly from your upload sheet (supplier cost ¥1000 converted to USD at the same ~1.5× cost-to-price margin). Additional voltage/power variants are available on request and will be quoted separately.
| Model code | Rated power | Rated voltage | No-load speed | Rated current | List price (US$) |
|---|---|---|---|---|---|
| 128-48V-2000W | 2000 W | 48 V | 3200 rpm | 41 A | $223.9 |
Note: The US223.88) is taken directly from your upload sheet. Only the 48 V / 2000 W configuration is published on the source listing; other ratings can be quoted on request.
• Electric tricycles — cargo and passenger three-wheelers.
• Low-speed electric vehicles — neighborhood / campus EVs.
• Senior & mobility cars — gentle, reliable low-speed drivetrains.
• Sanitation & utility vehicles — sweepers, compact service carts.
• Sightseeing carts — tourist shuttles in parks and scenic areas.
• Center differential output keeps both rear wheels stable through turns.
• 2000 W output handles heavy cargo and slopes with margin.
• Brushless design cuts maintenance versus brushed motors.
• CCC-certified for compliant domestic and export builds.
• Light (~5 kg) yet built for continuous heavy-duty duty.
• Net weight: ~5 kg (gross ~5.5 kg with packaging).
• MOQ: 1 unit (source listing); bulk discounts available from the supplier.
• Lead time: ships within ~3 days for small orders (per source listing).
• How to order: contact us with the model code (128-48V-2000W). For other voltage/power ratings, request a quote.
Samples ship with open-source firmware and carry no company branding.
