12S 120A ESC 4in1 STM32G071GBU6 (NDAA compliance)

FPV Electronics > ESC (Electronic Speed Controllers)

$119.00
$129.00
All imported components, NDAA compliant export requirements. Designed for 4S-12S operation with industrial-grade Infineon MOSFETs and TI driver for ultra‑stable performance.
SKU: 22111
Package weight: 0.20 KG
IN STOCK
To Wishlist
Add to Cart



12S 120A ESC 4in1 STM32G071GBU6 (NDAA compliance) Product Specifications

All imported components, NDAA compliant export requirements. Designed for 4S-12S operation with industrial-grade Infineon MOSFETs and TI driver for ultra‑stable performance.

1. Key Electrical Parameters

  • • Operating Voltage: 4S-12S

  • • Maximum Current (10 sec): 120A

  • • Continuous Current: 100A

2. Core Components

  • • MCU: G071-32-bit, supports AM32

  • • Driver: Stable TI driver

  • • MOSFET: Industrial-grade Infineon MOSFETs with low internal resistance, low heat generation, ultra-stable operation

3. Design & Construction Features

  • • Current Carrying & Heat Dissipation: Copper bars added on both sides (top and bottom) to increase current carrying capacity while improving heat dissipation speed.

  • • Component Origin: All components are fully imported, compliant with NDAA export requirements.

4. General Description

  • • Compliance: NDAA compliant for export.

  • • Reliability: Ultra-stable operation.

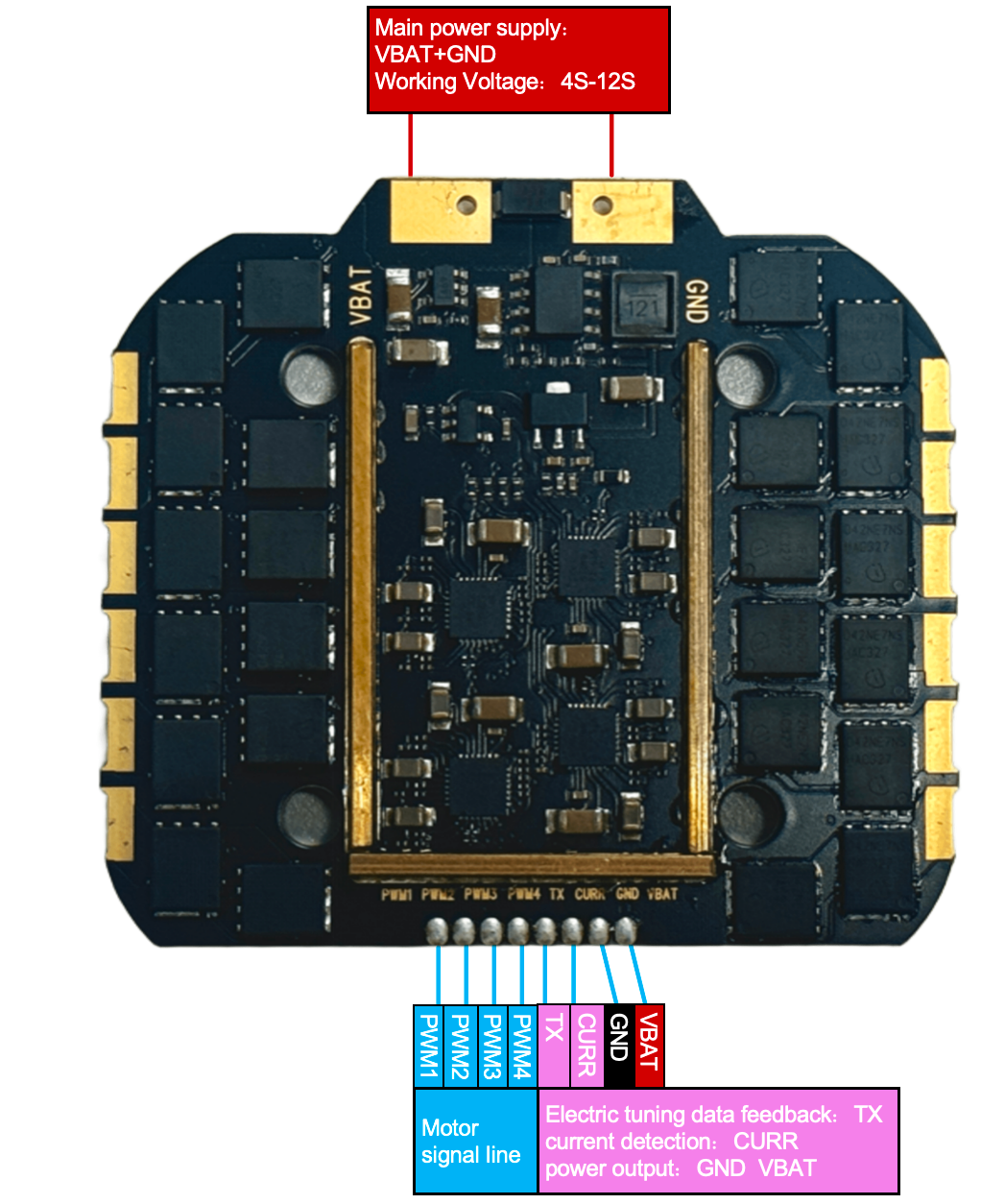

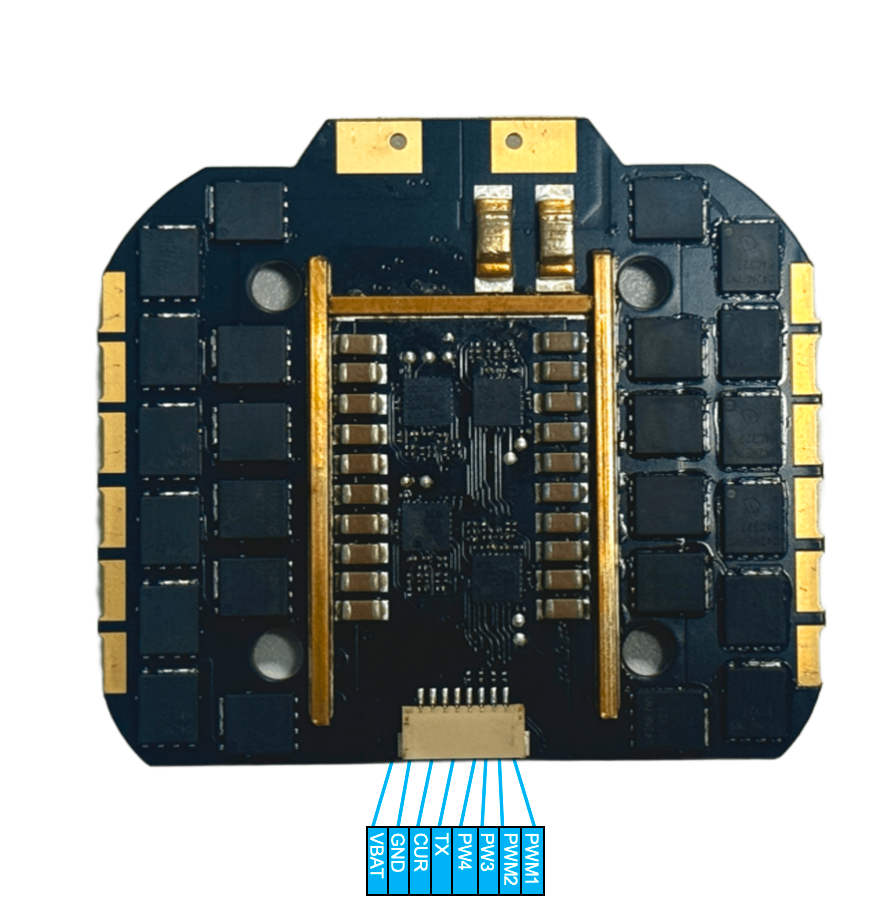

12S 120A-1.png12S 120A-2.png
