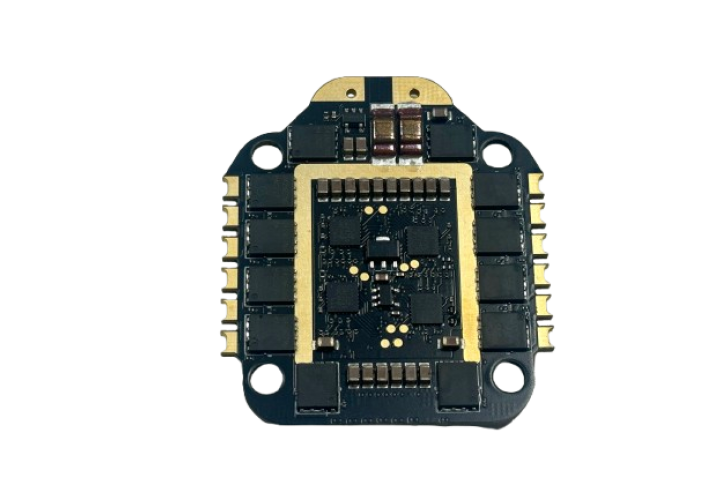

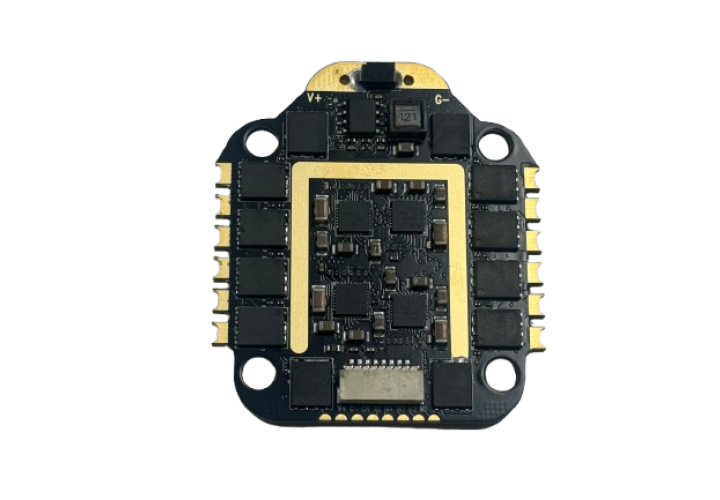

12S 65A ESC 4-in-1 STM32G071GBU6 (NDAA compliance)

FPV Electronics > ESC (Electronic Speed Controllers)

$69.00
$75.00
12S 65A ESC 4-in-1 STM32G071GBU6 (NDAA compliance) , designed for 4-12S FPV drones requiring ultra-fast response and robust power delivery.
SKU: 22061
Package weight: 0.06 KG
Pkg. Size: 85MM*61MM*25MM
IN STOCK
To Wishlist
Add to Cart



12S 65A ESC 4-in-1 STM32G071GBU6 (NDAA compliance)  Technical Brief

Overview

High-performance 4-in-1 electronic speed controller utilizing the STM32G071GBU6, designed for 5-8S FPV drones requiring ultra-fast response and robust power delivery.

1. Core Specifications

ParameterSpecification
MCUSTM32G071GBU6
Continuous Current65A/channel (4-in-1 total 260A)
Instantaneous current65A/channel (10sec)
Input Voltage4S-12S (12.6-33.2V)
PWM Frequency8-48kHz (programmable)
ProtocolsDshot150/300/600/Multishot/Oneshot/PWM
Dimensions54×45×8mm
Board Weight16g

2. Key Features

Power Stage

  • • MOSFETs: 12 * TPHR8504PL (0.7mΩ Rds(on))

  • • Capacitance: 30 * 22UF 35V ceramic capacitors + 1000UF electrolytic capacitor

  • • Power supply: 4 independent power supply LDO, four-way power isolation, ultra-stable operation

  • • Current Sensing: High-precision ammeter, using stable

Control System

  • • MCU Performance:

    • • 120MHz clock speed

    • • Single-cycle 32-bit multiplication

    • • Hardware floating-point unit

  • • Update Rate: 32kHz signal processing

Protections

  • • Overcurrent (Hardware + Software)

  • • Over-temperature (85°C throttle reduction)

  • • Voltage spike protection (40V transient)

  • • Motor short-circuit detection

3. Firmware Details

FeatureImplementation
Base FirmwareAM32_AORC_K_A_F421_2.16.hex
Startup Time<0.5s (from power to ready)
Main default motorFrom 700KV to 3000KV
TelemetryBi-directional DShot (RPM/voltage)
TuningESC-Configurator or Betaflight passthrough

4. Accessories package list

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT60-male 12AWG silicone cable 15cm length

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 5x M3*8mm shock-absorbing ball

5.Connection Diagram
