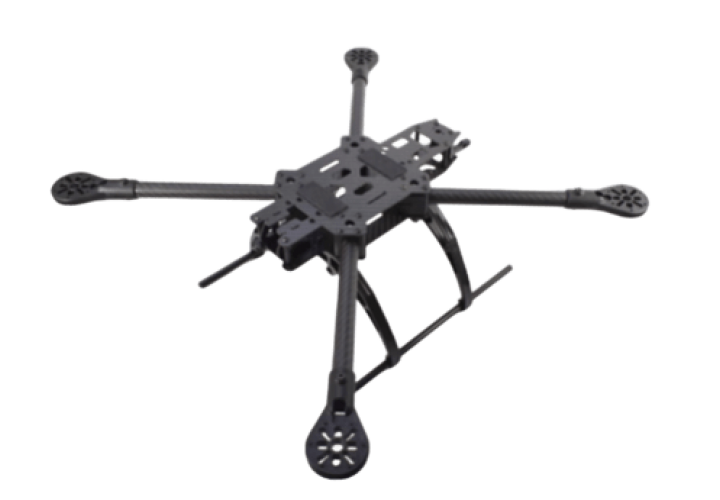

Professional heavy-duty carbon fiber frame engineered for extended endurance missions and high-payload industrial applications. Features aerospace-grade 3K carbon construction with military-grade reinforcement at critical stress points. Optimized for dual-battery configurations and large propulsion systems while maintaining exceptional vibration damping characteristics. Designed for professional cinematography, surveying, and industrial inspection requiring extreme reliability.
| Parameter | Specification Range |
| Wheelbase | 380-460mm (±1.0mm) |
| Frame Type | Extended X / H-Configuration |
| Material | 3K Twill Carbon Fiber (Military-Grade Epoxy) |
| Arm Thickness | 6.0-8.0mm (±0.15mm) |
| Base Plate Thickness | 3.0-4.0mm (Reinforced) |
| Top Plate Thickness | 2.5-3.5mm |
| Stack Height | 35-50mm (Fully Adjustable) |
| FC Mount Pattern | 45.5×45.5mm / 30.5×30.5mm |
| Camera Mount | 30.5mm Standard / DJI X7 |
| Motor Mount Pattern | 25×25mm / 30×30mm / M5 |
| Dry Weight | 380-580g (Frame only) |
• Reinforced Arms: 8mm thickness at motor mounts with vibration-damping geometry
• Dual Battery System: Parallel tray for 2×6S 10,000-20,000mAh Li-ion packs
• Payload Integration: 200×200mm mounting plate for gimbals/LiDAR modules
• Modular Design: Hot-swappable arm system for field repairs
• Industrial Wiring: Shielded cable channels with EMI protection
• Redundant Structure: Quadruple standoffs and titanium hardware
• Aerodynamic Optimization: Airfoil-shaped arms and streamlined body
| Test Metric | Value | Conditions |
| Tensile Strength | 800-880 MPa | ASTM D3039 |
| Torsional Rigidity | 0.45-0.65° deflection at 10N·m | ISO 178 |
| Vibration Damping | 92% reduction @ 50-300Hz | Per ISO 10816-8 |
| Max Payload | 3.5-5.5kg | Includes dual batteries |
| Flight Endurance | 45-75 minutes | With 10,000mAh @ 6S config |
| Crash Survival | 25G impact (5m drop) | MIL-STD-810H Method 516.6 |
• IMAX-grade camera platforms (Red Komodo, Sony Venice)
• Professional gimbal stabilization systems
• Power line monitoring (10km+ range)
• Cellular tower structural analysis
• High-precision LiDAR topography
• Agricultural multispectral imaging
• Emergency payload delivery
• Thermal imaging in disaster zones
• Offshore platform inspections
• Ship-to-shore cargo transfer
• Atmospheric sampling
• Wildlife tracking payloads
• Operating Temp: -30°C to +70°C (Operational at extremes)
• Weather Resistance: IP55-rated (Driving rain/dust protected)
• UV Stability: ≤1.5% material fatigue after 1000hrs exposure
• Chemical Resistance: Resists marine salt, industrial solvents
• Humidity Tolerance: 200hrs @100% RH (Marine environment tested)
• Storage Conditions: -40℃ ~ +70℃, <90% RH
