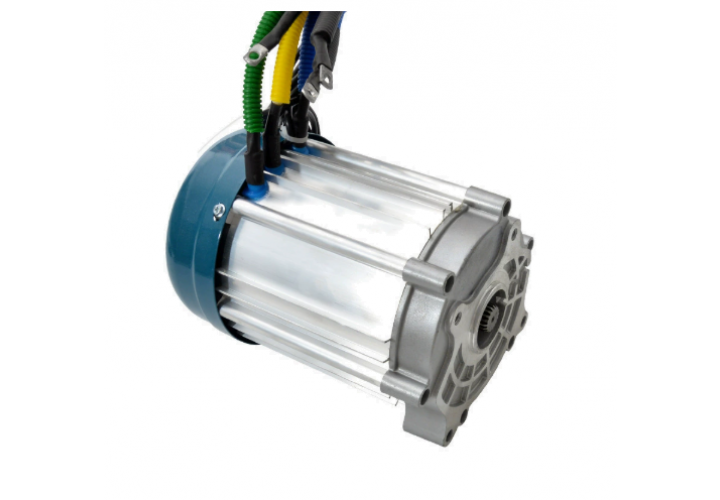

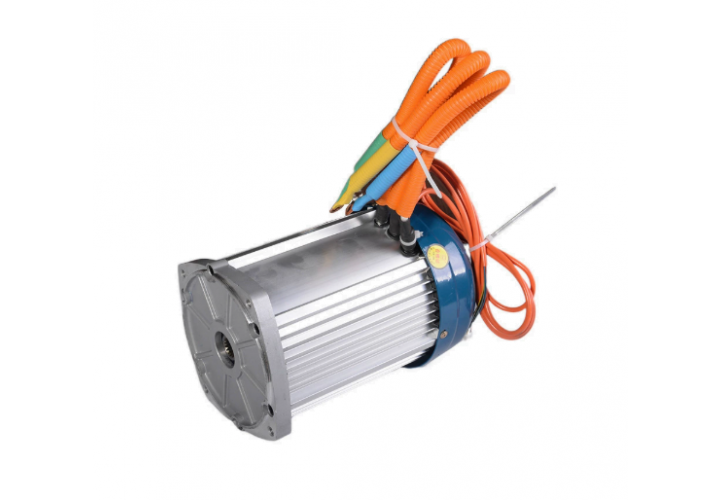

This is a brushless DC (BLDC) center-mounted differential motor built for electric tricycles, low-speed EVs, mobility/senior cars, sanitation vehicles and sightseeing carts. It uses a 5-hole, 18-tooth differential gear and runs on a 60–72 V DC system. The same motor is offered in seven power ratings from 1500 W up to 3500 W, so a single housing fits light-duty and heavy-duty drivetrains alike. Select the rating that matches your load and slope requirement — pricing scales with power as shown in the Spec & Price Options table below.
Brand-neutral listing — no supplier or company name is shown on the product or its firmware.
• Brushless DC motor — high efficiency, low maintenance, long service life compared with brushed units.

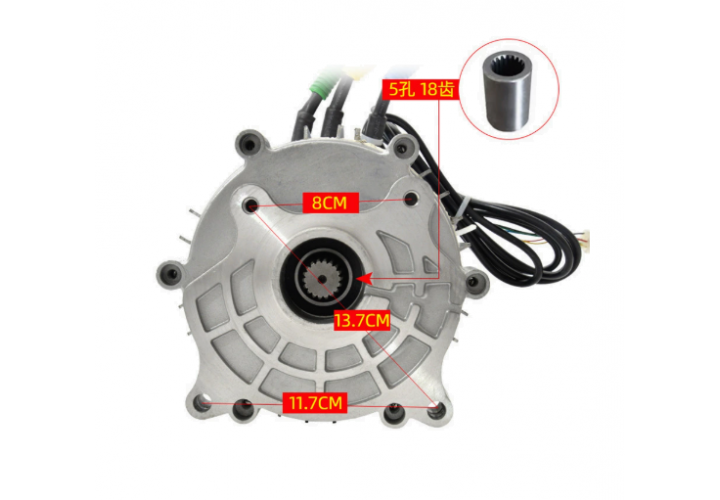

• Differential output — 5-hole mounting with an 18-tooth gear, built for stable cornering on three-wheelers.
• Wide voltage range 60–72 V — one motor covers common 60 V / 72 V battery packs.
• Seven power options (1500–3500 W) — scale torque and speed to your application without changing the housing.
• CCC certified (China Compulsory Certification, No. 2020980401000138).
• Compact & light — only ~5 kg net, easy to install and ship.
• Samples ship with open-source firmware — no company name is displayed.
| Parameter | Value |
Motor type | Brushless DC (BLDC), differential |
Current type | DC |
Rated voltage | 60–72 V |
No-load speed | 3200–3600 rpm (3200 rpm at 3500 W) |
Mounting | 5-hole |
Gear | 18-tooth (differential) |
Certification | CCC (3C) |
Net weight | ~5 kg |
Applications | E-tricycle, low-speed EV, senior/mobility car, sanitation vehicle, sightseeing cart |
The motor is supplied in the following power ratings. The list price (US$) for the base 1500 W unit is taken directly from your upload sheet; the other figures apply the same ~1.5× cost-to-price margin.
Model code | Rated power | No-load speed | Rated voltage | Rated current | List price (US$) |
1.2320060-72*1500 | 1500 W | 3200–3600 rpm | 60–72 V | 25 A | $122.69 |
1.2320060-72*1800 | 1800 W | 3200–3600 rpm | 60–72 V | 30 A | $127.58 |
1.2320060-72*2000 | 2000 W | 3200–3600 rpm | 60–72 V | 33 A | $132.50 |
1.2320060-72*2500 | 2500 W | 3200–3600 rpm | 60–72 V | 41 A | $142.35 |
1.2320060-72*3000 | 3000 W | 3200–3600 rpm | 60–72 V | 50 A | $146.33 |
1.2320060-72*3200 | 3200 W | 3200–3600 rpm | 60–72 V | 53 A | $155.99 |
1.2320060-72*3500 | 3500 W | 3200 rpm | 60–72 V | 58 A | $170.78 |
Note: The 1500 W variant's US122.69) is taken directly from your upload sheet. The other US$ figures are estimated at the same cost-to-price ratio (≈1.5×) — adjust if your margin policy differs.
• Electric tricycles — cargo and passenger three-wheelers.
• Low-speed electric vehicles — neighborhood / campus EVs.
• Senior & mobility cars — gentle, reliable low-speed drivetrains.
• Sanitation & utility vehicles — sweepers, compact service carts.
• Sightseeing carts — tourist shuttles in parks and scenic areas.
• One housing, seven power levels — simplify your spare-parts inventory.
• Differential output keeps both rear wheels stable through turns.
• Brushless design cuts maintenance versus brushed motors.
• CCC-certified for compliant domestic and export builds.
• Light (~5 kg) yet built for continuous duty on heavy loads.
• Net weight: ~5 kg (gross ~5.5 kg with packaging).
• MOQ: 1 unit (source listing); bulk discounts available from the supplier.
• Lead time: ships within ~3 days for orders under 2 units (per source listing).
• How to order: pick your required power rating (1500 W – 3500 W) from the Spec & Price Options table, then contact us with the model code.
Samples ship with open-source firmware and carry no company branding.
