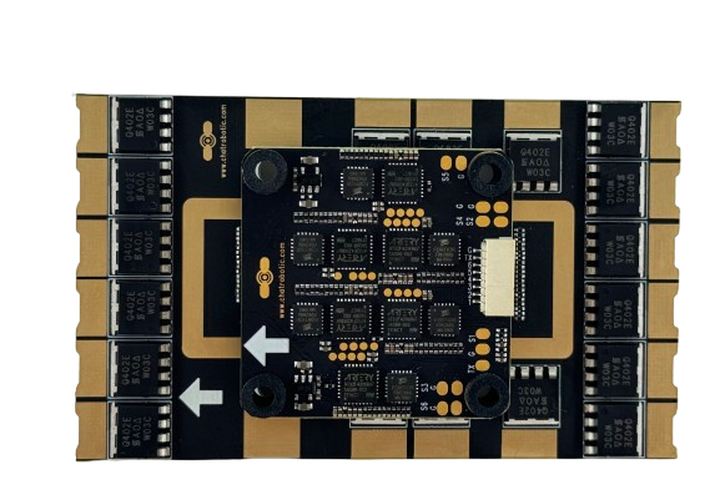

150A 6-Axis ESC 6-in-1 AT32F421K8U7

FPV Electronics > ESC (Electronic Speed Controllers)

$159.00
$169.00
A sophisticated electronic speed controller tailored for comprehensive motor management in hexacopter configurations.
SKU: CRP00891
Package weight: 0.30 KG
Pkg. Size: 105MM*75MM*25MM
IN STOCK
To Wishlist
Add to Cart



150A 6-in-1 ESC (AT32F421K8U7) Technical Brief

Overview

Industrial-grade 6-axis electronic speed controller designed for heavy-lift drones and high-performance UAVs, featuring the AT32F421K8U7 Cortex-M4 MCU with advanced power management capabilities.

1. Core Specifications

ParameterSpecification
MCUAT32F421K8U7 (120MHz Cortex-M4)
Continuous Current

120A/channel (6× parallel)

Peak Current150A/channel (10sec)
Input Voltage2-8S (12.6-33.6V)
Dimensions85×52×15mm
Weight45g

2. Key Features

Power Architecture

  • • MOSFET Array: 36x SQJQ402E Automotive N-Channel 40 V (D-S) 175 °C MOSFET 1.7mΩ

  • • Capacitance: 46×220μF X7R ceramic + 1×1000μF Aluminum Electrolytic Capacitor

  • • Current Sensing: 6-shunt isolated sensing (±0.5% accuracy)

Thermal Management

  • • Integrated copper baseplate

  • • Temperature monitoring on all power stages

3. Firmware Details

FeatureImplementation
Base FirmwareAM32_K_A_F421.hex
Startup AlgorithmsAdaptive ramp-up for heavy propellers
TelemetrySupports two-way DSHOT
DiagnosticsStall protection, high temperature protection.

4. Accessories Package

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT60-male 12AWG silicone cable 15cm length

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 5x M3*8mm shock-absorbing balls

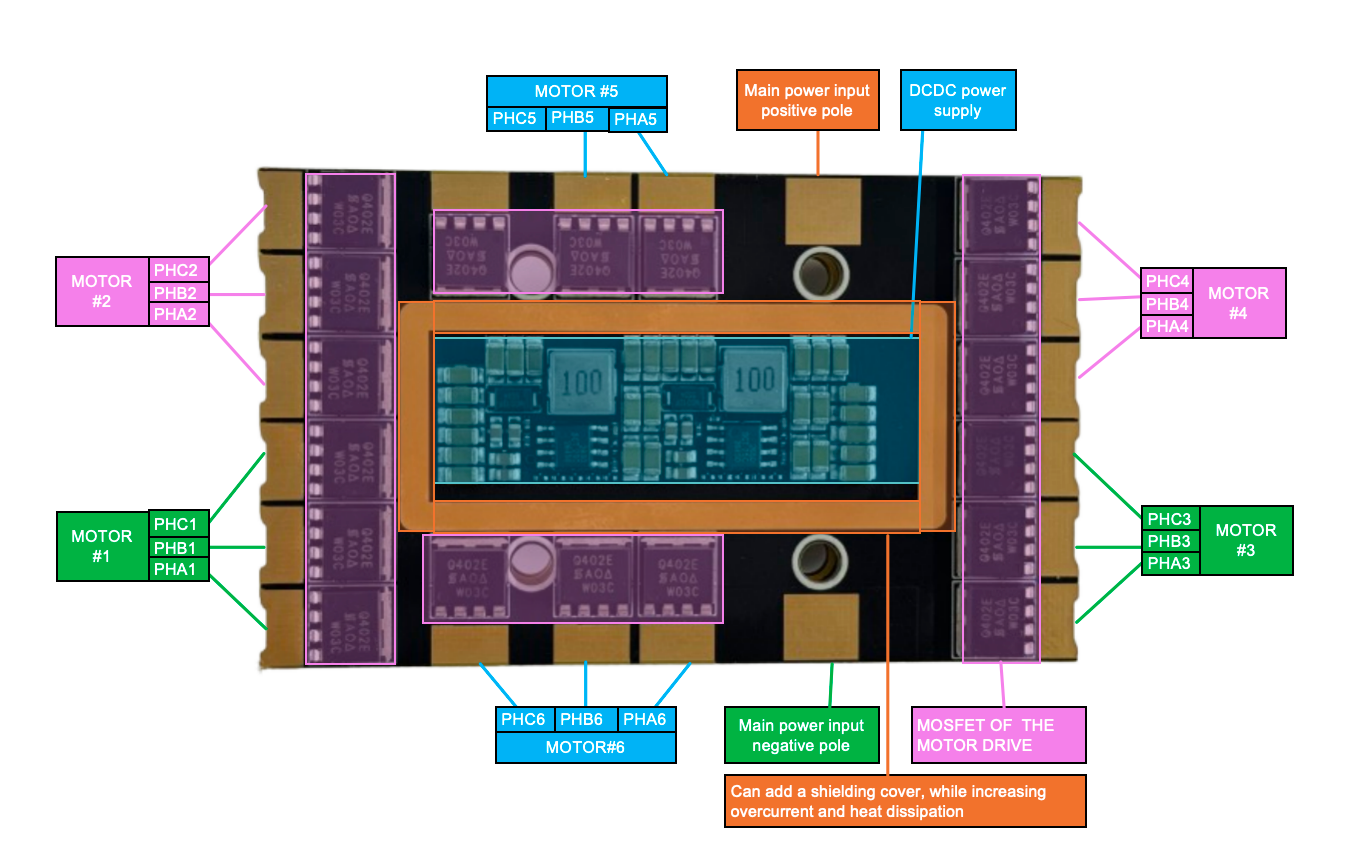

5. Connection Diagram
