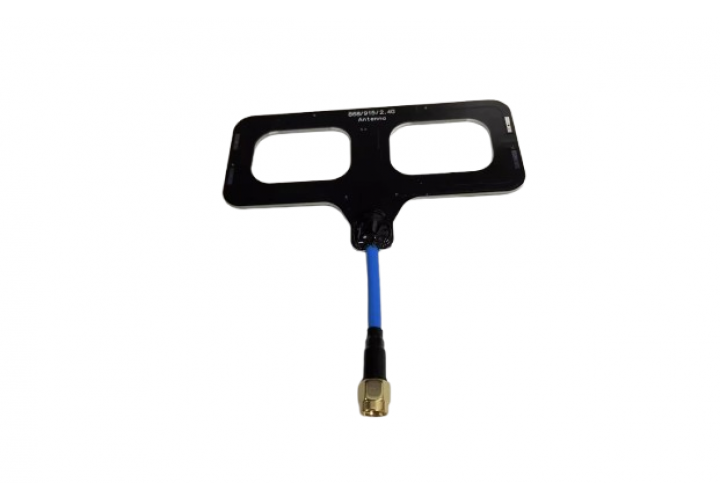

2.4G ELPS High-Frequency Head Antenna-11cm

Accessories > Antenna

$8.90
The 2.4G ELPS High-Frequency Head Antenna delivers tri-band (868MHz/915MHz/2.4GHz) performance for remote control range extension in drone and RC systems.
SKU: 43031
Package weight: 0.02 KG
2.4G ELPS High-Frequency Head Antenna-11cm:
Socket-Type Connector Pin-Type Connector
IN STOCK
To Wishlist
Add to Cart



2.4G ELPS High-Frequency Head 868/915/2.4G Remote Control Range Extender Antenna Specifications

Descriptions

The ELPS High-Frequency Head Antenna delivers tri-band (868MHz/915MHz/2.4GHz) performance for remote control range extension in drone and RC systems. Engineered with precision-tuned elements and a compact omnidirectional design, it enhances signal stability and reduces interference for long-range operations. The antenna's weather-resistant construction ensures reliable performance in diverse environments, making it ideal for FPV racing, industrial drones, and telemetry applications requiring extended control range.

1. Main Specifications

ParameterSpecification
Frequency Bands868 MHz / 915 MHz / 2400-2483 MHz
PolarizationVertical
Gain2.15 dBi (868/915MHz) / 6 dBi (2.4GHz)
VSWR≤1.5 (All bands)
Impedance50 Ω
Max Input Power20W
Connector TypeSMA/IPEX1 (TBS module compatible)
Cable Length100mm RG178
Weight18g
DimensionsØ13mm × 153mm (Diameter × Height)

2. Key Features

  • • Tri-Band Support: Seamless operation across 868MHz, 915MHz, and 2.4GHz frequencies :cite[3]:cite[5]

  • • Omnidirectional Pattern: 360° coverage for flexible device orientation :cite[5]

  • • High Power Handling: Supports up to 20W transmission power :cite[1]:cite[4]

  • • Lightweight Design: Compact form factor minimizes drone payload impact :cite[3]

  • • Universal Compatibility: Optimized for TBS Crossfire, ExpressLRS, and similar modules :cite[3]

3. Performance Data

Range Efficiency (Line-of-Sight)

FrequencyRangeRX SensitivityEnvironment
868 MHz8 km-112 dBmOpen field
915 MHz7.5 km-110 dBmLow-density urban
2.4 GHz3 km-105 dBmForest

4. Recommended Applications

🚁 Drone & RC Systems

  • • Long-range FPV drones (e.g., TBS Crossfire/ExpressLRS setups) :cite[3]

  • • Industrial inspection UAVs requiring >5km control range

  • • Telemetry data links for agricultural drones

📶 Ground Control Stations

  • • Remote transmitter modules :cite[1]

  • • Drone relay base stations

  • • Wireless sensor networks (868/915MHz bands) :cite[5]

⚡ Specialized Scenarios

  • • Mountainous terrain exploration

  • • Maritime surveillance systems

  • • Search and rescue operations

5. Environmental Characteristics

  • • Operating Temp: -40°C to +70°C :cite[5]

  • • Weather Resistance: IP54-rated (Dust/splash proof)

  • • UV Resistance: 500+ sun hours without degradation

  • • Vibration Resistance: 15G @ 10-500Hz
