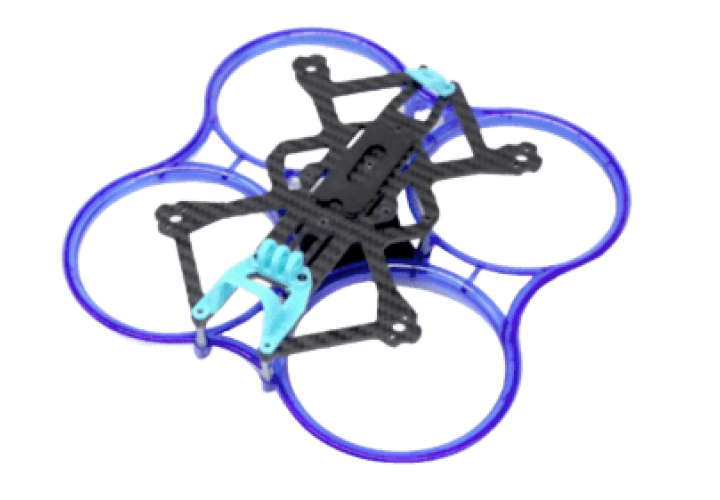

Ultra-lightweight 3K carbon fiber frame optimized for indoor/outdoor freestyle and racing applications. Features a robust unibody design with integrated duct protection for enhanced crash resilience. Precision-engineered for agile maneuvering in tight spaces while supporting modern digital HD systems and micro electronics. Ideal for high-thrust micro builds requiring maximum durability in confined environments.
| Parameter | Specification Range |
| Wheelbase | 120-150mm (±0.5mm) |
| Frame Type | Unibody X (Integrated ducts) |
| Material | 3K Twill Carbon Fiber (Epoxy Resin) |
| Arm Thickness | 3.0-3.5mm (±0.05mm) |
| Base Plate Thickness | 1.5-2.0mm |
| Duct Thickness | 4.0mm (Impact zones) |
| Stack Height | 15-20mm (Fixed) |
| FC Mount Pattern | 20×20mm / 25.5×25.5mm |
| Camera Mount | 14/19mm Nano/Micro |
| Motor Mount Pattern | 9×9mm / 12×12mm / M2 |
| Dry Weight | 28-42g (Includes ducts) |
• Duct-Guarded Arms: Integrated 4mm propeller guards for wall/crash protection
• Unibody Construction: Single-piece carbon fiber skeleton eliminating weak joints
• Digital HD Ready: Low-profile camera cage for nano-sized Caddx/Runcam systems
• Battery Tray: Secure sliding bay for 2S-4S 450-850mAh LiPos
• Vibration Isolation: Soft-mount FC stack with TPU damper system
• LED Integration: Perimeter lighting channels for orientation tracking
• Tool-less Assembly: Snap-fit duct covers and slide-lock components
| Test Metric | Value | Conditions |
| Impact Resistance | 8G sustained impact (1.5m drop) | ASTM D7136 |
| Frame Resonance | <0.3g vibration @ 100Hz | Per ISO 10816-3 |
| Thrust-to-Weight | 8:1 (with 1404 5000KV motors) | Static thrust test |
| Duct Efficiency | 15% thrust gain vs open prop | Wind tunnel verified |
| Max Payload | 80-150g | Includes battery & HD cam |
| Crash Survival | 200+ collisions (concrete) | Field endurance testing |
• Indoor drone leagues (MultiGP Tiny Class)
• Parking garage time trials
• Technical trick execution (power loops, rubiks)
• Tight gap exploration
• Real estate walkthroughs
• Event venue coverage
• Safe classroom drone building
• Programming tutorials (Betaflight)
• Disaster zone reconnaissance
• Pipe/ventilation inspection
• Operating Temp: -10°C to +50°C (Performance optimized 15-35°C)
• Weather Resistance: IP42 dust/moisture protection
• UV Stability: ≤5% material fatigue after 300hrs exposure
• Chemical Resistance: Withstands household cleaners
• Humidity Tolerance: 72hrs @90% RH
• Storage Conditions: -20℃ ~ +40℃, <65% RH
