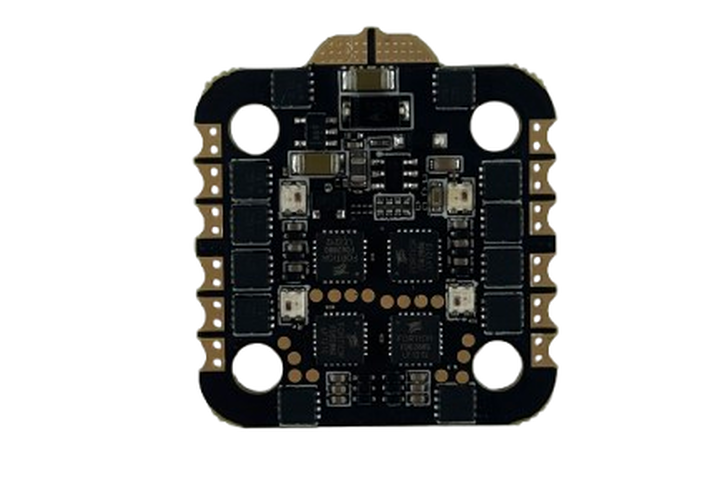

30A Mini ESC 4 in 1 AT32F421K8U7 20x20

FPV Electronics > ESC (Electronic Speed Controllers)

$25.90
$35.90
The 30A F421 Mini ESC AT32F421K8U7 is a compact electronic speed controller designed for high-performance RC models and small-scale robotics.
SKU: CRP00863-30A
Package weight: 0.10 KG
Pkg. Size: 85MM*61MM*25MM
IN STOCK
To Wishlist
Add to Cart



F421 Mini ESC AT32F421K8U7 20x20 Technical Brief

Descriptions

The F421 Mini ESC is a compact electronic speed controller designed for high-performance RC models and small-scale robotics. Built around the AT32F421 microcontroller (ARM Cortex-M4 @ 120MHz), it delivers precise motor control with adaptive torque management, ideal for crawlers, drones, and industrial micro-machines requiring dynamic power regulation.

1. Main Specifications

ComponentDetails
ProcessorAT32F421 (Cortex-M4 @ 120MHz, FPU)
Memory64KB SRAM + 256KB Flash
Input Voltage2S-8S LiPo (7.4V-25.2V)
Continuous Current30A (Peak 80A for 10s)
BEC Output5V@3A (Switch-mode)
PWM Frequency8kHz-32kHz (Adjustable)
Dimensions30×20mm (20×20mm mounting)
Weight6.5g

2. Key Features

  • • Hybrid Drive: Sine+Square wave modulation for torque efficiency and smooth low-speed control

  • • High-Speed ADC: 2Msps sampling enables real-time current/temperature monitoring

  • • Adaptive Overcurrent Protection: Built-in comparator with <1μs response time

  • • Dual Telemetry: Supports DShot600 and Analog RPM feedback

  • • Base Firmware：AM32_  K _A_F421.hex

🚁 Micro Drones:

  • • 32kHz PWM mode for ultra-low latency

🤖 Robotics:

  • • Precision servo-like control for robotic arms

⚙️ Industrial Tools:

  • • High-efficiency drives for CNC spindles

3. Accessories Package

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT30-male 14AWG silicone cable 10cm length

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 5x M3*8mm shock-absorbing balls

4. Connection Diagram
