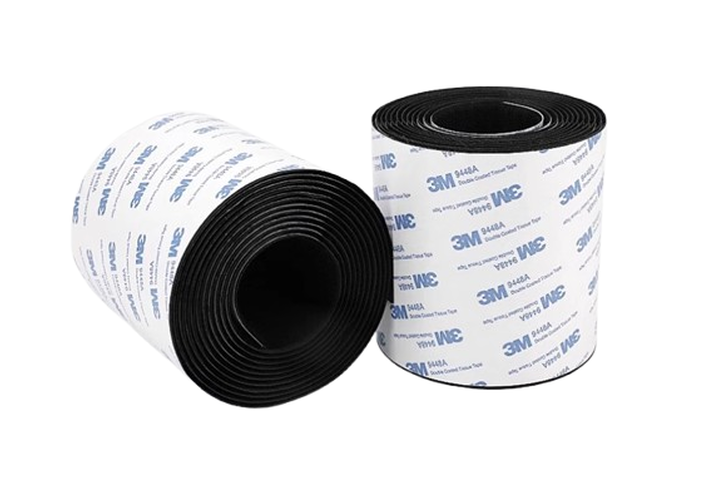

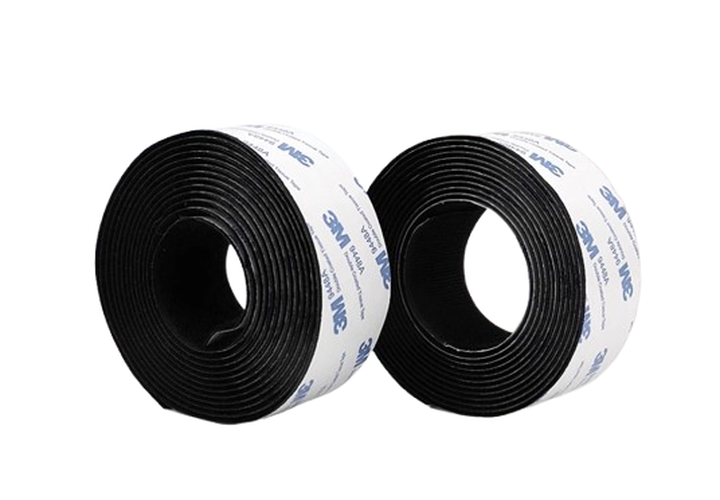

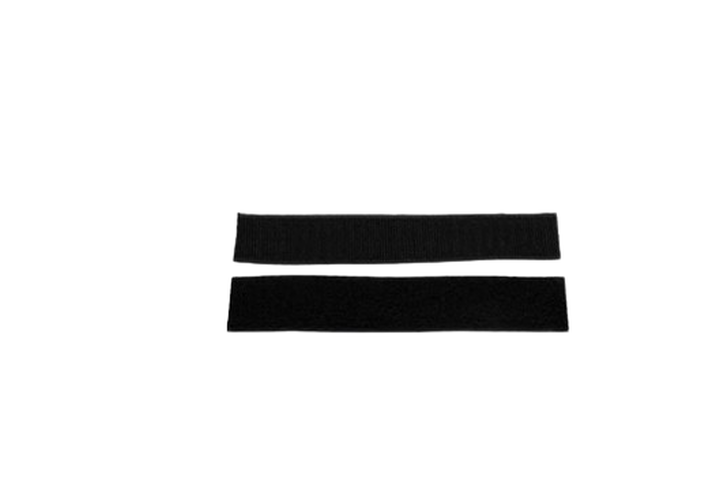

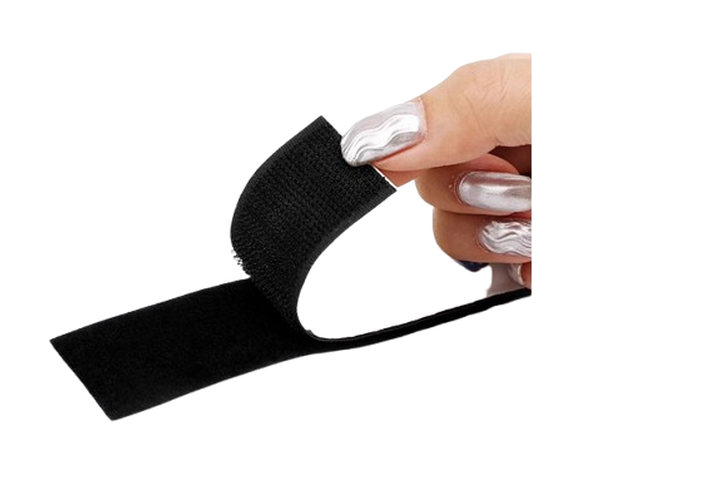

The 3M Dual-Sided Adhesive Hook and Loop Tape features industrial-strength acrylic adhesive backing for permanent mounting applications in drone customization, automotive installations, and equipment organization. Engineered with precision-matched hook and loop components on separate 3-meter rolls, it provides exceptional shear strength and vibration resistance. This tape's combination of reliable adhesion and repositionable fastening makes it ideal for mounting electronics, securing cables, and creating modular attachment systems requiring frequent access.
| Parameter | Specification |
| Material Type | Nylon Hook & Polyester Loop |
| Tape Width | 2.0cm ±0.1cm |
| Roll Length | 3m Hook + 3m Loop (±1%) |
| Adhesive Type | 3M™ Acrylic (Dual-Sided) |
| Adhesive Thickness | 0.25mm |
| Total Thickness | 1.8mm (Hook), 0.9mm (Loop) |
| Peel Strength | 1.8kg/cm² (Steel Substrate) |
| Shear Strength | 3.5kg/cm² |
| Service Temperature | -40°C to +120°C |
| UV Resistance | 500+ hours weatherability |
| Color | Black |
| Release Liner | Red Polycoated Paper |
• Industrial Adhesion: Permanent acrylic adhesive bonds to most surfaces
• Vibration Resistance: Maintains hold under 10G vibration loads
• Clean Removal: Leaves no residue on most surfaces when removed
• Waterproof Design: Performs in wet/humid environments (IP67 equivalent)
• Temperature Stable: Maintains adhesion from freezer to engine bay temps
• Precision Cut: Laser-cut edges prevent fraying
• Matched Pair: Optimized hook-to-loop engagement strength
• Reusability: Can be repositioned multiple times without adhesive failure
| Substrate | Peel Strength (kg/cm²) | Shear Strength (kg/cm²) | Recommended Cure Time |
| ABS Plastic | 1.6 | 3.2 | 24 hours |
| Painted Metal | 1.8 | 3.5 | 48 hours |
| Glass | 2.0 | 4.0 | 72 hours |
| Carbon Fiber | 1.5 | 2.8 | 24 hours |
| Wood | 2.2 | 4.2 | 24 hours |
• Battery mounting systems
• FPV camera vibration isolation
• Receiver/antenna securement
• Quick-change payload attachments
• Dashboard electronics mounting
• Wire harness management
• Tool organization in service trucks
• Marine electronics installations
• Control panel component mounting
• Cable management in enclosures
• Temporary sign mounting
• Safety equipment holders
• Cable organizers under desks
• Wall-mounted tool holders
• Modular storage solutions
• Temporary holiday decorations
• Velcro patches on gear bags
• Tactical equipment attachment
• Camping gear organization
• Sports protective gear fastening
• Wearable sensor mounting
• Equipment cable routing
• Temporary monitor installations
• Sanitizable tool holders
• Surface Prep: Clean with 70% isopropyl alcohol before application
• Installation Pressure: Apply 2kg/cm² pressure for 30 seconds
• Full Cure Time: 72 hours for maximum bond strength
• Reusability: Up to 100 engage/disengage cycles
• Chemical Resistance: Resists oils, fuels, and cleaning solvents
• Storage Conditions: 15-30°C in original packaging (avoid UV exposure)
• Shelf Life: 24 months from manufacture date
