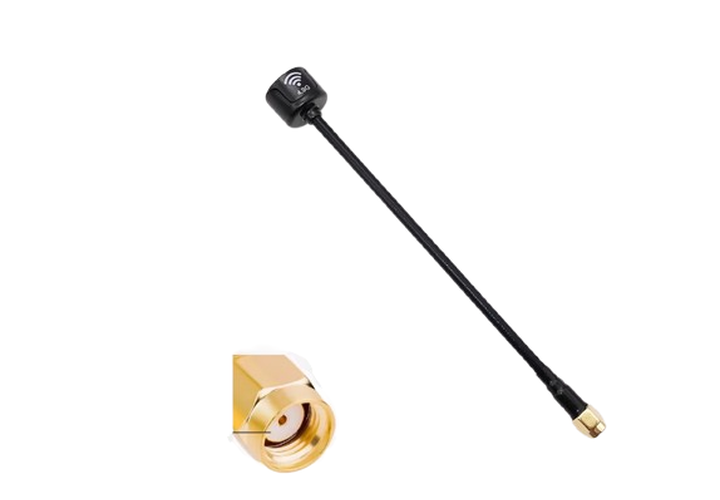

4.9G Lollipop Antenna-10cm

Accessories > Antenna

$5.90
The 4.9G Lollipop Antenna delivers optimized circular polarization performance for FPV drones operating in the 4.9GHz band, providing reduced interference and extended range for competitive racing and long-range exploration.
SKU: 43041
Package weight: 0.02 KG
4.9G Lollipop Antenna-10cm:
Socket-Type Connector Pin-Type Connector
IN STOCK
To Wishlist
Add to Cart



4.9G Lollipop Antenna | FPV Drone Video Transmission Antenna Specifications

Descriptions

The 4.9G Lollipop Antenna delivers optimized circular polarization performance for FPV drones operating in the 4.9GHz band, providing reduced interference and extended range for competitive racing and long-range exploration. Engineered with precision-tuned elements and a robust RHCP design, it ensures reliable signal clarity in congested RF environments. The antenna's compact form factor and weather-resistant construction maintain consistent video quality during high-G maneuvers and adverse conditions:cite[2]:cite[3].

1. Main Specifications

ParameterSpecification
Frequency Range4.900–5.200 GHz
PolarizationRHCP (Right Hand Circular Polarization)
Gain2.8 dBi
VSWR≤1.5
Axial Ratio<3 dB
Connector TypesSMA / RP-SMA / MMCX / UFL
Max Input Power50W
Cable Length15cm RG316 (Low-Loss)
Weight6.3g (105mm variant)
DimensionsØ38mm × 105mm (Diameter × Height)

2. Key Features

  • • Low-Interference Band: Operates in 4.9GHz band (4990–5200MHz) to avoid crowded 5.8GHz spectrum:cite[3]:cite[8]

  • • Dual-Polarization Support: Compatible with RHCP/LHCP systems for flexible pairing

  • • Lightweight Design: Composite housing minimizes drag on micro racing drones:cite[4]

  • • High Power Handling: Supports up to 2.5W VTX systems (e.g., Foxeer Reaper 2.5W):cite[2]

  • • Omnidirectional Coverage: 360° horizontal beam width for agile flight orientations

3. Performance Data

Transmission Efficiency (with 2.5W VTX)

EnvironmentRangeSignal ClarityObstacle Penetration
Open Field3.2 km98%Low
Urban Area1.1 km88%Moderate
Forest650 m80%High
Racing Track400 m96%Low

4. Recommended Applications

🚁 FPV Racing & Long-Range

  • • 4.9GHz analog/digital racing drones (e.g., iFlight BLITZ Whoop):cite[3]:cite[8]

  • • Long-range exploration platforms with >3km range requirements

  • • FPV wings requiring low-interference video transmission

📡 Ground Station Systems

  • • Diversity receivers (e.g., FPVspeed VRX-S1):cite[1]

  • • Foxeer 4.9G goggles with dual-receiver technology:cite[2]

  • • TBS Crossfire/Tracer telemetry systems

⚡ Industrial & Competition

  • • MultiGP events in RF-congested environments

  • • Industrial inspection drones operating near Wi-Fi sources

  • • Agricultural surveying UAVs

5. Environmental Characteristics

  • • Operating Temperature: -40°C to +80°C

  • • Weather Resistance: IPX5-rated (Water-jet protected)

  • • UV Stability: 600+ sun hours without degradation

  • • Impact Resistance: Withstands 100G crashes (PC+ABS construction):cite[4]
