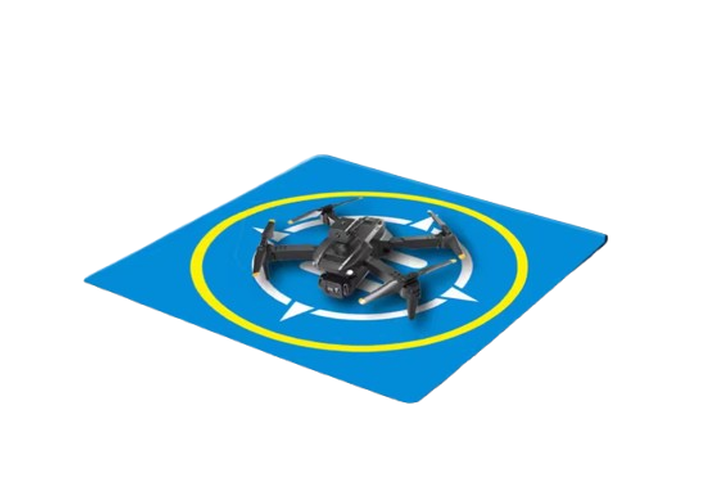

The 40/50cm Square Drone Landing Pad provides a high-visibility, stable landing surface for consumer and professional drones. Featuring a weather-resistant construction with non-slip base and reflective markings, it ensures safe takeoff/landing operations in various terrain conditions. The pad's foldable design and lightweight materials make it ideal for field operations, aerial photography missions, and educational drone training requiring portable landing solutions.
| Parameter | Specification |
| Dimensions | 40×40cm / 50×50cm ±1cm |
| Thickness | 3mm (Center) / 5mm (Edge) |
| Material | 600D PVC Tarpaulin (Top) |
| Base Material | Non-Slip TPE Rubber |
| Weight | 280g (40cm) / 380g (50cm) |
| Color Scheme | High-Visibility Orange/White |
| Reflective Elements | 3M Scotchlite Reflective Strips |
| Wind Resistance | 45km/h (Beaufort 6) |
| Fold Size | 20×20×2cm (40cm pad) |
| Anchor Points | 4 Grommets (8mm) |
| Waterproof Rating | IPX4 (Splash Resistant) |
• All-Terrain Stability: Non-slip TPE base grips grass, sand, and concrete
• High Visibility: Fluorescent orange with contrasting white H-pattern
• Reflective Markings: Night-operable with 200m reflectivity
• Quick Deployment: Unfolds flat instantly with no assembly
• Weather Resistance: UV-treated PVC withstands sun and rain
• Reinforced Edges: Double-stitched binding with corner reinforcements
• Portable Design: Folds compactly with integrated carry strap
• Ground Anchoring: Grommets for stake/tent peg attachment
| Feature | 40cm Pad | 50cm Pad |
| Drone Size Support | <250g drones | <2kg drones |
| Deployment Time | <5 seconds | <5 seconds |
| Wind Stability | 30km/h gusts | 45km/h gusts |
| Reflectivity | 150cd/lx/m² | 180cd/lx/m² |
| Slope Tolerance | 10° incline | 10° incline |
| Cleaning | Wipe or hose | Wipe or hose |
• Consumer drone takeoff/landing reference
• FPV racing launch/land zones
• Drone photography/video base stations
• UAV pilot training targets
• Surveying/mapping mission control points
• Search and rescue landing markers
• Agricultural drone refill stations
• Infrastructure inspection hubs
• STEM drone program landing zones
• Flight school training pads
• Robotics competition landing targets
• Drone coding practice areas
• First responder drone landing sites
• Disaster assessment UAV operations
• Medical delivery landing markers
• Firefighting drone command points
• RC plane takeoff strips
• Drone racing course start/finish
• Outdoor flying club markers
• Park flying safety zones
• Temperature Range: -30°C to +70°C operational
• UV Resistance: 2000+ hours sunlight exposure
• Water Resistance: 1000mm hydrostatic pressure
• Chemical Resistance: Resists fuels, oils, and mild acids
• Abrasion Resistance: 50,000+ rub cycles (Martindale test)
• Storage Conditions: Folded in dry location (-20℃ ~ +50℃)
