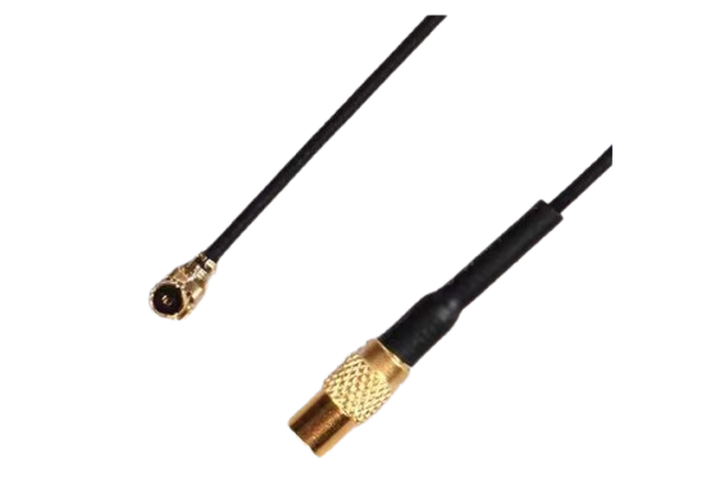

5.8G Antenna Adapter Cable-7cm/9cm

Accessories > Antenna

$2.90
The 5.8G Antenna Adapter Cable provides high-fidelity signal transmission between FPV video transmitters and antennas, engineered with low-loss coaxial technology for minimal signal degradation.
SKU: 43021
Package weight: 0.01 KG
5.8G Antenna Adapter Cable-7cm/9cm:
Socket-Type Connector Pin-Type Connector
IN STOCK
To Wishlist
Add to Cart



5.8G Antenna Adapter Cable | FPV Video Transmission Extension Cable Specifications

Descriptions

The 5.8G Antenna Adapter Cable provides high-fidelity signal transmission between FPV video transmitters and antennas, engineered with low-loss coaxial technology for minimal signal degradation. Featuring precision-machined connectors and shielded construction, it maintains optimal VSWR across the 5.8GHz spectrum while offering flexible mounting solutions. The cable's robust design ensures reliable performance in high-vibration environments, making it essential for racing drones, cinematic FPV rigs, and ground station setups requiring extended antenna placement.

1. Main Specifications

ParameterSpecification
Frequency Range5.150–5.925 GHz
Impedance50 Ω
VSWR≤1.3:1
Insertion Loss<0.3 dB @ 5.8GHz
Cable TypeRG316/U Low-Loss Coaxial
Connector OptionsSMA Male to SMA Female / RP-SMA to SMA
Cable Lengths10cm / 20cm / 30cm / 50cm
Max Power Handling50W
Weight8–25g (Length-dependent)
Bend Radius15mm (Minimum)

2. Key Features

  • • Low Signal Loss: RG316/U cable with <0.3dB attenuation at 5.8GHz

  • • Universal Compatibility: Supports SMA/RP-SMA/MMCX connector combinations

  • • Shielded Construction: Double-braided shielding reduces RF interference by 90%

  • • Flexible Routing: High-flex silicone jacket withstands 5000+ bend cycles

  • • Vibration Resistance: Gold-plated connectors maintain contact under 15G vibration

3. Performance Data

Signal Integrity Metrics

Cable LengthVSWR @ 5.8GHzInsertion LossPhase Stability
10cm1.15:10.15 dB±2°
20cm1.20:10.22 dB±3°
30cm1.25:10.28 dB±4°
50cm1.30:10.35 dB±6°

4. Recommended Applications

🚁 Drone Installations

  • • VTX to antenna connections in cramped drone frames

  • • Diversity receiver setups with multiple antennas

  • • FPV goggle antenna extensions

📡 Ground Station Systems

  • • Tracking antenna rotator systems

  • • Signal booster installations

  • • Portable monitor extension cables

⚙️ Signal Management

  • • Routing antennas away from carbon fiber interference

  • • Custom antenna mounting solutions

  • • Signal testing and measurement setups

5. Environmental Characteristics

  • • Operating Temp: -50°C to +105°C

  • • Weather Resistance: IP67-rated (Submersible to 1m)

  • • UV Resistance: 1000+ sun hours without jacket degradation

  • • Chemical Resistance: Withstands fuels, oils, and common solvents
