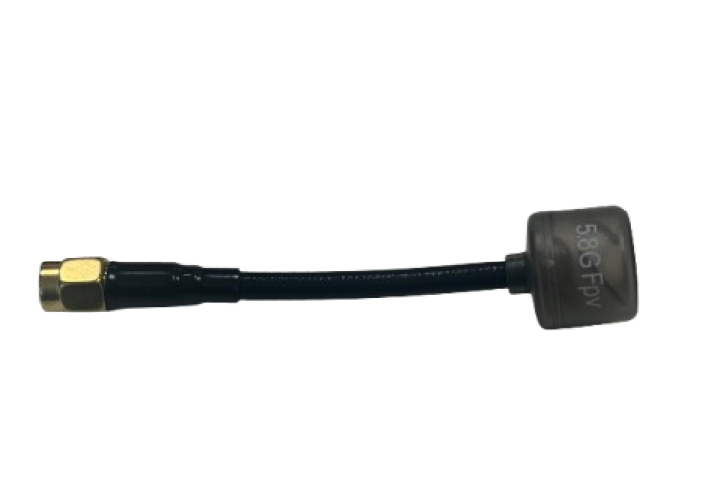

The 5.8G Lollipop Mini 5 Antenna delivers optimized circular polarization performance for FPV video transmission systems in racing drones and ground receivers. Engineered with precision-tuned elements and a compact form factor, it provides reliable signal clarity with reduced multipath interference. The antenna's lightweight design and robust construction ensure consistent video quality during high-G maneuvers and in diverse RF environments, making it ideal for competitive racing and cinematic FPV applications.
| Parameter | Specification |
| Frequency Range | 5.325–5.950 GHz |
| Polarization | RHCP (Right Hand Circular Polarization) |
| Gain | 2.5 dBi |
| VSWR | ≤1.5 |
| Axial Ratio | <3 dB |
| Connector Types | SMA / RP-SMA / MMCX / UFL |
| Max Input Power | 50W |
| Cable Length | 8cm RG316 (Low-Loss) |
| Weight | 5.5–7.1g (Length-dependent) |
| Dimensions | Ø38mm × 60/105/145mm (Diameter × Height) |
• Broadband Tuning: Covers 5.325–5.950 GHz for global FPV channel compatibility
• Lightweight Design: Composite housing reduces drag on micro racing drones
• Multi-Connector Support: Compatible with SMA, RP-SMA, MMCX, and UFL interfaces
• Low VSWR: ≤1.5 minimizes signal reflection and power loss
• Omnidirectional Pattern: 360° horizontal coverage for agile flight orientations
| Environment | Range | Signal Clarity | Obstacle Penetration |
| Open Field | 2.5 km | 98% | Low |
| Urban Area | 800 m | 85% | Moderate |
| Forest | 500 m | 75% | High |
| Racing Track | 300 m | 95% | Low |
• Micro and 5" racing drones (e.g., Whoop-class, MultiGP setups):cite[2]:cite[8]
• Long-range exploration platforms with analog/digital VTX systems
• FPV wings requiring low-profile antennas
• Diversity receivers (e.g., RapidFIRE, TBS Crossfire)
• Portable monitor setups with RP-SMA interfaces
• Drone racing spectator displays
• MultiGP race events demanding low-latency video
• Industrial inspection drones operating in RF-noisy environments
• Educational FPV drone kits
• Operating Temperature: -40°C to +60°C
• Weather Resistance: IPX4-rated (Splash-proof)
• UV Stability: Housing maintains integrity after 500+ sun hours
• Impact Resistance: Withstands 100G crashes (PC+ABS construction)
