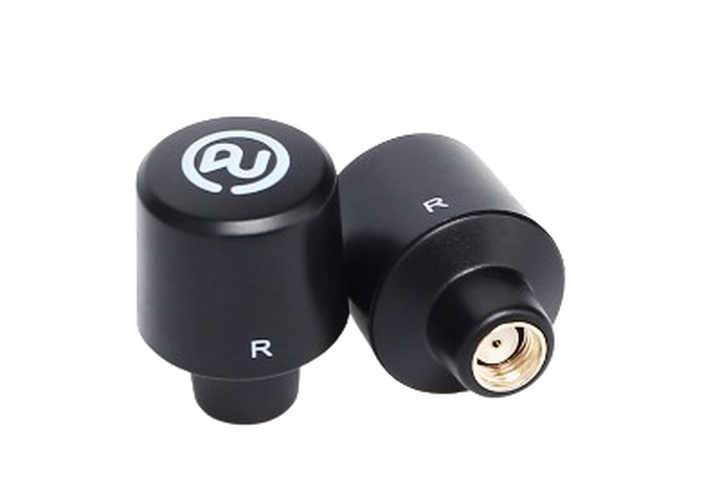

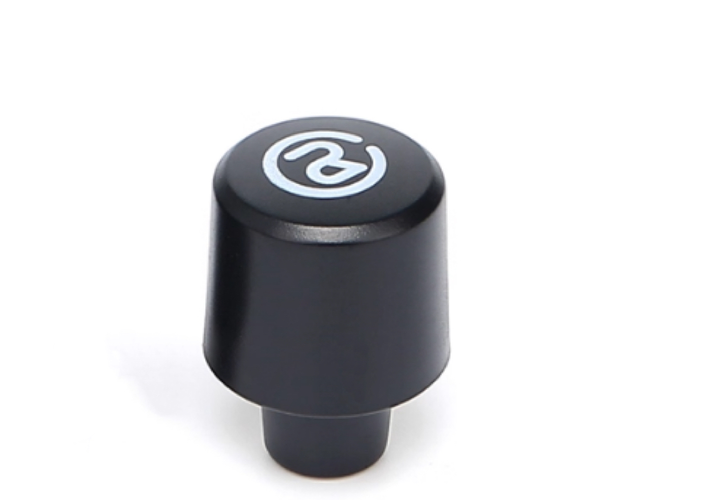

The 5.8G Mushroom 5dBi Antenna is an omnidirectional vertically polarized antenna optimized for FPV drone systems and 5.8GHz wireless video transmission. Featuring a rugged ABS housing and gold-plated SMA connectors, it delivers reliable signal penetration with minimal interference. Engineered for frequencies between 5.15–5.85GHz, this antenna provides enhanced gain and low VSWR for stable long-range communication in industrial, commercial, and recreational applications.
| Parameter | Specification |
| Frequency Range | 5.15–5.85GHz |
| Gain | 5dBi |
| Polarization | Vertical |
| VSWR (Standing Wave) | ≤1.5 |
| Impedance | 50 Ω |
| Max Power Handling | 10W–50W |
| Connector Type | SMA Male (Inner Pin) |
| Cable Length | 78mm (RG141) |
| Dimensions | 95–105mm (L) × 35mm (D) |
| Weight | 11–13g |
• Omnidirectional Radiation: 360° coverage for consistent signal reception in dynamic environments
• Low VSWR Design: ≤1.5 ensures minimal signal reflection and optimal power transfer
• Rugged Construction: ABS housing with IP67-equivalent moisture resistance
• Gold-Plated Contacts: SMA connectors prevent corrosion and maintain signal integrity
• Thermal Resilience: Stable performance across -40°C to +85°C operating temperatures
• Plug-and-Play Compatibility: Direct replacement for routers, FPV transmitters, and wireless receivers
• Dual-Band Support: Optional 2.4GHz/5.8GHz models available
| Condition | Signal Stability | Effective Range | Latency |
| Urban FPV Drones | 99.2% RSSI | 1.2km | <4ms |
| Industrial Video Links | 98.7% RSSI | 800m | <6ms |
| Open-Field Transmission | 99.5% RSSI | 2.5km+ | <3ms |
| Tested with 600mW VTx, clear LOS, and stock antennas |
• Long-range quadcopter video transmission
• Racing drone telemetry links
• Cinematic drone control
• HD video surveillance feeds
• Industrial inspection cameras
• Live event broadcasting
• 5.8GHz Wi-Fi extenders
• Smart grid communication nodes
• Wireless sensor networks
• Remote machinery monitoring
• AGV (Automated Guided Vehicle) control
• Robotic teleoperation
• Wireless HDMI extenders
• Gaming console video streaming
• VR headset connectivity
• Temperature Range:
• Operating: -40°C to +85°C
• Storage: -40°C to +100°C
• Mechanical Resilience:
• Withstands 10G vibrations (20–2000Hz)
• Survives 1.5m drops onto concrete
• Installation Guidelines:
• Mount vertically for optimal polarization alignment
• Maintain ≥30mm clearance from metal surfaces
• Use strain relief loops for cable management
• RF Compliance:
• FCC Part 15 (5.15–5.85GHz)
• CE/ROHS certified
• EN 55032 Class B EMI standards
• Maintenance:
• Periodic connector cleaning with isopropyl alcohol
• Inspect for housing cracks after impacts
• Avoid bending antenna base beyond 30°
