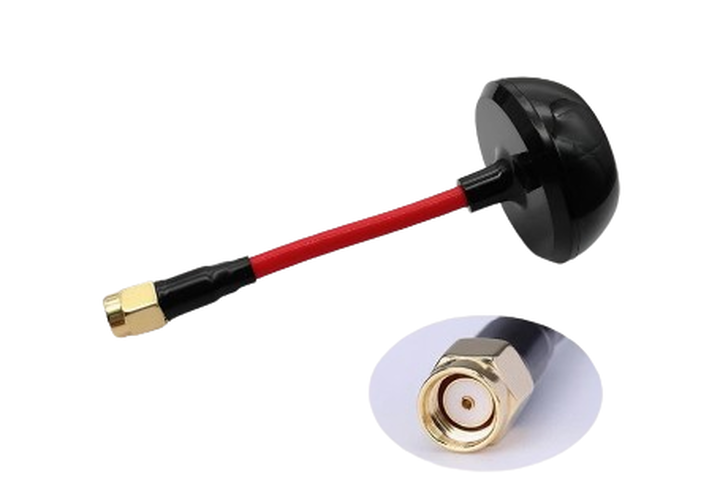

The 5.8G Mushroom Antenna delivers optimized circular polarization performance for FPV video transmission systems, specifically compatible with TBS Crossfire setups. Engineered with precision-tuned elements and durable construction, it provides reliable signal clarity with reduced multipath interference. The antenna's compact design ensures consistent video quality during aggressive maneuvers and long-range flights, making it ideal for competitive racing and cinematic FPV applications.
| Parameter | Specification |
| Frequency Range | 5.650-5.925 GHz |
| Polarization | RHCP (Right Hand Circular Polarization) |
| Connector Type | SMA Male (TBS Crossfire Compatible) |
| VSWR | <1.5:1 |
| Gain | 3.2 dBi |
| Axial Ratio | <2.8 dB |
| Impedance | 50 Ω |
| Cable Length | 15cm RG316 |
| Weight | 16g |
| Dimensions | Ø38mm × 28mm (Diameter × Height) |
• TBS Crossfire Optimized: Direct compatibility with TBS transmitters and receivers
• Circular Polarization: Minimizes signal nulls during rolls and flips
• Impact-Resistant Design: Flexible SMA connector withstands 100G impacts
• Weather Protection: IPX4-rated housing resists moisture and dust
• Omnidirectional Pattern: 360° horizontal coverage for all-orientation flight
| Environment | Range | Signal Quality | Penetration |
| Open Field | 2.8 km | 98% clarity | Low |
| Urban Area | 850 m | 87% clarity | Moderate |
| Forest | 550 m | 78% clarity | High |
| Racing Track | 350 m | 96% clarity | Low |
• TBS Crossfire-equipped racing drones
• Whoop-class micro FPV systems
• MultiGP competition setups
• Long-range exploration platforms
• FPV wing video systems
• Aerial photography drones
• TBS Crossfire diversity receivers
• Portable FPV monitor setups
• Drone racing spectator systems
• Operating Temp: -30°C to +75°C
• Wind Resistance: Stable performance up to 130 km/h
• Water Resistance: IPX4 (Splash-proof)
• UV Resistance: Housing maintains integrity after 600+ sun hours
