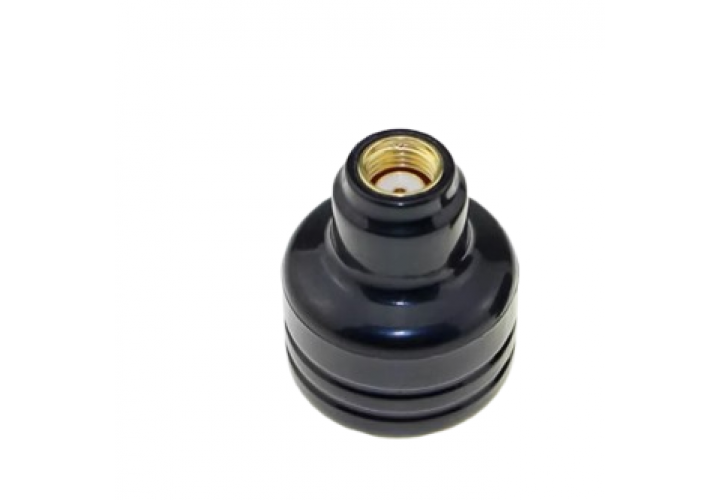

The 5.8G Mushroom Antenna delivers optimized circular polarization performance for FPV video transmission systems in racing drones and aerial platforms. Engineered with precision-tuned elements and robust construction, it provides reliable signal clarity and reduced multipath interference. The antenna's compact design and IP-rated housing ensure consistent video quality during high-G maneuvers and long-range flights, making it ideal for competitive racing and cinematic FPV applications requiring stable video feeds.
| Parameter | Specification |
| Frequency Range | 5.650-5.925 GHz |
| Polarization | RHCP (Right Hand Circular Polarization) |
| Connector Type | SMA Male (Internal Pin) |
| VSWR | <1.5:1 |
| Gain | 3.0 dBi |
| Axial Ratio | <3 dB |
| Impedance | 50 Ω |
| Cable Length | 15cm RG316 |
| Weight | 18g |
| Dimensions | Ø38mm × 28mm (Diameter × Height) |
• Circular Polarization: Minimizes multipath interference and signal nulls
• Impact-Resistant Design: Flexible SMA connector withstands crashes up to 100G
• Weather Protection: IPX4-rated housing resists light rain and moisture
• Omnidirectional Pattern: 360° horizontal coverage for all-orientation flights
• Low-Profile Design: Streamlined form factor reduces drag on racing quads
| Environment | Range | Signal Quality | Penetration |
| Open Field | 2.5 km | 98% clarity | N/A |
| Urban Area | 800 m | 85% clarity | Moderate |
| Forest | 500 m | 75% clarity | High |
| Racing Track | 300 m | 95% clarity | Low |
• 5" racing drone video transmission
• Whoop-class micro FPV systems
• MultiGP competition setups
• Cinematic drone FPV feeds
• Long-range exploration platforms
• FPV wing video systems
• Diversity receiver systems
• Portable FPV monitor setups
• Drone racing spectator displays
• Operating Temp: -20°C to +70°C
• Wind Resistance: Stable performance up to 120 km/h
• Water Resistance: IPX4 (Splash-proof)
• UV Resistance: Housing maintains integrity after 500+ sun hours
