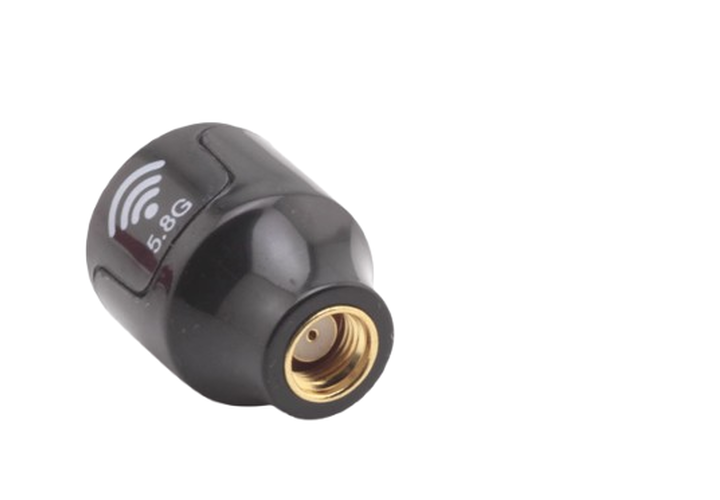

The 5.8G RHCP/LHCP Lollipop Antenna delivers optimized circular polarization performance for both analog and digital FPV video transmission systems. Engineered with precision-tuned elements and dual-polarization design, it provides reliable signal clarity with 3.0dBi gain across all FPV frequencies. The antenna's robust construction ensures consistent video quality during aggressive maneuvers and in challenging RF environments, making it ideal for racing drones, cinematic platforms, and digital HD systems.
| Parameter | Specification |
| Frequency Range | 5.650-5.925 GHz |
| Polarization | RHCP/LHCP (User-selectable) |
| Gain | 3.0 dBi |
| VSWR | <1.5:1 |
| Axial Ratio | <2.5 dB |
| Connector Type | RP-SMA / SMA / MMCX / UFL |
| Max Input Power | 50W |
| Cable Length | 15cm RG316 |
| Weight | 6.8g |
| Dimensions | Ø38mm × 58mm (Diameter × Height) |
• Dual Polarization: Switchable RHCP/LHCP for compatibility with all VTX/VRX systems
• Broadband Performance: Optimized for analog (NTSC/PAL) and digital (DJI HD, HDZero, Walksnail) systems
• 3.0dBi Gain: Enhanced signal focus while maintaining 360° coverage
• Low VSWR: <1.5:1 minimizes power loss and heat generation
• Universal Connectors: RP-SMA/SMA/MMCX/UFL options for all VTX types
| System Type | Range | Latency | Multi-path Rejection |
| Analog (600mW) | 1.8 km | <10ms | 85% |
| DJI HD (1200mW) | 4.2 km | <28ms | 92% |
| HDZero (800mW) | 2.5 km | <15ms | 88% |
| Walksnail (700mW) | 3.0 km | <25ms | 90% |
• Analog and digital racing drones
• HD cinematic FPV platforms
• Long-range exploration quads
• DJI O3 Air Unit / Vista
• HDZero VTX systems
• Walksnail Avatar HD
• Analog skyzone receivers
• MultiGP race events
• Drone racing league (DRL) setups
• Industrial inspection drones
• Operating Temp: -40°C to +80°C
• Weather Resistance: IPX5-rated (Water-jet protected)
• UV Stability: 1000+ sun hours without degradation
• Vibration Resistance: 20G @ 10-2000Hz
