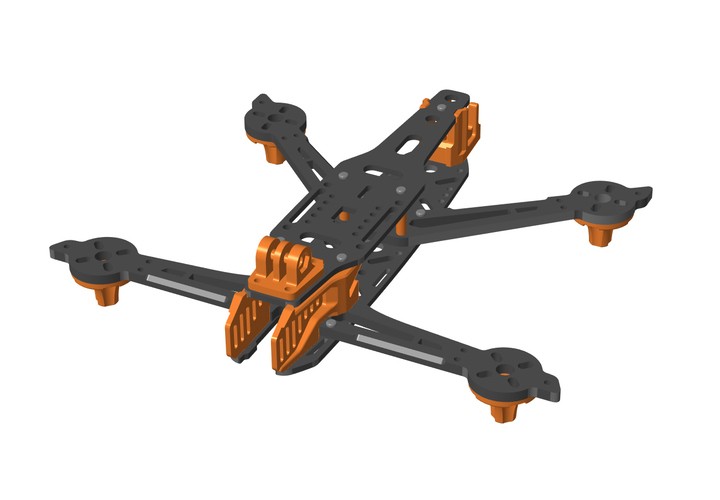

The 5-inch drone frame series features aerospace-grade carbon fiber construction optimized for FPV racing, freestyle, and long-range drone applications. Engineered with precision-cut laminates and reinforced stress points, it delivers exceptional rigidity-to-weight ratio while withstanding high-impact crashes. The frame's modular design accommodates digital HD systems, compact batteries, and diverse flight controllers, making it ideal for pilots seeking agility and durability in competitive and recreational flying.
| Parameter | Specification Range |
| Wheelbase | 218-250mm (±1mm) |
| Frame Type | True X / Deadcat / Hybrid X |
| Material | 3K Twill Carbon Fiber (T700 Grade) |
| Arm Thickness | 5.0-6.0mm (±0.1mm) |
| Base Plate Thickness | 2.0-3.0mm |
| Top Plate Thickness | 1.5-2.5mm |
| Stack Height | 28-35mm (Adjustable) |
| FC Mount Pattern | 30.5×30.5mm / 20×20mm |
| Camera Mount | 19mm/20mm/22mm Standard |
| Dry Weight | 77-200g (Varies by design) |
| Payload Capacity | 150-300g |
• Impact-Resistant Arms: 5-6mm tapered arms with vibration-damping geometry
• Dual FC Mounting: Compatible with 30.5×30.5mm and 20×20mm flight controllers
• HD System Integration: Zero-propeller visibility in camera view
• Lightweight Construction: Weight-optimized carbon fiber milling
• TPU Accessory Mounts: Vibration-damped camera/antenna holders
• Modular Design: Quick-release arms for easy maintenance
• Aerodynamic Profile: Reduced frontal area with chamfered edges
| Metric | Value | Conditions |
| Tensile Strength | 650-720 MPa | ASTM D3039 |
| Torsional Rigidity | 0.85-1.10° deflection at 5N·m | ISO 178 |
| Vibration Damping | 80-88% reduction @ 100-500Hz | Per ISO 10816-8 |
| Crash Survival | 15G impact (3m drop) | MIL-STD-810G Method 516.6 |
• MultiGP spec competitions
• Technical track racing
• Power loops and proximity flying
• HD cinematic maneuvers
• Lightweight 5" cruisers
• Mountain surfing setups
• DJI O3 Air Unit integration
• Walksnail HD VTX mounting
• Operating Temp: -20°C to 60°C
• Weather Resistance: IP54-equivalent (dust/splash resistant)
• UV Stability: <3% degradation after 500hrs exposure
• Storage Conditions: -30℃ ~ 50℃, <70% RH
