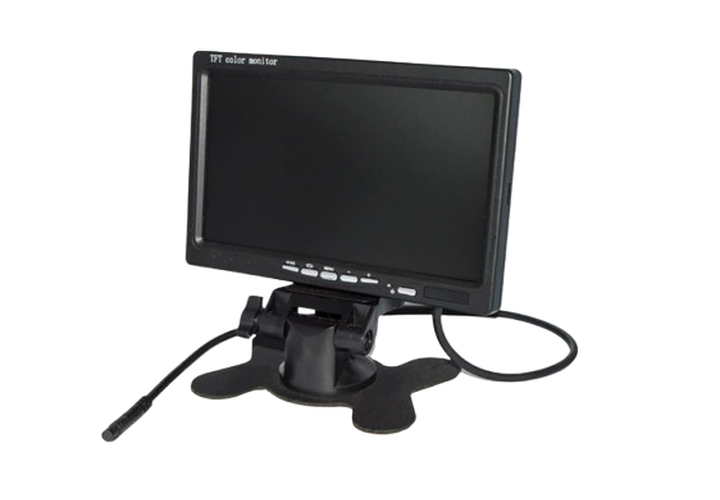

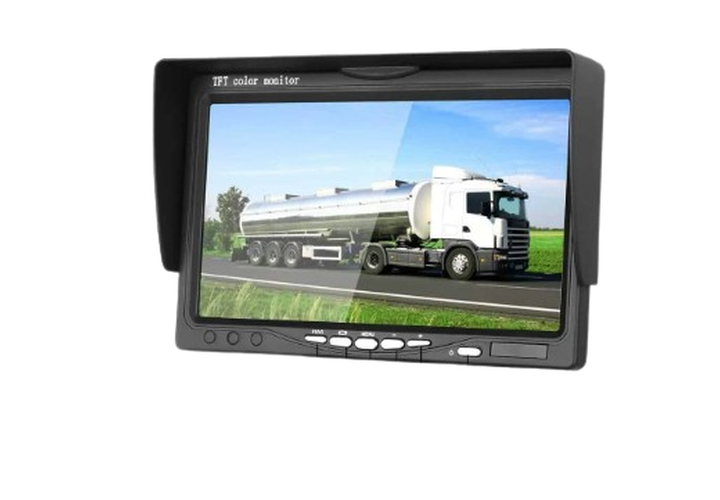

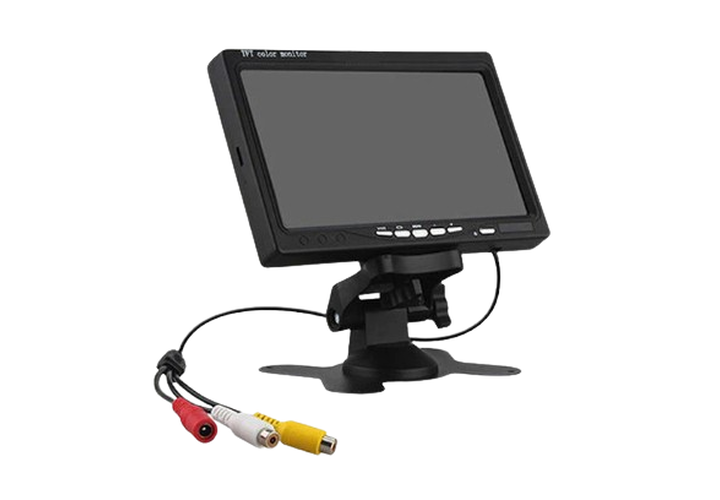

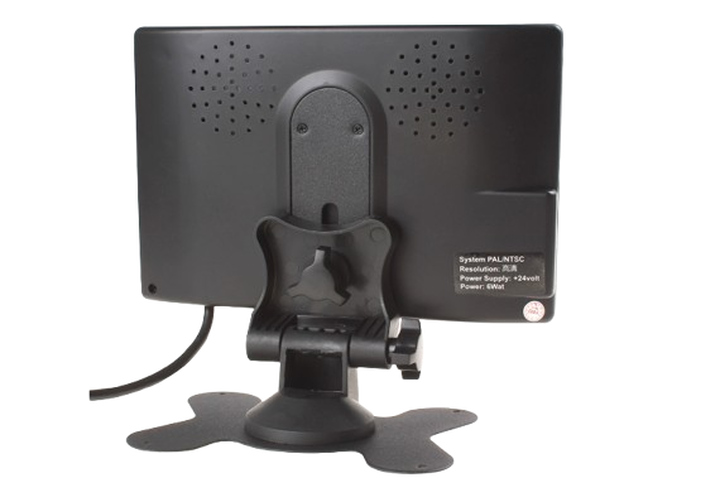

The 7" Vehicle-Mounted Display Terminal delivers high-visibility visual interface solutions for commercial vehicles and industrial equipment. Featuring a sunlight-readable 1000-nit display with projected capacitive touch, this IP65-rated monitor withstands extreme environmental conditions while providing versatile connectivity options. Engineered with MIL-STD-810G shock/vibration resistance and wide operating temperature range, it ensures reliable performance in demanding applications from construction sites to emergency vehicles.
| Parameter | Specification |
| Display Size | 7.0" TFT LCD |
| Resolution | 1024×600 (WSVGA) |
| Brightness | 1000 cd/m² (Sunlight Readable) |
| Contrast Ratio | 1000:1 |
| Touch Technology | Projected Capacitive (10-Point Multi-Touch) |
| Viewing Angle | 178° (H/V) |
| Operating Voltage | 9-36V DC (Vehicle Power Compatible) |
| Power Consumption | <15W (Typical) |
| Housing Material | Aluminum Alloy + Polycarbonate |
| Dimensions | 192×118×38 mm |
| Weight | 850g |
| IP Rating | IP65 (Front Panel) |
• High-Visibility Display
• Anti-glare etched glass surface
• Auto-brightness adjustment via ambient light sensor
• Vehicle Integration
• Built-in CAN bus decoder (J1939/ISO11898)
• Reverse trigger input for backup camera auto-switching
• Ignition-sensing power management
• Versatile Connectivity
• Video Inputs: 2× CVBS, 1× HDMI 1.4, 1× LVDS
• Data Interfaces: 2× USB 2.0, RS232/485, Ethernet
• Expansion: Mini-PCIe slot for 4G/WiFi modules
• Advanced Display Control
• PIP (Picture-in-Picture) for simultaneous feeds
• Programmable function keys (6 physical buttons)
| Test Condition | Performance Metric |
| Sunlight Visibility | >90% contrast at 100k lux |
| Touch Response | <3ms latency (glove compatible) |
| Shock Resistance | 50G @ 11ms (MIL-STD-810G) |
| Vibration | 5-500Hz @ 3Grms (SAE J1455) |
| Boot Time | <3s (from ignition) |
| Operating Temperature | -30°C to +70°C |
• Real-time GPS tracking and telematics
• Driver behavior monitoring systems
• Logistics management displays
• Implement control interfaces
• Precision farming data visualization
• Sprayer monitoring systems
• Mobile data terminals (MDT)
• Camera monitoring systems
• Equipment status displays
• Payload monitoring interfaces
• Diagnostic information display
• Crane operation control
• Operating Temperature: -30°C to +70°C
• Humidity Resistance: 5% to 95% non-condensing
• Weather Protection: IP65 front panel rating
• Vibration Resistance: SAE J1455 compliant
• Chemical Resistance: ISO 15003 (fuels, cleaners)
• EMC Compliance: EN 55032/55024, CISPR 25
