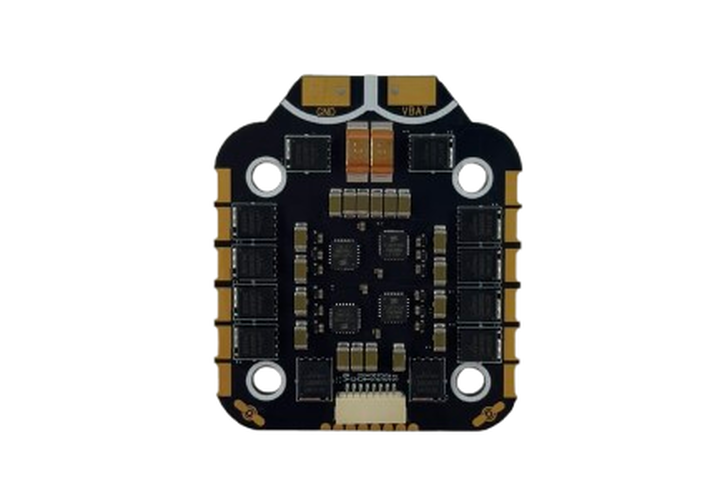

75A ESC 4-in-1 AT32F421K8U7

FPV Electronics > ESC (Electronic Speed Controllers)

$39.90
$49.90
High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU, designed for 5-8S FPV drones requiring ultra-fast response and robust power delivery.
SKU: CRP00880-75A
Package weight: 0.10 KG
Pkg. Size: 85MM*61MM*25MM
IN STOCK
To Wishlist
Add to Cart



75A 4-in-1 ESC (AT32F421K8U7) Technical Brief

Overview

High-performance 4-in-1 electronic speed controller utilizing the AT32F421K8U7 ARM Cortex-M4 MCU, designed for 3-8S FPV drones requiring ultra-fast response and robust power delivery.

1. Core Specifications

ParameterSpecification
MCUAT32F421K8U7 (120MHz Cortex-M4)
Continuous Current75A/channel (4-in-1 total 340A)
Instantaneous current90A/channel (10sec)
Input Voltage2S-8S (12.6-33.2V)
PWM Frequency8-48kHz (programmable)
ProtocolsDshot150/300/600/Multishot/Oneshot/PWM
Dimensions54×45×8mm
Board Weight16g

2. Key Features

Power Stage

  • • MOSFETs: 24 * LSGN04R013WE-5*6

  • • Capacitance: 30 * 22UF 35V ceramic capacitors + 1000UF electrolytic capacitor

  • • Power supply: 4 independent power supply LDO, four-way power isolation, ultra-stable operation

  • • Current Sensing: High-precision ammeter, using stable

  • • Base Firmware：AM32_  K _A_F421.hex

Control System

  • • MCU Performance:

    • • 120MHz clock speed

    • • Single-cycle 32-bit multiplication

    • • Hardware floating-point unit

  • • Update Rate: 32kHz signal processing

Protections

  • • Overcurrent (Hardware + Software)

  • • Over-temperature (85°C throttle reduction)

  • • Voltage spike protection (40V transient)

  • • Motor short-circuit detection

3. Accessories package

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT60-male 12AWG silicone cable 15cm length

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 5x M3*8mm shock-absorbing balls

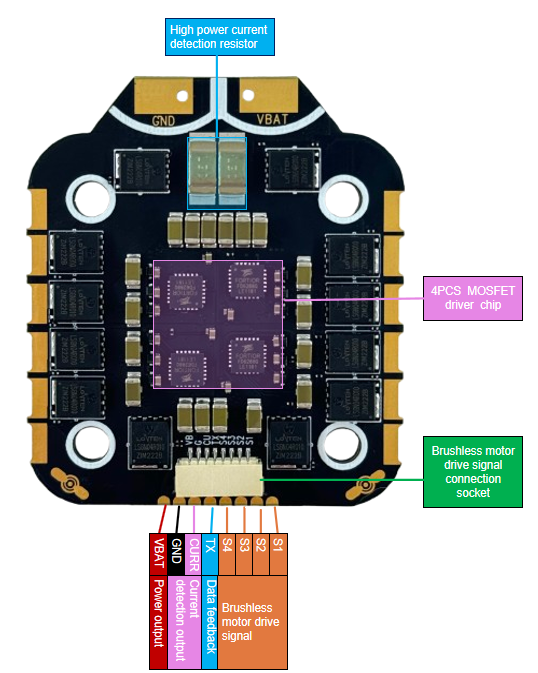

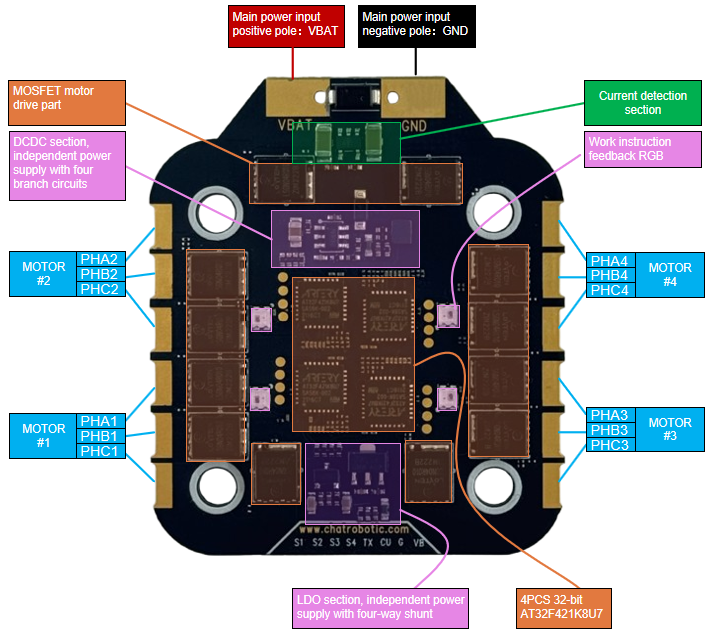

4.Connection Diagram

85A4IN1 ESC1.png85A4IN1 ESC2.png
