AIO F405 Flight Controller + 85A ESC 4-in-1 AT32

FPV Electronics > Stack & AIO

$69.90
$79.90
Integrated flight control and power delivery system designed for high-performance 5-10" FPV drones, combining the reliability of STM32F405 with the power efficiency of AT32-based ESCs.
SKU: CRP00903
Package weight: 0.15 KG
Pkg. Size: 105MM*75MM*25MM
IN STOCK
To Wishlist
Add to Cart

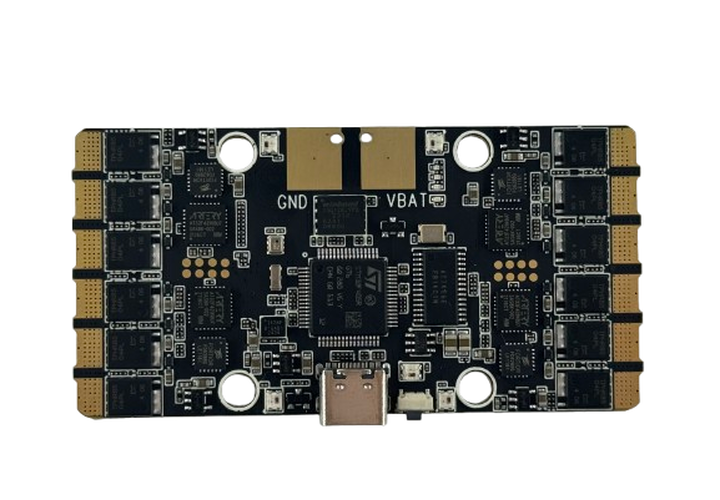

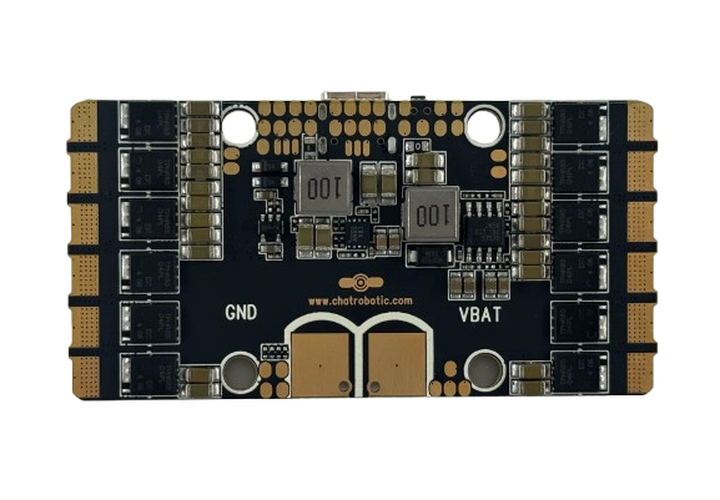

STM32F405 Flight Controller + 85A AT32 4-in-1 ESC Combo Technical Brief

System Overview

Integrated flight control and power delivery system designed for high-performance 5-10" FPV drones, combining the reliability of STM32F405 with the power efficiency of AT32-based ESCs.

1. Flight Controller Specifications

ParameterSpecification
MCUSTM32F405RG (168MHz Cortex-M4)
IMUICM-42688-P (32kHz gyro)
Blackbox16MB Flash (4kHz logging)
Input Voltage2-8S (12.6-33.6V)
BEC Outputs5V@3A + 9V@2A
Connectivity5x UART, 1x I2C
CameraDual cameras, one-button switch via remote control
Board Size73*38*8mm
Board Weight20g

2. 85A 4-in-1 ESC Specifications

ParameterSpecification
MCUAT32F421K8U7 (120MHz Cortex-M4)
Continuous Current85A/channel (340A total)
Burst Current100A/channel (5sec)
ProtocolsDshot150/300/600/Multishot/Oneshot/PWM

3. Combined Features

Power System

  • • Integrated PDB: No separate power board needed

  • • Surge Protection: 40V transient voltage suppression

  • • Current Sensing: ±1% accuracy shunt resistors

4. Safety Features

Flight Controller Protections

Protection TypeSpecificationImplementation
Voltage Spike Protection40V transientTVS diodes + π-filter
Gyro Vibration DampingReduces 10kHz+ vibrations by 90%Silicone soft-mount + 2-stage filter
Single power input2S-8Sbattery voltage

ESC Protections

Protection TypeThresholdResponse TimeTrigger Condition
Hardware Overcurrent100A per channel≤5secondsThe MOS will heat up and break down if overtime
Short CircuitHardware Isolation<100μsMotor winding fault
Over-temperature110°C (MOSFET)<1msMCU high temperature protection
Low Voltage Cutoff3.2V/cell<100msBattery depletion

5. Accessories Package

  • • 1x SH1.0-8pins silicone cable (7cm, reversed)

  • • 1x SH1.0-6pins silicone cable (12cm, reversed)

  • • 1x SH1.0-4pins silicone cable (12cm, reversed)

  • • 1x SH1.0-3pins silicone cable (10cm, reversed)

  • • 1x SH1.0-2pins silicone cable (12cm, single-end)

  • • 5x M3*10mm shock-absorbing balls

  • • 1x 1000UF 35V 10*20mm electrolytic capacitor

  • • 1x XT60-male 12AWG silicone cable 15cm length

  • • 5x M3*8mm shock-absorbing ball

6. Connection Diagram
