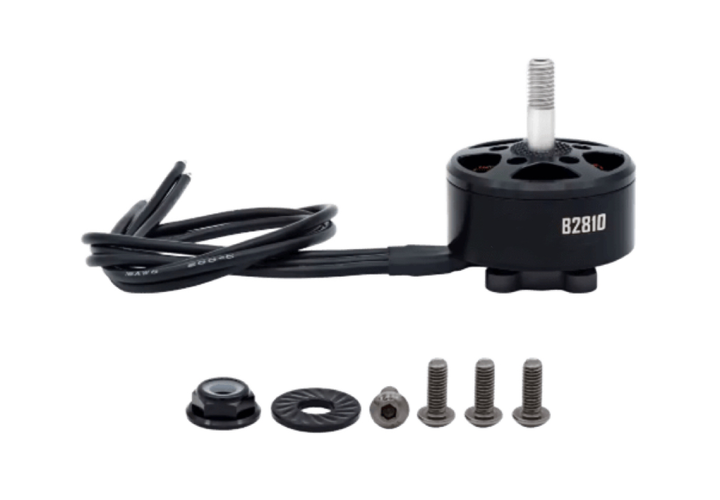

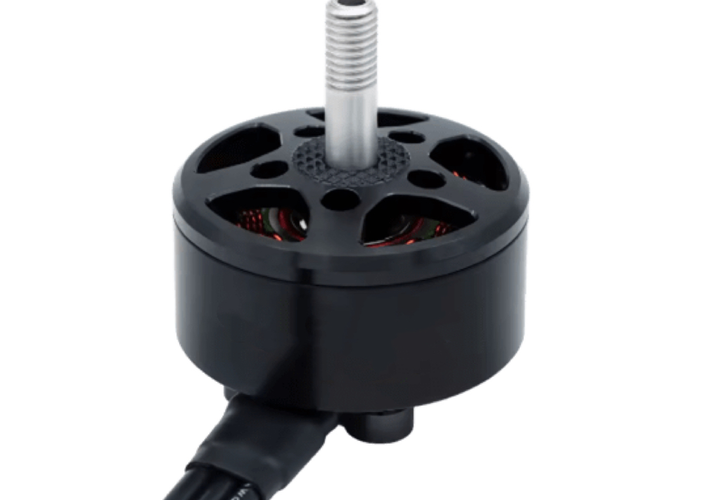

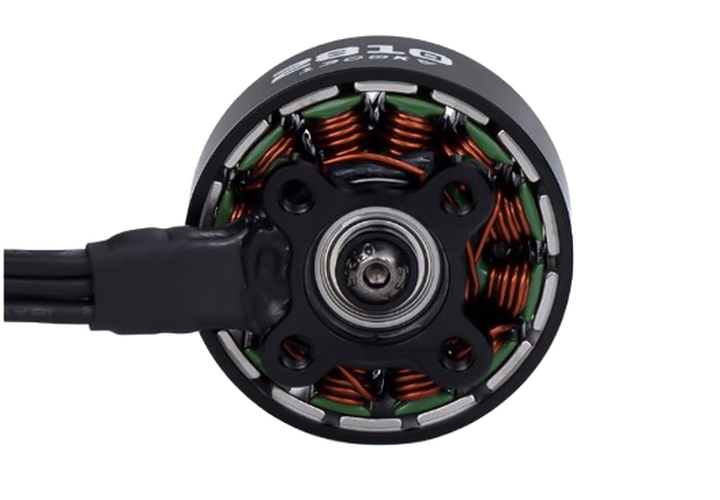

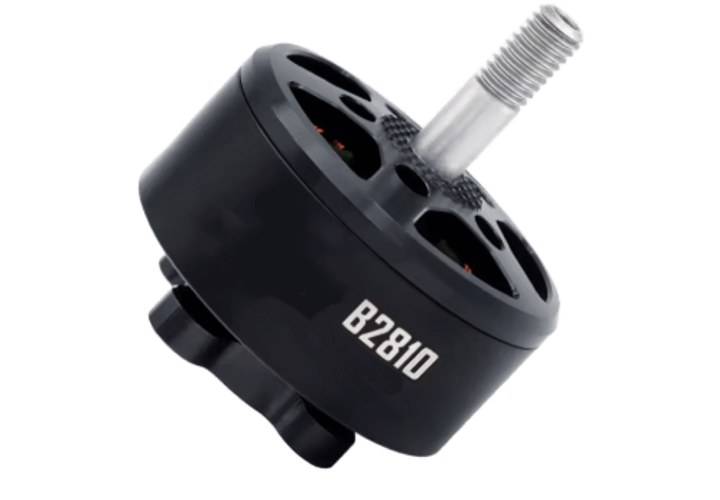

B2810 900KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$9.90
The 2810 brushless motor is a heavy-duty outrunner designed for industrial-grade multirotors and aerial work platforms.
SKU: 31691
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



2810 900KV Brushless Motor Specification

Descriptions

The 2810 brushless motor is a heavy-duty outrunner designed for industrial-grade multirotors and aerial work platforms. With a 900KV rating and optimized for 6S-8S systems, it delivers unmatched torque stability for large propellers (14"-18") in agricultural, logistics, and heavy-lift scenarios. Features military-grade sealing and anti-corrosion treatment for extreme environment operations.

1. Main Specifications

Parameter2810 900KV Version
Stator Size28mm × 10mm
KV Rating900KV ±3%
Max Voltage33.6V (8S)
Max Current70A (60s burst)
Max Power1800W
No-load Current1.2A @ 24V
Resistance0.016Ω
Shaft Diameter6mm (Keyway)
Weight158g
Mounting Pattern30×30mm/40×40mm

2. Key Features

  • • Industrial Winding: 18N20P hexagonal winding with 2.0mm² high-temp (220°C) copper wire

  • • Stormproof Magnets: N55UH grade with IP68-rated epoxy encapsulation

  • • TriCool System: 3-stage centrifugal cooling (rotor/stator/baseplate)

  • • Universal Mounting: Dual M5/M6 threaded holes with vibration-damping inserts

  • • Connector: 6.0mm anti-spark XT90 plugs (pre-installed)

3. Performance Data

Thrust Table (6S LiPo @ 25.2V)

PropellerThrustCurrentEfficiency (g/W)
14×4.8 (CF)3200g42A5.12
15×5.5 (CF)3800g48A5.24
16×5.2 (GF)4100g52A5.30

8S High-Load Mode (33.6V)

PropellerThrustCurrentOperation Mode
17×5.6 (CF)4850g58A75% throttle
18×6.0 (CF)5500g65AECO mode only

4. Recommended Applications

🌾 Agricultural:

  • • Crop spraying drones (20L+ payload)

  • • Seed dispersal systems

  • • Precision fertilizer platforms
    🚁 Heavy-Lift:

  • • Cinema-grade 8K camera rigs

  • • Firefighting equipment carriers

  • • Industrial inspection drones

5. Accessories Package

  • • 4× M5×12mm stainless steel screws

  • • 2× XT90 pigtail cables (8AWG)

  • • 1× 40×40mm aluminum adapter plate

  • • 1× Corrosion-resistant grease (5g)

6. Thermal Characteristics

  • • Continuous Operation: 85°C @ 40°C ambient (8S full load)

  • • Peak Threshold: 125°C (gradient power reduction)

  • • Cooling Requirement: 12m/s airflow for agricultural spraying

    Note: Test data includes 85% humidity and 1000m altitude. IP68 rating valid when using provided sealing kit.
