BL2430S 250KV Brushless Motor | High-Efficiency Internal Rotor Motor for Appliances & Medical Devices

Descriptions

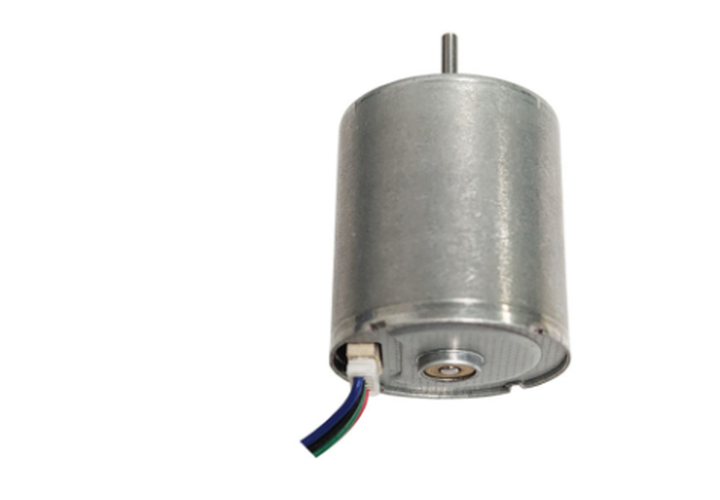

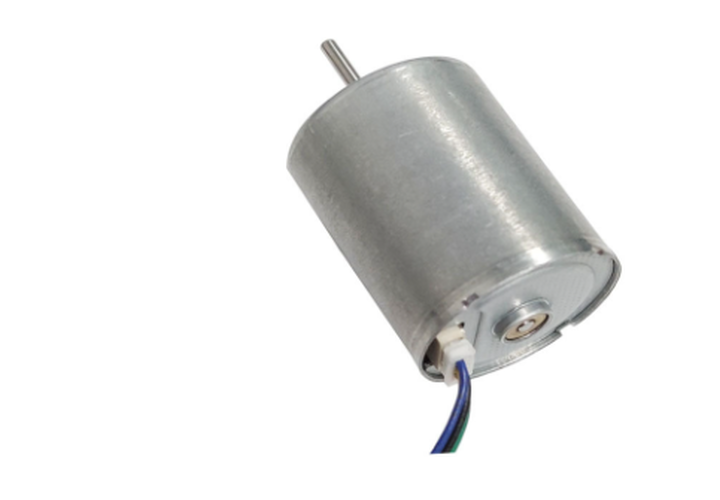

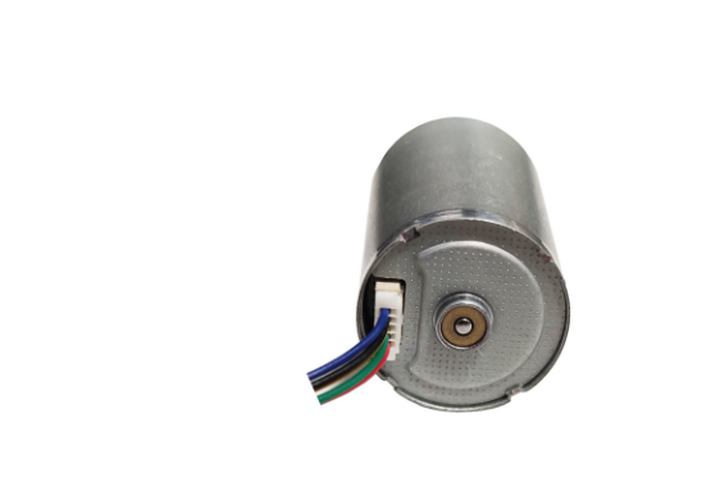

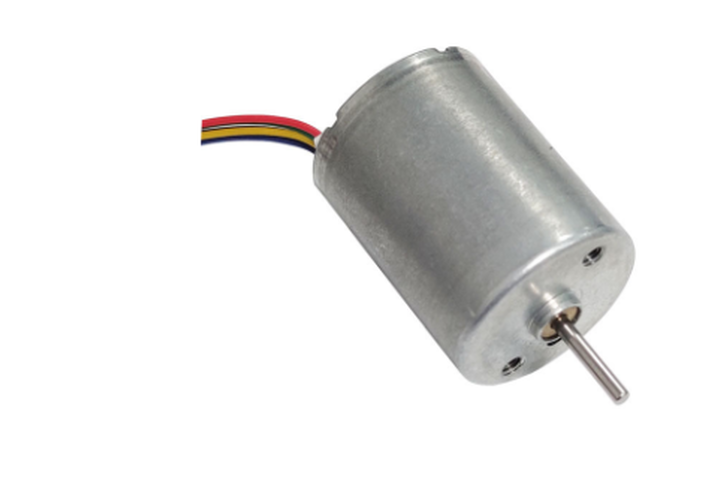

The BL2430S 250KV internal rotor brushless motor delivers precision performance for home appliances, smart locks, toys, and medical equipment. Featuring a compact design with optimized magnetic circuits, it provides smooth torque delivery with exceptional efficiency. The motor's low-noise operation and EMC-shielded construction ensure reliable performance in sensitive environments requiring precise motion control and minimal electromagnetic interference.

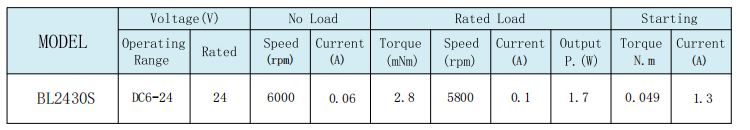

1. Main Specifications

2. Key Features

• • High Efficiency: >88% peak efficiency with low iron losses

• • Precision Control: Integrated Hall sensors (±1° accuracy)

• • Ultra-Quiet Operation: <18dB(A) at 0.1m through helical skew design

• • EMI Compliance: Double-shielded housing meets FCC Part 15B

• • Long Service Life: Sealed ceramic bearings (20,000+ hours)

3. Performance Data

Efficiency/Torque Profile (12V @25°C)

4. Recommended Applications

🏠 Home Appliances

• • Smart coffee grinder motors

• • Electric toothbrush drives

• • High-speed hair dryer fans

🧸 Toys & Hobby

• • Mini drone propulsion systems

• • RC car wheel drives

• • Animatronic figure mechanisms

🔒 Smart Locks

• • Electronic deadbolt actuators

• • Biometric lock mechanisms

• • Access control systems

🏥 Medical Devices

• • Insulin pump drives

• • Dental tool motors

• • Ventilator valve actuators

5. Thermal Characteristics

• • Continuous Operation: 50°C @25°C ambient (Class F insulation)

• • Thermal Protection: Auto-shutdown at 80°C

• • Cooling Requirements: Natural convection only

• • Storage Conditions: -30℃ ~ +85℃, <85% RH
