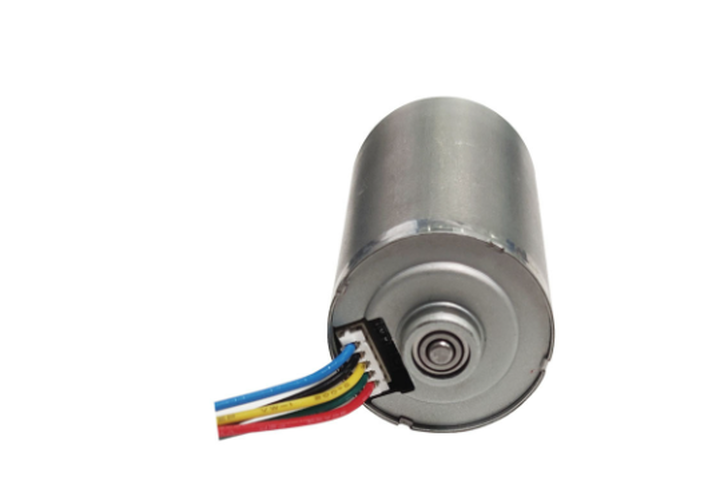

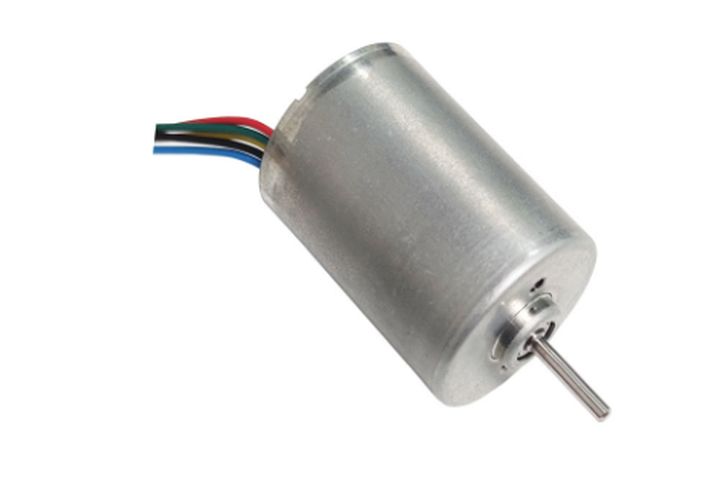

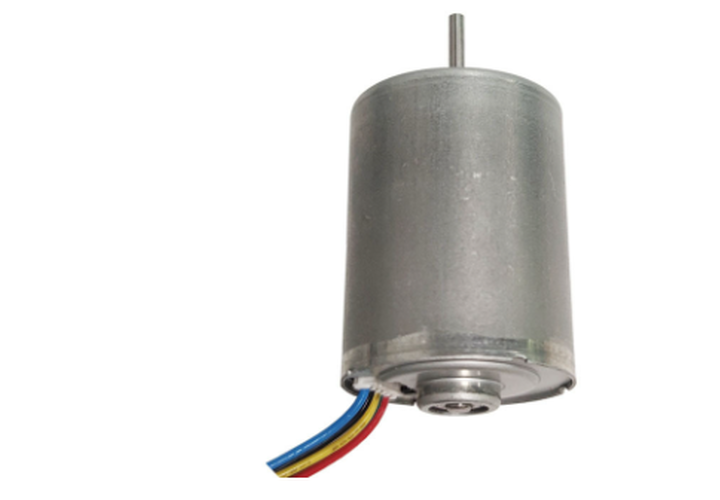

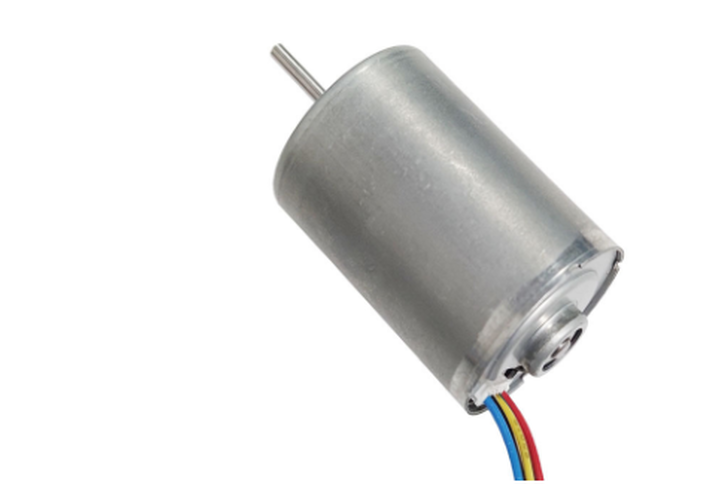

The BL2838S 250KV internal rotor brushless motor delivers exceptional efficiency and precision for small appliances, smart toys, electronic locks, and medical equipment. Featuring optimized magnetic geometry and shielded construction, it provides smooth torque delivery with ultra-low electrical noise. The motor's compact design and maintenance-free operation make it ideal for space-constrained applications requiring reliable long-term performance.
| Parameter | Specification |
| Motor Type | 3-Phase Sensored BLDC (Internal Rotor) |
| Protection Rating | IP44 (Splash Water Protected) |
| Rated Voltage | 24V DC |
| Continuous Power | 60W @ 24V (Peak 130W) |
| Max Torque | 6Nm (Peak) / 0.1Nm (Continuous) |
| Speed Range | 6000RPM (PWM Adjustable) |
| KV Rating | 250 RPM/V |
| Phase Resistance | 0.45Ω (Phase-to-Phase) |

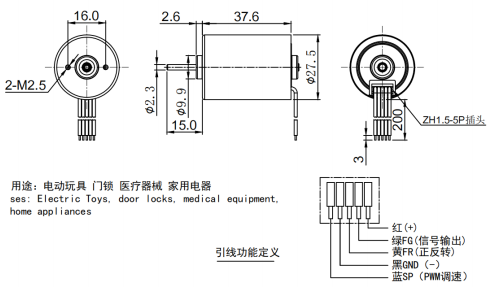

| Shaft Diameter | 2.3mm (Hardened Stainless Steel) |
| Weight | 73g |
| Mounting | 15×15mm / M2.5 Threads (4-point) |
• Ultra-Efficient Design: >90% peak efficiency with low cogging torque
• Precision Control: Integrated Hall sensors (±0.8° accuracy)
• Silent Operation: <16dB(A) at 0.1m through skewed slot design
• EMI Protection: Triple-shielded housing meets EN 55032 Class B
• Long Service Life: Sealed hybrid ceramic bearings (30,000+ hours)
| RPM | Torque | Efficiency | Power Output |
| 6000 | 6Nm | 89% | 3.3W |
• High-speed blender motors
• Smart coffee machine pumps
• Cordless vacuum turbine drives
• Mini drone propulsion systems
• Robotic pet actuators
• Interactive toy mechanisms
• Electronic deadbolt drives
• Biometric lock actuators
• Access control systems
• Portable oxygen concentrator motors
• Blood pressure monitor pumps
• Surgical tool drives
• Continuous Operation: 55°C @25°C ambient (Class F insulation)
• Thermal Protection: Auto-shutdown at 85°C
• Cooling Requirements: Natural convection (1m/s airflow recommended)
• Storage Conditions: -40℃ ~ +90℃, <85% RH
