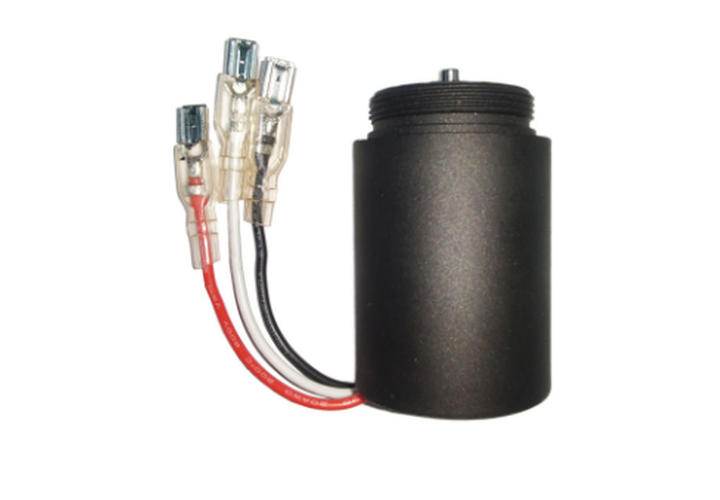

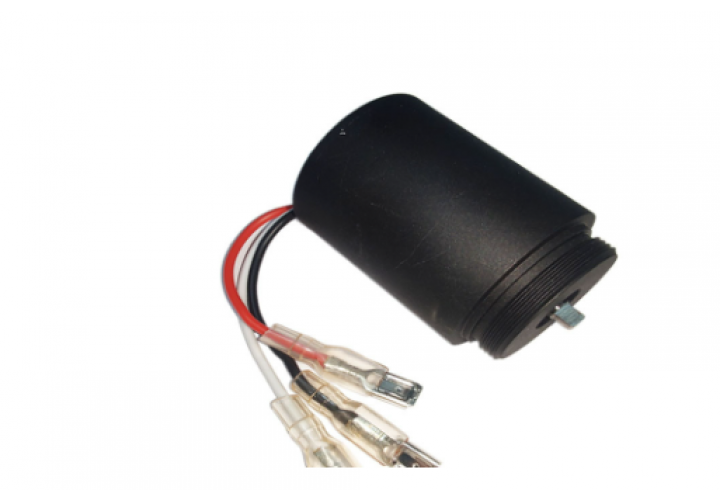

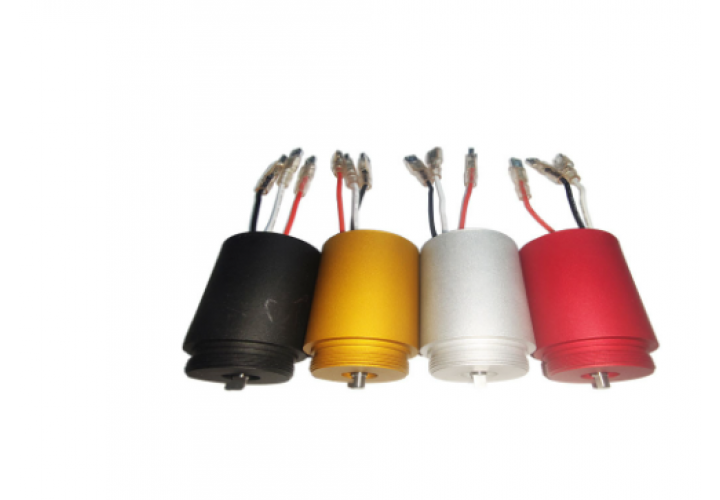

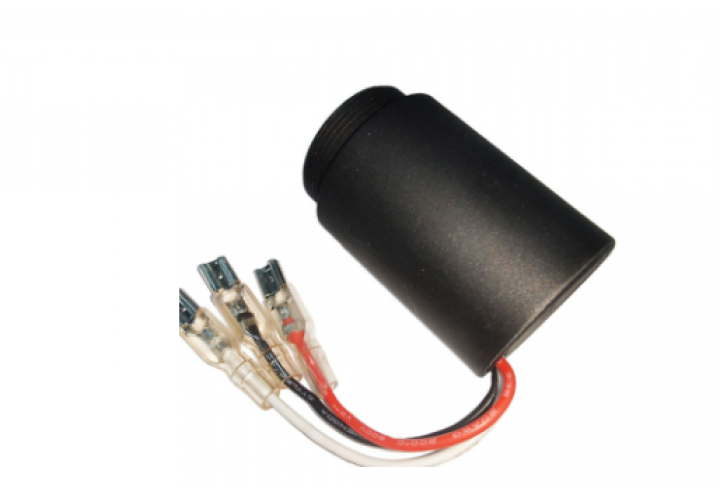

BL3140 2780KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$8.90
The BL3140 2780KV brushless motor delivers high-torque performance for professional power tools and garden equipment.
SKU: 32021
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



BL3140 2780KV Brushless Motor | Power Tools & Garden Equipment Motor Specifications

Descriptions

The BL3140 2780KV brushless motor delivers high-torque performance for professional power tools and garden equipment. Engineered with reinforced construction and thermal management systems, it provides reliable operation in demanding applications such as electric shears, chainsaws, and handheld power tools.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP55 (Dust/Jet Water Protected)
Rated Voltage7.2V (6S Li-ion)
Continuous Power20W @7.2V
Max Torque10Nm (Peak) / 0.625Nm (Continuous)
Speed Range19770-20500RPM (ESC Adjustable)
Resistance0.025Ω (Phase-to-Phase)
Shaft Diameter5mm (Hardened Steel)
Weight85g
Mounting Pattern25×25mm / M4 Threads

2. Key Features

  • • Impact-Ready: Steel-reinforced end caps with anti-vibration mounts

  • • Cooling System: Axial airflow channels + aluminum heat sink

  • • Overload Protection: Smart current limiting (80A peak)

  • • Instant Response: 0-20k RPM acceleration in 0.15sec

  • • All-Weather Duty: Conformal-coated PCB & sealed connectors

3. Performance Data

Power/Torque Curve (25°C Ambient)

VoltageNo-Load SpeedStall TorqueEfficiency
7.2V20500 RPM10Nm89%

4. Recommended Applications

🔧 Power Tools

  • • Cordless angle grinders

  • • Brushless drills/drivers

  • • Rotary hammer mechanisms

🌳 Garden Equipment

  • • Electric hedge trimmers

  • • Chainsaw drive units

  • • Robotic lawn mower wheels

✂️ Cutting Systems

  • • Industrial electric shears

  • • Pipe threading machines

  • • Automated pruning tools

5. Thermal Characteristics

  • • Continuous Operation: 60°C @25°C ambient

  • • Thermal Protection: Dual NTC sensors with step-down throttling

  • • Storage Conditions: -20℃ ~ +85℃, <95% RH

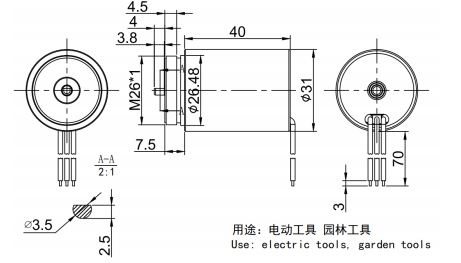

BL3140 2780KV (1).png

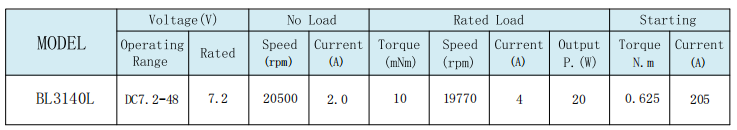

BL3140 2780KV (2).png
