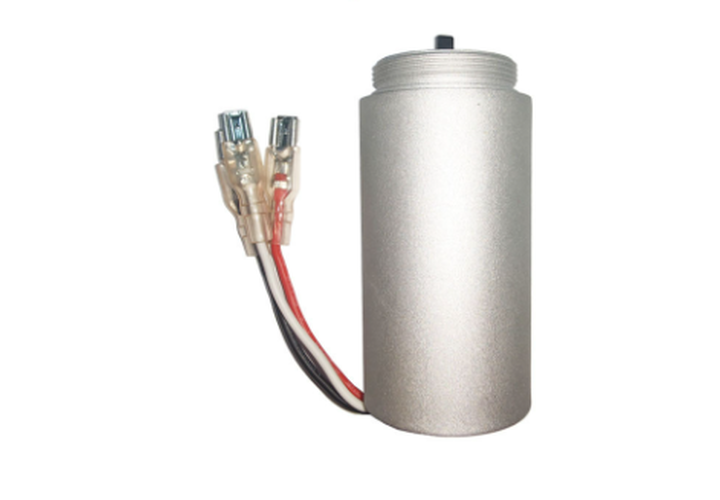

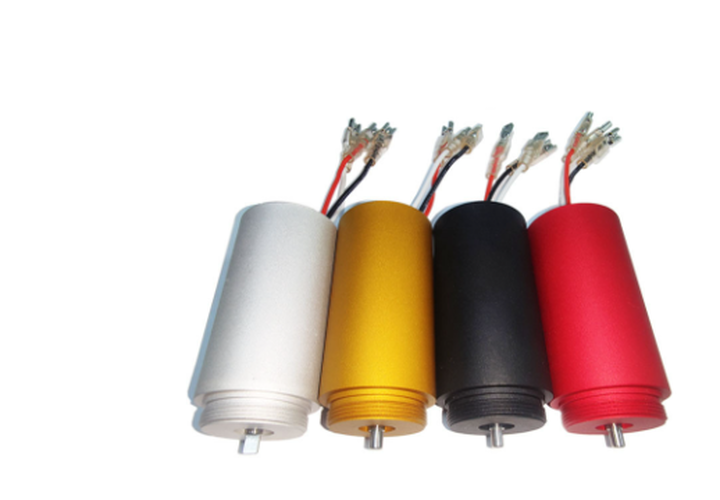

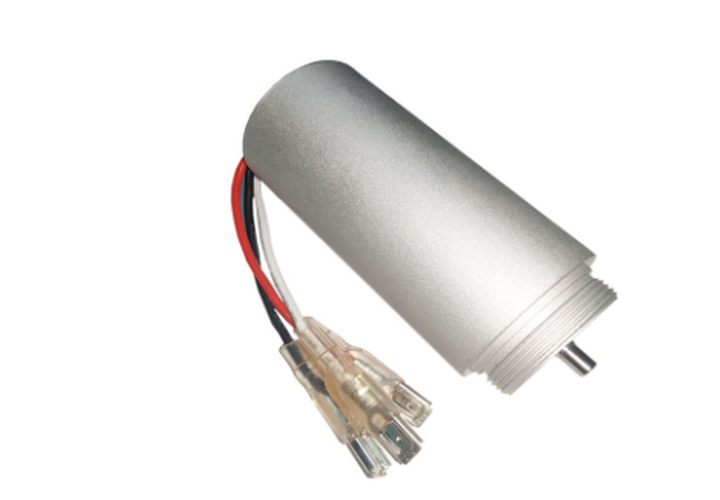

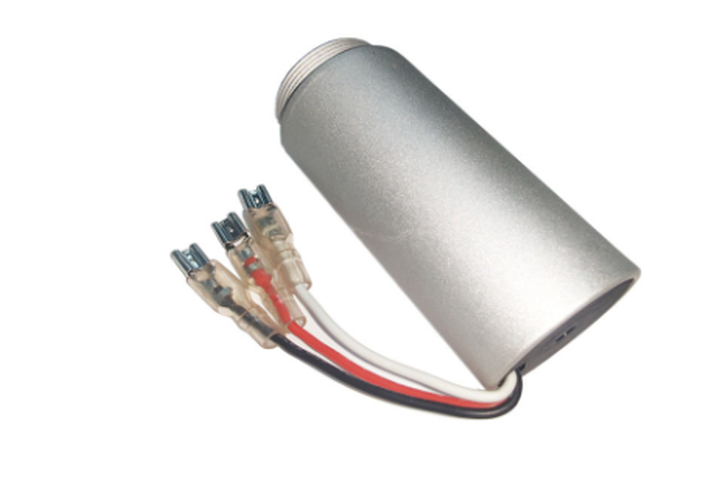

BL3163 950KV LandDrive Brushless Motor

Big Motors > LandDrive (Ebike/Robots)

$12.90
The BL3163 950KV brushless DC motor is engineered for high-efficiency garden tools, particularly electric pruning shears.
SKU: 32031
Package weight: 0.16 KG
IN STOCK
To Wishlist
Add to Cart



BL3163 950KV Brushless Motor | Electric Pruning Shear & Garden Tool Motor Specifications

Descriptions

The BL3163 950KV brushless DC motor is engineered for high-efficiency garden tools, particularly electric pruning shears. Optimized for rapid torque response and compact integration, it delivers precise cutting power while minimizing vibration and noise. Featuring reinforced construction and thermal protection, it ensures reliable performance in continuous pruning operations:cite[3]:cite[9].

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP55 (Dust/Water Jet Resistant)
Rated Voltage21V DC
Continuous Power350W @ 36V
Max Torque45Nm (Peak) / 2.47Nm (Continuous)
Speed Range19300-20300 RPM (ESC Adjustable)
Resistance0.035Ω (Phase-to-Phase)
Shaft Diameter4mm (Hardened Stainless Steel)
Weight145g
Mounting Pattern20×20mm / M3 Threads

2. Key Features

  • • Instant Torque Delivery: 0-18k RPM acceleration in 30ms for rapid branch cutting:cite[3]:cite[10]

  • • Reinforced Rotor: Stainless steel sleeves secure magnets against centrifugal detachment:cite[5]

  • • Anti-Jam Protection: Auto-reverse function triggered by 1.5-2s stall detection:cite[1]:cite[3]

  • • Dual-Mode Control: Supports full/half stroke operation via trigger sequence programming:cite[10]

  • • Low-Power Standby: <5μA sleep current with 10s auto-shutdown:cite[1]

3. Performance Data

Torque/Speed Curve (25°C Ambient)

VoltageNo-Load SpeedStall TorqueCurrent Draw
21V20300 RPM1.25Nm32A

4. Recommended Applications

✂️ Electric Pruning Tools

  • • Cordless branch shears (up to 30mm hardwood):cite[7]:cite[9]

  • • Telescopic pole pruner drives

  • • Orchard maintenance equipment

🌿 Garden Machinery

  • • Hedge trimmer blade actuators

  • • Robotic lawn mower cutting modules

  • • Portable leaf shredder drives

5. Thermal Characteristics

  • • Continuous Duty: 55°C @25°C ambient (Class F insulation)

  • • Thermal Protection: PTC cutoff at 85°C with auto-recovery:cite[1]:cite[6]

  • • Storage Conditions: -30℃ ~ +85℃, <90% RH

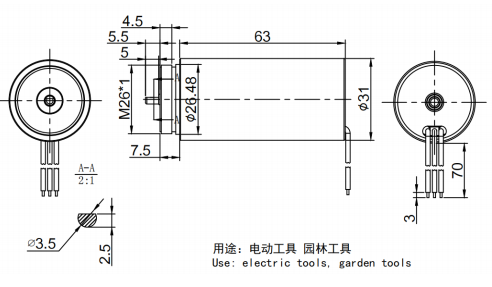

BL3163 950KV (2).png

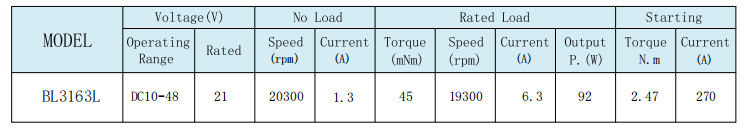

BL3163 950KV (1).png
