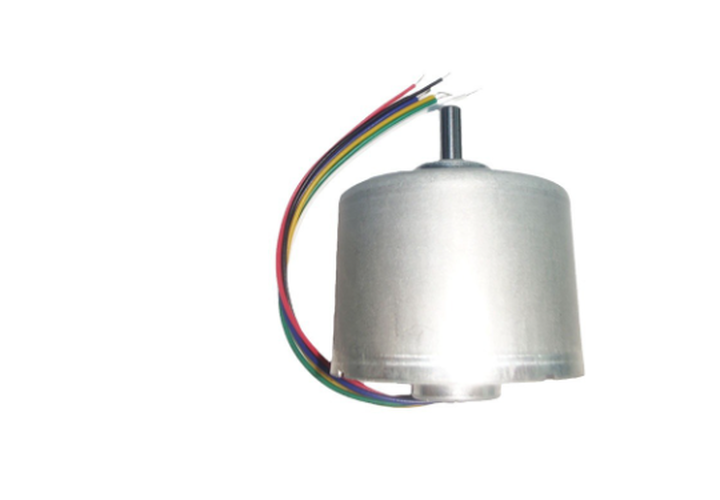

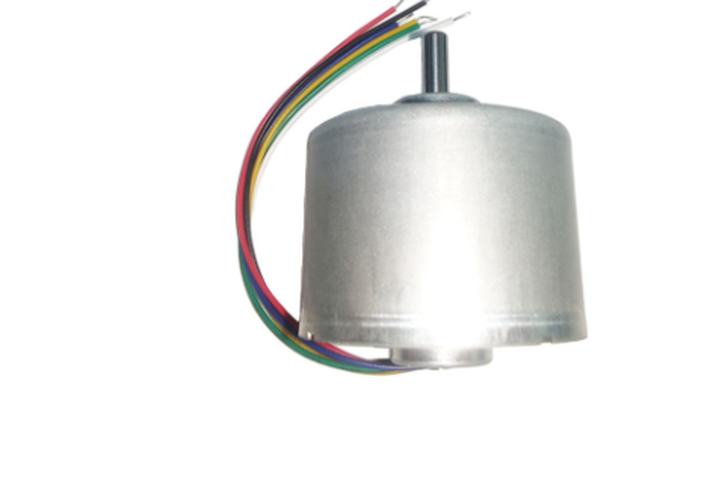

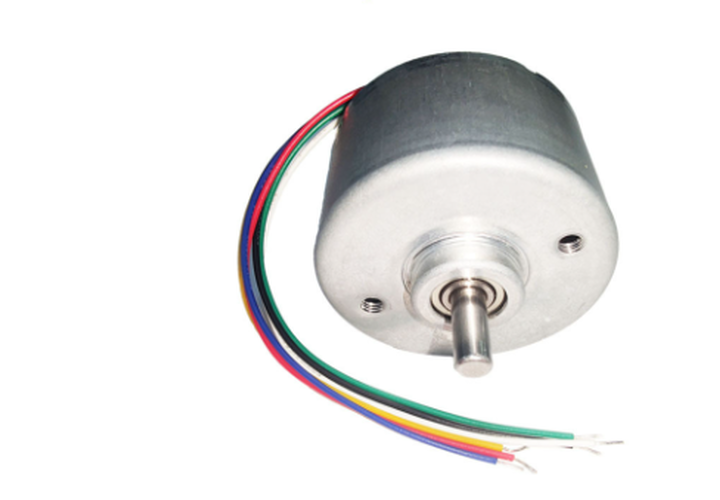

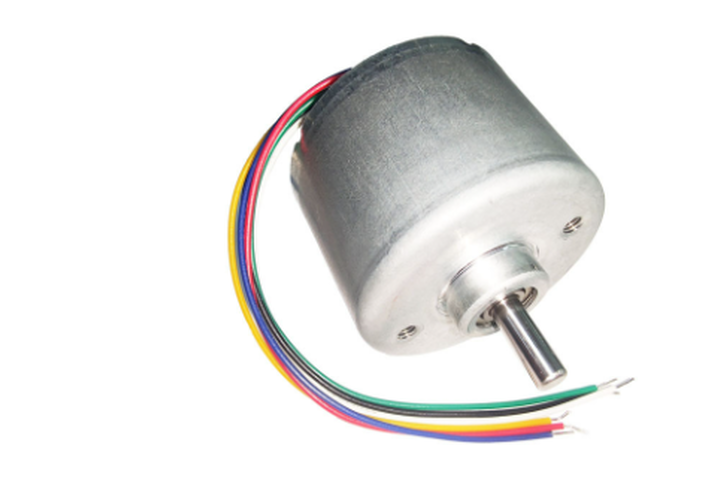

BL3626S Brushless Motor | Smart Toy Car & Medical Equipment Internal Rotor Motor Specifications

Descriptions

The BL3626S brushless motor features an advanced internal rotor design optimized for precision applications in smart toy vehicles, electronic locks, and medical devices. Engineered with surgical-grade components and EMI-shielded construction, it delivers ultra-smooth operation with minimal electrical noise. The motor's compact form factor and maintenance-free design ensure reliable performance in sensitive applications requiring precise motion control and long-term reliability.

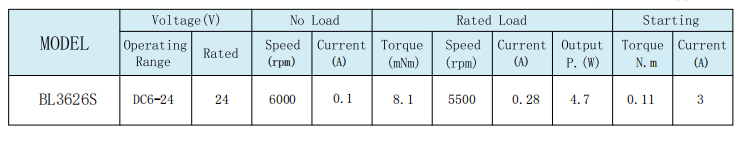

1. Main Specifications

2. Key Features

• • Precision Control: Integrated Hall sensors with 0.5° positioning accuracy

• • Ultra-Quiet Operation: <17dB(A) at 0.1m through helical skew design

• • Medical-Grade Materials: NSF-certified non-toxic components

• • EMI Compliance: Double-shielded casing meets EN 60601-1-2

• • Back-Drive Prevention: Electromagnetic position lock when powered off

3. Performance Data

Torque/Speed Curve (12V @25°C)

4. Recommended Applications

🧸 Smart Toy Systems

• • Remote-controlled car drives

• • Dollhouse elevator mechanisms

• • Animatronic eye movement systems

🔒 Electronic Locking

• • Smart door lock actuators

• • Biometric cabinet locks

• • Access control deadbolts

🏥 Medical Devices

• • Micro-dosing pump motors

• • Surgical tool positioning

• • Diagnostic equipment drives

5. Thermal Characteristics

• • Continuous Operation: 50°C @25°C ambient (Class B insulation)

• • Thermal Protection: Auto-shutdown at 75°C

• • Cooling Requirements: Natural convection only

• • Storage Conditions: -20℃ ~ +70℃, <80% RH
