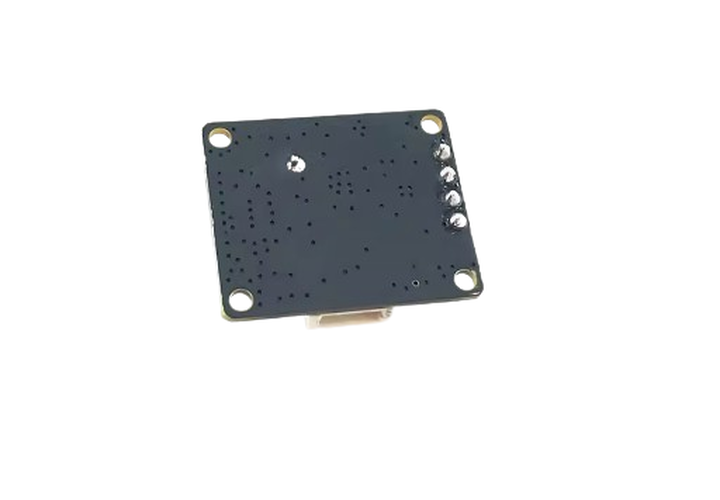

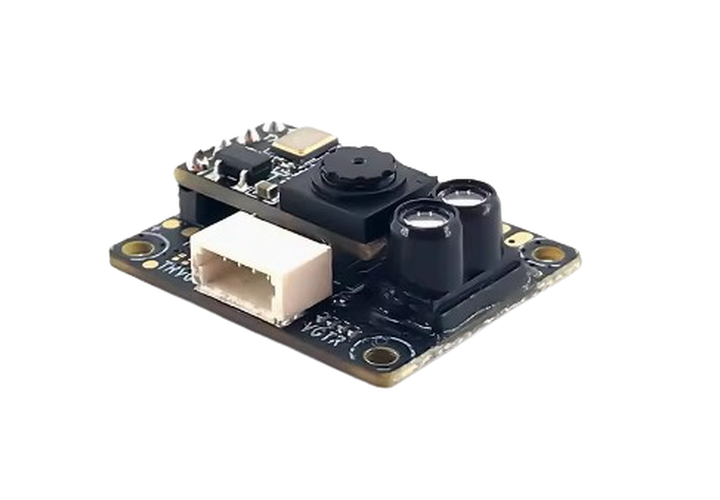

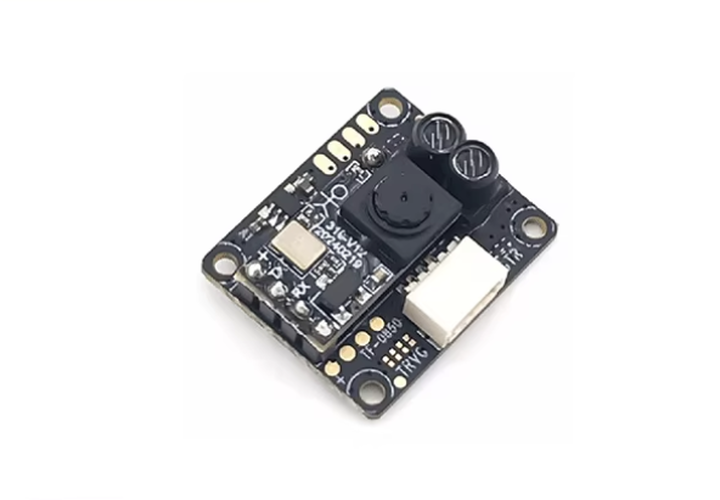

CORVON KEY TOF 8m Infrared Optical Flow Ranging Module Specifications

Descriptions

The CORVON KEY TOF 8m module integrates Time-of-Flight (TOF) infrared ranging and optical flow sensing for precise altitude control and obstacle avoidance in drones and robotics. Engineered with multi-sensor fusion technology, it delivers centimeter-level accuracy across 0.1–8m distances while compensating for motion drift. Compatible with UART/I²C interfaces and open-source flight controllers (APM/PX4/INAV), it enables stable autonomous operations in GNSS-denied environments:cite[1].

1. Main Specifications

2. Key Features

• • Sensor Fusion: TOF compensates optical flow drift for <5cm height-holding error:cite[1]

• • Dynamic Calibration: Auto-adjusts for surface texture/reflectivity changes

• • Low-Latency Output: 100Hz data rate for real-time obstacle avoidance

• • Open-Source Support: Pre-configured libraries for PX4/INAV flight stacks

• • Ambient Light Immunity: Operates under 80klux sunlight (940nm filter)

3. Performance Data

Operational Metrics

4. Recommended Applications

🚁 Drone Systems

• • Autonomous height holding in GPS-denied environments

• • Warehouse inventory drones (rack navigation)

• • Agricultural spray height control

🤖 Robotics & Automation

• • AGV anti-collision systems

• • Conveyor belt object height detection

• • Service robot stair/edge avoidance

🏭 Industrial Monitoring

• • Liquid level sensing in tanks

• • Automated guided vehicle (AGV) docking

• • Safety light curtain replacement

5. Environmental Characteristics

• • Operating Temp: -10°C to +60°C

• • IP Rating: IP40 (Dust-protected)

• • Vibration Resistance: 5G @ 10–200Hz

• • Humidity Range: 10–90% RH (non-condensing)
