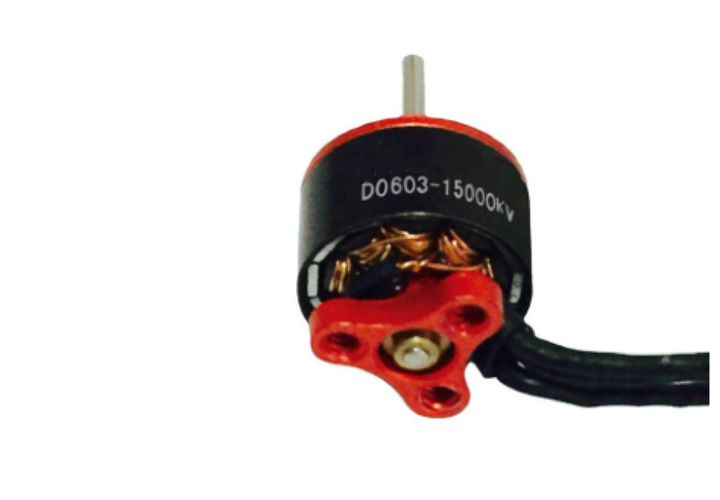

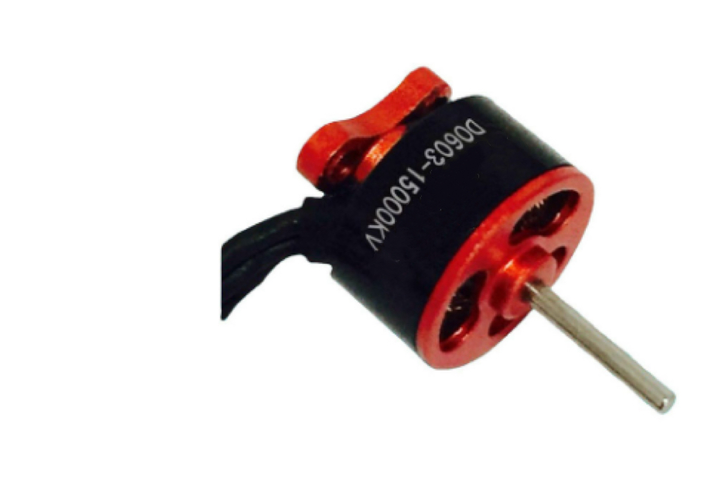

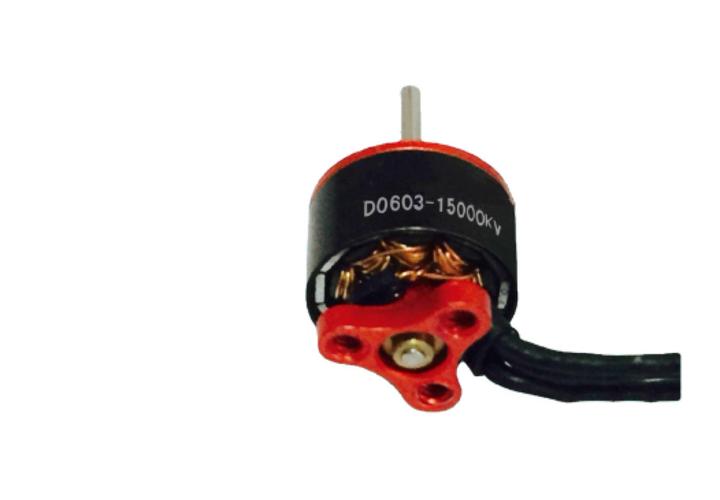

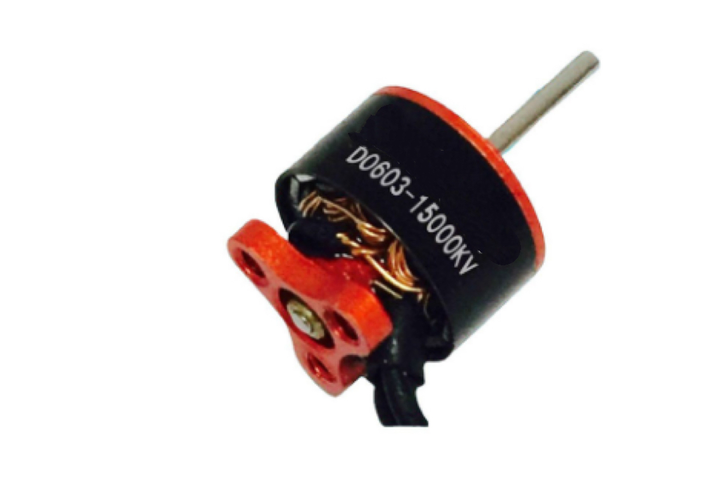

The D0603 15000KV brushless motor delivers ultra-high RPM performance for miniature drones and micro UAV applications. Featuring a nano-scale design with precision-balanced components, it provides exceptional thrust-to-weight ratio while maintaining smooth operation. The motor's lightweight construction and efficient power delivery make it ideal for palm-sized drones, indoor flying models, and micro robotic applications requiring extreme agility.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP4X (Limited Dust Protection) |
| Rated Voltage | 1S-2S LiPo (3.7-7.4V) |
| Continuous Power | 17W @ 7.4V (Peak 35W) |
| Max Thrust | 45g (Peak) / 14g (Continuous) |
| Speed Range | 10,000-150,000 RPM (ESC Adjustable) |
| KV Rating | 12000-22000 RPM/V |
| Phase Resistance | 0.25Ω (Phase-to-Phase) |
| Shaft Diameter | 0.8mm (Hardened Steel) |
| Weight | 1.7g (Without Wires) |
| Mounting | M1.4 Threads (2-point) |
• Nano-Scale Design: 6mm diameter × 3mm height for ultra-compact integration
• High-RPM Precision: Titanium-reinforced rotor balanced for 150k RPM operation
• Ultra-Lightweight: Carbon fiber winding supports for minimal mass
• Low Electrical Noise: Twisted phase wires reduce EMI interference
• Plug-and-Play: Pre-tinned 30AWG silicone wires for easy installation

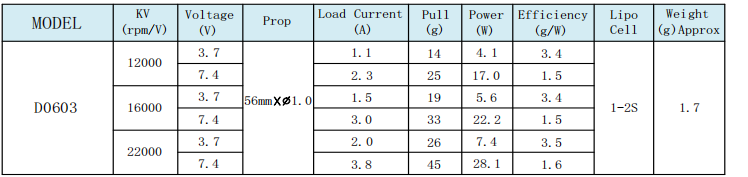

| Thrust | RPM/V | Current | Efficiency |
| 14g | 12000 | 1.1A | 68% |
| 45g | 22000 | 3.8A | 75% |
• 65mm-100mm whoop-class FPV drones
• Indoor nano quadcopters
• Micro long-range UAVs
• 1:144 scale RC plane propulsion
• Free-flight model boosters
• Paper airplane motorization
• Insect-scale flying robots
• Micro camera gimbal actuators
• Swarm robotics propulsion
• Continuous Operation: 45°C @25°C ambient (30sec burst max)
• Thermal Limit: 60-second peak power duration
• Cooling Requirements: Propeller airflow only
• Storage Conditions: -10℃ ~ +60℃, <70% RH
