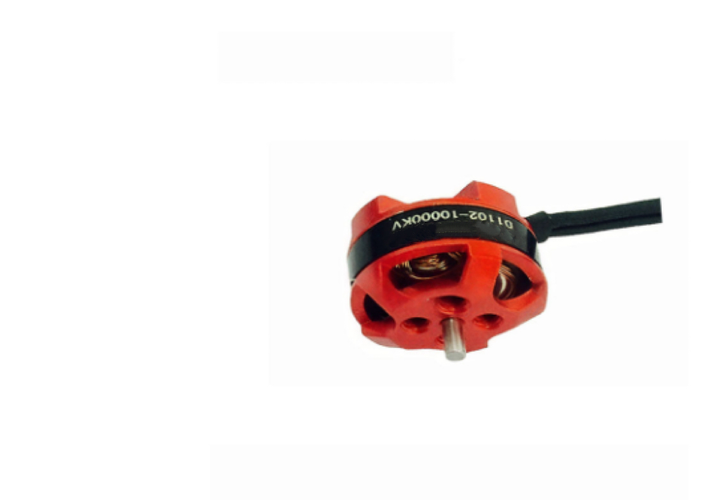

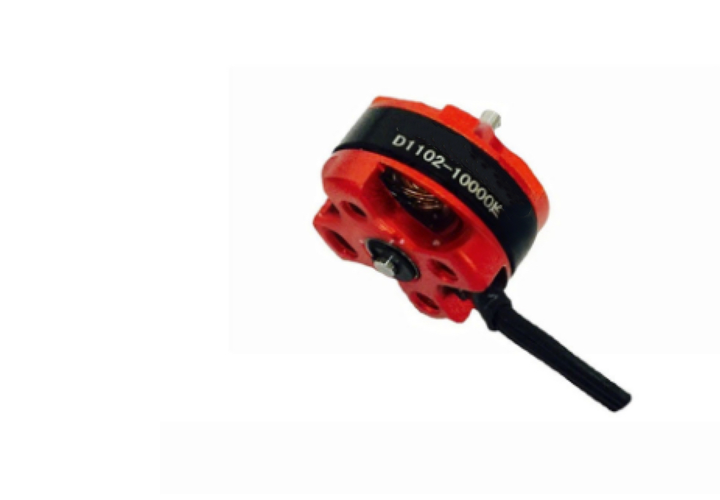

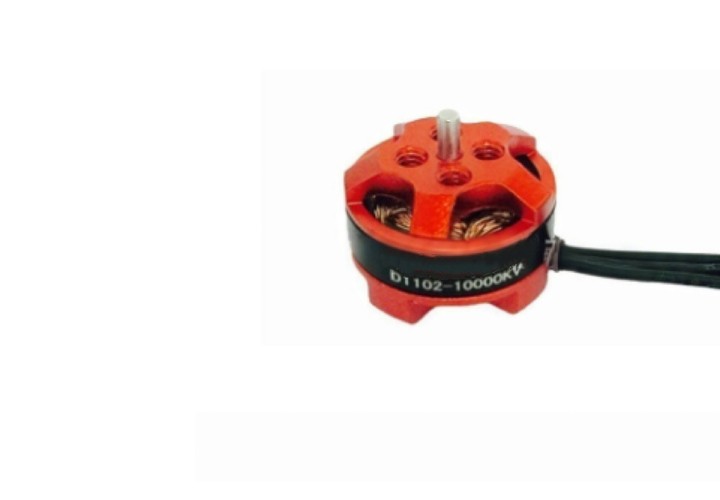

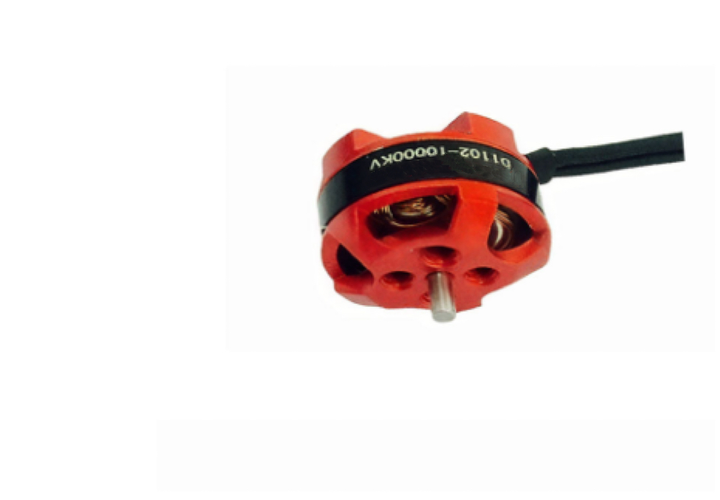

D1102 10000KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$11.90
The D1102 10000KV coreless brushless motor delivers exceptional power density for palm-sized drones and micro UAV applications.
SKU: 31041
Package weight: 0.01 KG
IN STOCK
To Wishlist
Add to Cart



D1102 10000KV Brushless Motor | Coreless Micro Drone Motor for Palm-Sized UAVs

Descriptions

The D1102 10000KV coreless brushless motor delivers exceptional power density for palm-sized drones and micro UAV applications. Featuring an innovative coreless design with titanium-reinforced components, it provides instantaneous throttle response with zero cogging torque. The motor's ultra-lightweight construction and aerodynamic profile make it ideal for sub-50g drones requiring extreme agility and rapid acceleration in confined spaces.

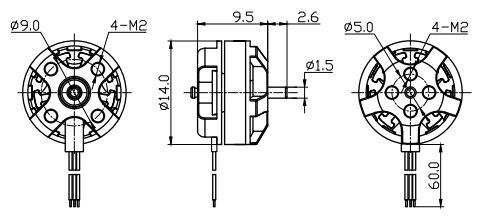

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Coreless BLDC
Protection RatingIP4X (Limited Dust Protection)
Rated Voltage1S-2S LiPo (7.4-11.1V)
Continuous Power15.5W @ 7.4V (Peak 45W)
Max Thrust92g (Peak) / 53g (Continuous)
Speed Range10,000-110,000 RPM (ESC Adjustable)
KV Rating8000-12000 RPM/V
Phase Resistance0.18Ω (Phase-to-Phase)
Shaft Diameter1.0mm (Titanium Alloy)
Weight3.4g (Without Wires)
MountingM1.4 Threads (2-point)

2. Key Features

  • • Coreless Technology: Zero iron losses for ultra-smooth acceleration

  • • Ultra-Light Design: 11mm diameter × 2mm height for palm-sized drones

  • • High-RPM Stability: Titanium-reinforced rotor balanced for 110k RPM

  • • Instant Response: 0-80k RPM acceleration in 0.07 seconds

  • • Low Electrical Noise: Quad-twisted phase wires reduce EMI by 25dB

3. Performance Data

Thrust/Current @ 7.4V (Gemfan 1635 Prop)

ThrustRPM/VCurrentEfficiency
53g80002.1A77%
92g120006.1A69%

4. Recommended Applications

🚁 Palm-Sized Drones

  • • 65-85mm whoop-class FPV drones

  • • Indoor nano racers

  • • Micro cinewhoop platforms

✈️ Micro Aircraft

  • • 1:144 scale RC plane propulsion

  • • Free-flight model boosters

  • • Paper airplane motorization

🤖 Precision Systems

  • • Swarm robotics propulsion

  • • Micro camera gimbal actuators

  • • Reaction wheel stabilizers

5. Thermal Characteristics

  • • Continuous Operation: 50°C @25°C ambient (15sec burst max)

  • • Thermal Limit: 40-second peak power duration

  • • Cooling Requirements: Propeller-induced airflow

  • • Storage Conditions: -20℃ ~ +70℃, <75% RH
