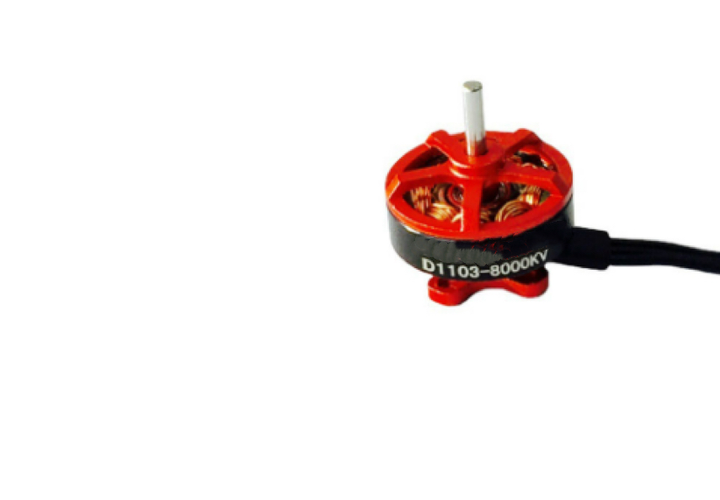

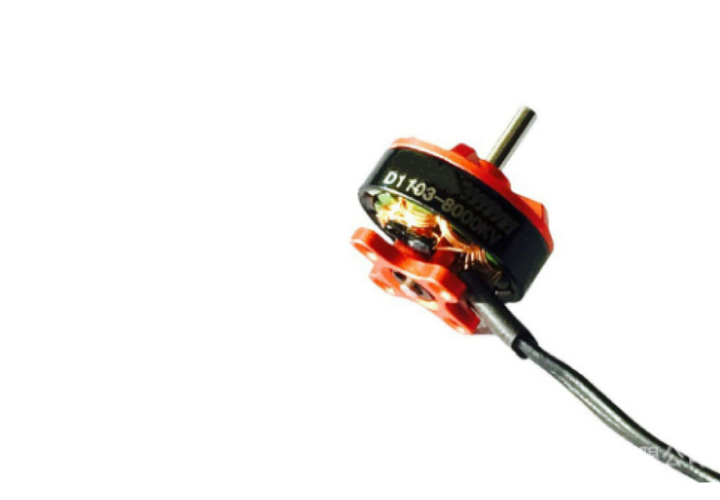

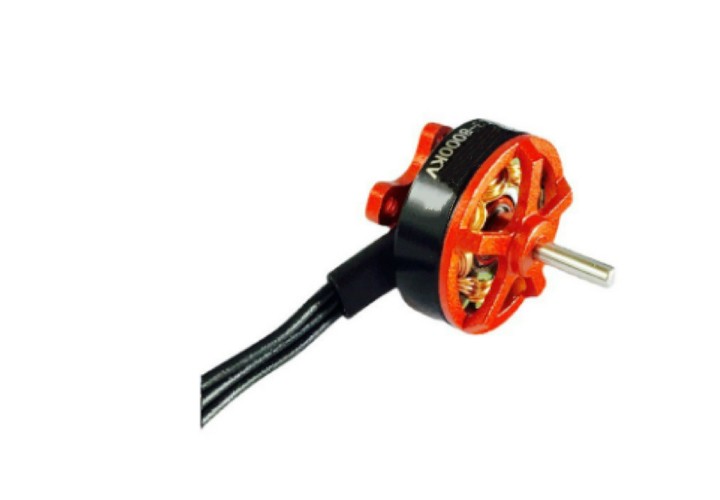

D1103 8000KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$12.90
The D1103 8000KV brushless motor delivers high-efficiency performance for micro drones, fixed-wing aircraft, and multirotor applications.
SKU: 31051
Package weight: 0.01 KG
IN STOCK
To Wishlist
Add to Cart



D1103 8000KV Brushless Motor | Micro Drone & Fixed-Wing Aircraft Motor Specifications

Descriptions

The D1103 8000KV brushless motor delivers high-efficiency performance for micro drones, fixed-wing aircraft, and multirotor applications. Featuring a precision-balanced design with optimized magnetic circuits, it provides exceptional power-to-weight ratio while maintaining smooth throttle response. The motor's lightweight construction and aerodynamic cooling make it ideal for sub-250g UAVs requiring agile flight characteristics and extended flight times.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP4X (Limited Dust Protection)
Rated Voltage1S-3S LiPo (3.7-7.4V)
Continuous Power20.5W @ 7.4V (Peak 100W)
Max Thrust58g (Peak) / 48g (Continuous)
Speed Range8,000-100,000 RPM (ESC Adjustable)
KV Rating65000-10000 RPM/V
Phase Resistance0.14Ω (Phase-to-Phase)

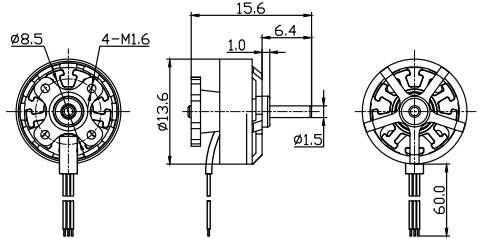

Shaft Diameter1.5mm (Hardened Steel)
Weight4.2g (Without Wires)
MountingM1.6 Threads (2-point)

2. Key Features

  • • High-Efficiency Design: >82% peak efficiency with low iron losses

  • • Precision Balancing: Titanium-reinforced rotor for vibration-free operation

  • • Aerodynamic Cooling: Vented housing reduces windage losses by 15%

  • • Rapid Response: 0-70k RPM acceleration in 0.1 seconds

  • • Versatile Mounting: Compatible with 2mm and 3mm motor mounts

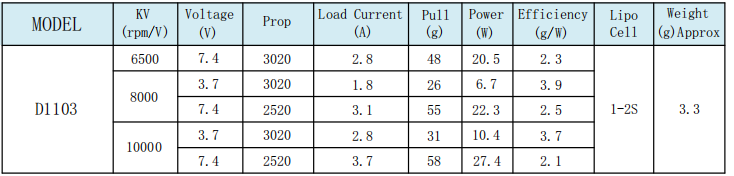

3. Performance Data

Thrust/Current @ 7.4V (Gemfan 2035 Prop)

ThrustRPM/VCurrentEfficiencyFlight Time*
48g65002.8A79%8 min
58g100003.7A84%6 min

4. Recommended Applications

🚁 Multirotor Drones

  • • 2"-3" toothpick-class FPV racers

  • • Micro cinewhoop platforms

  • • Sub-250g freestyle drones

✈️ Fixed-Wing Aircraft

  • • Micro park flyers

  • • EPP foam glider propulsion

  • • Indoor RC plane systems

⚙️ Micro Systems

  • • FPV camera gimbal actuators

  • • Swarm robotics propulsion

  • • STEM educational drones

5. Thermal Characteristics

  • • Continuous Operation: 55°C @25°C ambient (20sec burst max)

  • • Thermal Limit: 50-second peak power duration

  • • Cooling Requirements: Propeller-induced airflow

  • • Storage Conditions: -20℃ ~ +70℃, <75% RH
