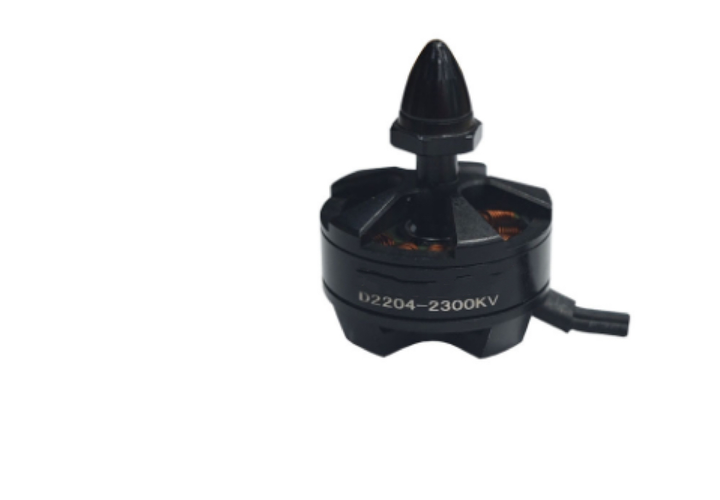

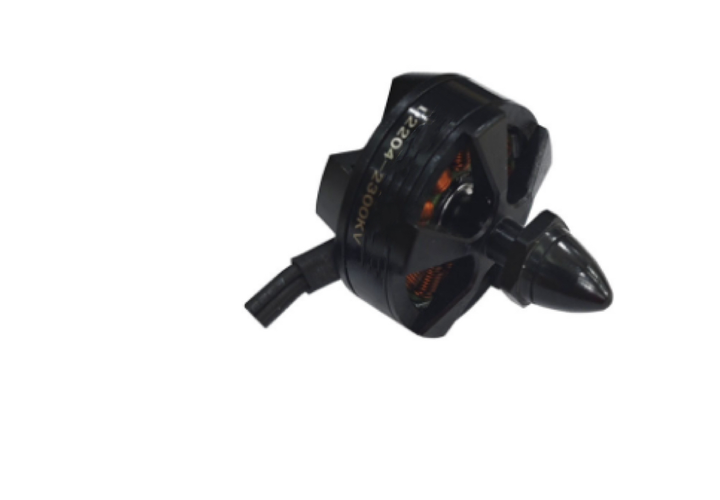

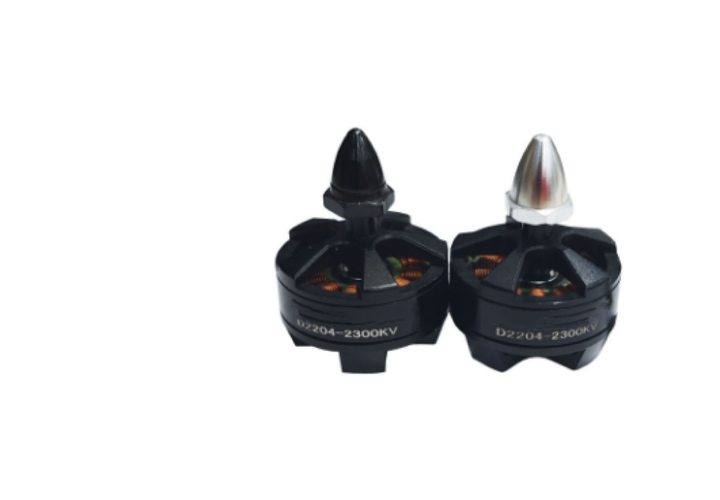

D2204 2300KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$8.90
The D2204 2300KV brushless motor delivers exceptional high-speed performance for FPV drones and multirotor aircraft.
SKU: 31161
Package weight: 0.03 KG
IN STOCK
To Wishlist
Add to Cart



D2204 2300KV Brushless Motor | High-Speed FPV Drone & Multirotor Motor Specifications

Descriptions

The D2204 2300KV brushless motor delivers exceptional high-speed performance for FPV drones and multirotor aircraft. Engineered with precision-balanced components and optimized aerodynamics, it provides responsive throttle control and efficient power delivery. The motor's lightweight construction and thermal management make it ideal for racing drones and acrobatic UAVs requiring rapid acceleration and precise maneuverability in competitive environments.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP4X (Limited Dust Protection)
Rated Voltage3S-4S LiPo (7.4-11.1V)
Continuous Power117W @ 11.1V (Peak 520W)
Max Thrust408g (Peak) / 220g (Continuous)
Speed Range5,000-52,000 RPM (ESC Adjustable)
KV Rating2300 RPM/V
Phase Resistance0.036Ω (Phase-to-Phase)

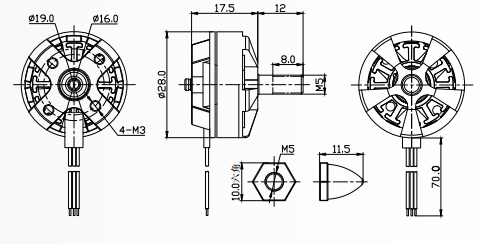

Shaft Design5mm Threaded (M5 CW & CCW)
Weight25g (Without Wires)
Mounting16×16mm / M3 Threads (4-point)

2. Key Features

  • • High-Speed Optimization: Aerodynamic housing reduces wind resistance by 18%

  • • Precision Balancing: Titanium-reinforced rotor with <0.015g·mm imbalance

  • • Dual-Threaded Shaft: Includes both CW and CCW M5 shafts for propeller flexibility

  • • Rapid Acceleration: 0-45k RPM in 0.07 seconds for instant throttle response

  • • Thermal Management: Vented design lowers operating temperature by 24°C

3. Performance Data

Thrust/Current @ 14.8V (Gemfan 5040 Prop)

ThrustRPMCurrentEfficiencyFlight Time*
220g23005.8A88%8 min
408g230010.5A91%6 min
*Based on 1300mAh 4S battery



4. Recommended Applications

🚁 High-Speed FPV Drones

  • • 5" racing quadcopters

  • • Multi-gate competition drones

  • • Acrobatic freestyle platforms

🛸 Multirotor Systems

  • • Cinematic heavy-lift hexacopters

  • • Search and rescue UAVs

  • • Agricultural monitoring drones

✈️ Aircraft Models

  • • High-speed wing propulsion

  • • 3D aerobatic planes

  • • VTOL transition aircraft

5. Thermal Characteristics

  • • Continuous Operation: 70°C @25°C ambient (20sec burst max)

  • • Thermal Management: Maintains <80°C at 90% load with airflow

  • • Cooling Requirements: Minimum 6m/s propeller-induced airflow

  • • Storage Conditions: -20℃ ~ +70℃, <75% RH
