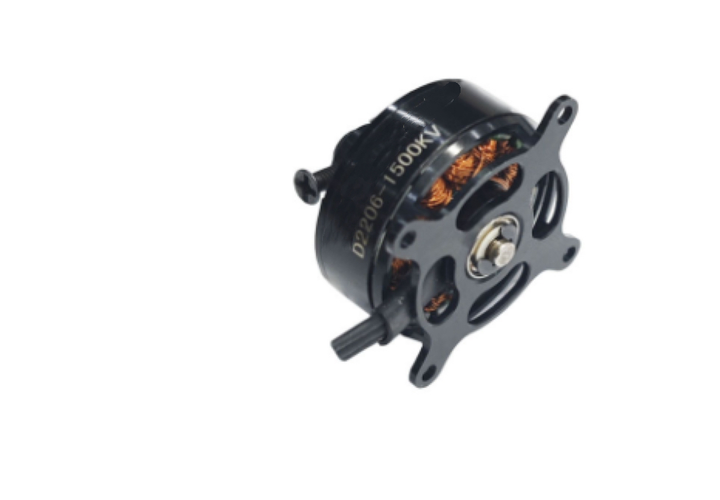

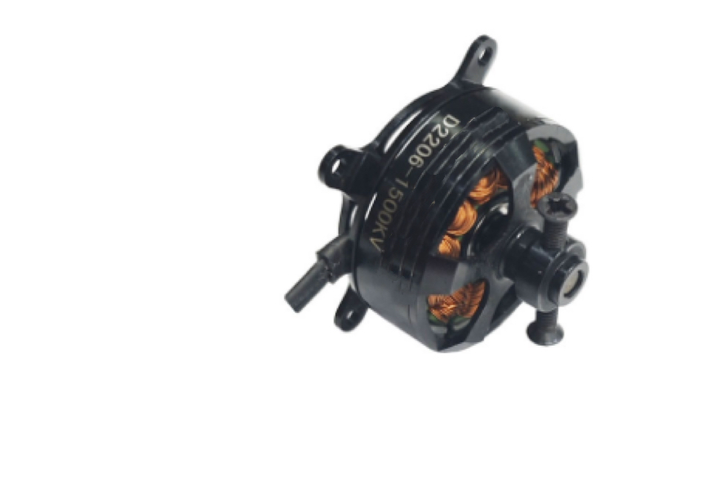

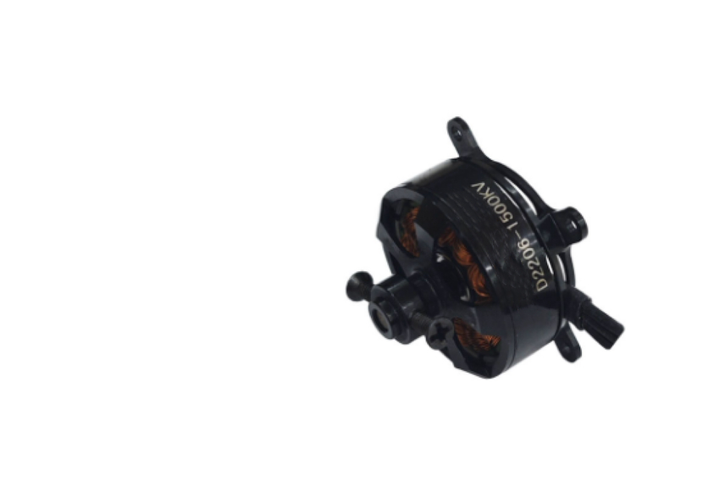

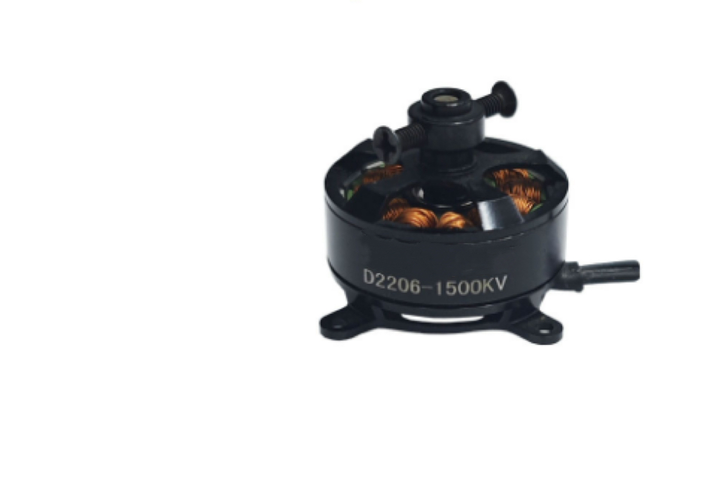

D2206 1500KV Brushless Motor | RC Aircraft & Model Motor Specifications

Descriptions

The D2206 1500KV brushless motor delivers efficient power for RC aircraft and scale models. Engineered with precision-balanced components and optimized magnetic circuits, it provides exceptional torque density with smooth operation. The motor's lightweight construction and thermal management make it ideal for fixed-wing aircraft and multirotor platforms requiring stable flight characteristics and extended flight times.

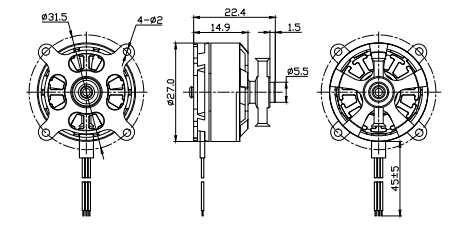

1. Main Specifications

2. Key Features

• • High Torque Design: Optimized for larger propellers (7"-9")

• • Precision Balancing: Titanium-reinforced rotor with <0.03g·mm imbalance

• • Efficient Cooling: Aerodynamic vents reduce operating temperature by 20°C

• • Low Noise Operation: Helical skew design minimizes acoustic signature

• • Dual-Threaded Shaft: Includes both CW and CCW M5 shafts

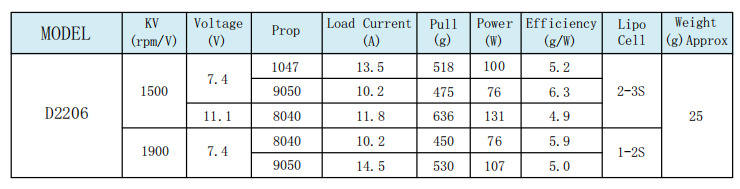

3. Performance Data

Thrust/Current @ 22.2V (Gemfan 8040 Prop)

4. Recommended Applications

✈️ Fixed-Wing Aircraft

• • Scale model warbirds

• • Aerobatic trainers

• • Glider tow planes

🚁 Multirotor Systems

• • Aerial photography platforms

• • Heavy-lift hexacopters

• • Mapping/survey drones

🏁 Racing Models

• • Large-scale pylon racers

• • Jet turbine starters

• • Competition sailplanes

5. Thermal Characteristics

• • Continuous Operation: 70°C @25°C ambient (30sec burst max)

• • Thermal Management: Maintains <80°C at 85% load with airflow

• • Cooling Requirements: Minimum 5m/s propeller-induced airflow

• • Storage Conditions: -20℃ ~ +70℃, <75% RH
