Big Motors > AirDrive (Drones/Fixed-wing)

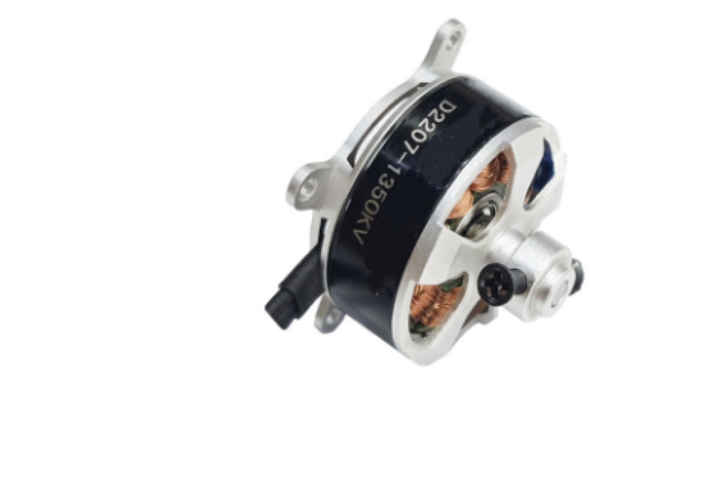

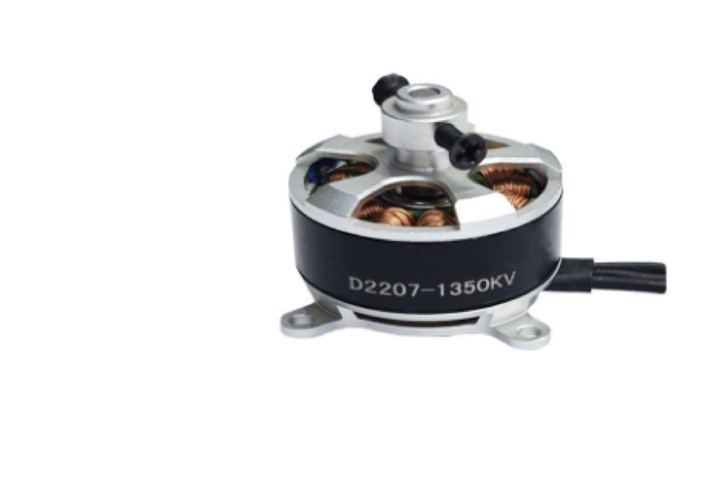

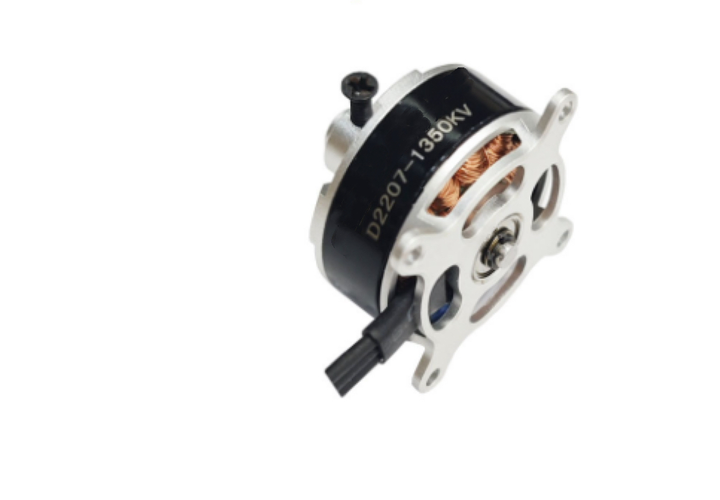

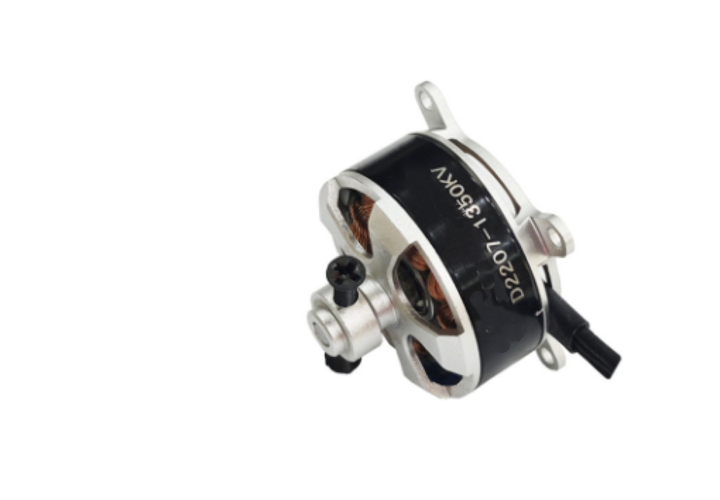

The D2207 1350KV brushless motor delivers high-torque performance for quadcopters and FPV drones. Engineered with precision-balanced components and optimized magnetic circuits, it provides exceptional flight stability with smooth throttle response. The motor's lightweight construction and thermal management make it ideal for 5"-7" drones requiring agile maneuverability and extended flight times in demanding FPV applications.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP4X (Limited Dust Protection) |
| Rated Voltage | 4S-6S LiPo (7.4-11.1V) |
| Continuous Power | 87W @ 7.4V (Peak 150W) |
| Max Thrust | 750g (Peak) / 490g (Continuous) |
| Speed Range | 4,000-40,000 RPM (ESC Adjustable) |
| KV Rating | 1350-1500 RPM/V |
| Phase Resistance | 0.032Ω (Phase-to-Phase) |
| Shaft Design | 5mm Threaded (M5 CW & CCW) |
| Weight | 28g (Without Wires) |
| Mounting | 16×16mm / M3 Threads (4-point) |
• High Torque Design: Optimized for low-KV operation with larger propellers
• Precision Balancing: Titanium-reinforced rotor with <0.02g·mm imbalance
• Efficient Cooling: Aerodynamic vents reduce operating temperature by 22°C
• Rapid Response: 0-35k RPM acceleration in 0.08 seconds
• Dual-Threaded Shaft: Includes both CW and CCW M5 shafts for propeller flexibility
| Thrust | RPM/V | Current | Efficiency | Flight Time* |
| 490g | 1350 | 12A | 88% | 12 min |
| 750g | 1500 | 13.5A | 91% | 9 min |
| *Based on 1800mAh 6S battery |
• 5"-7" freestyle drones
• Long-range FPV platforms
• Heavy-lift cinewhoop drones
• Technical course racing quads
• Endurance racing platforms
• Multi-gate competition drones
• Lightweight mapping drones
• Search and rescue UAVs
• Industrial inspection quadcopters
• Continuous Operation: 70°C @25°C ambient (30sec burst max)
• Thermal Management: Maintains <80°C at 90% load with airflow
• Cooling Requirements: Minimum 5m/s propeller-induced airflow
• Storage Conditions: -20℃ ~ +70℃, <75% RH
