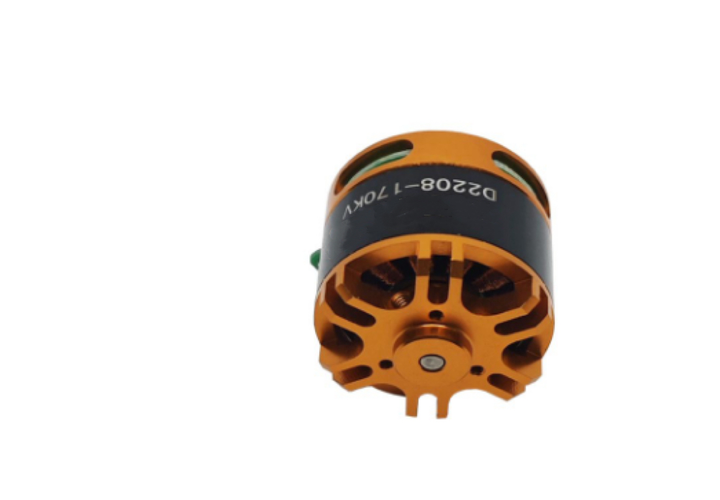

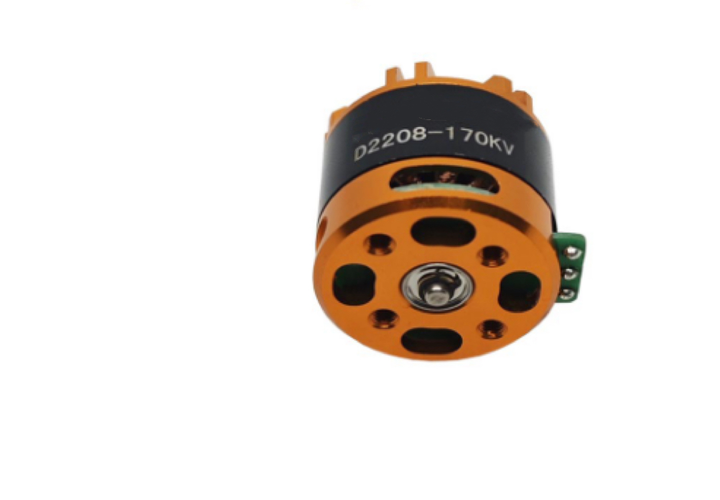

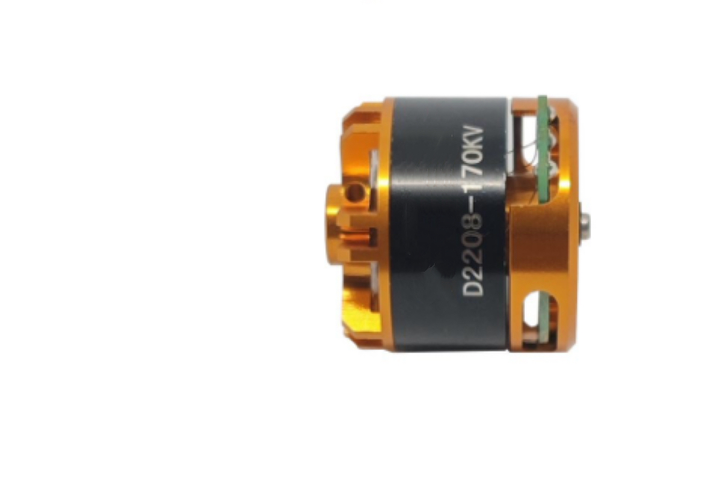

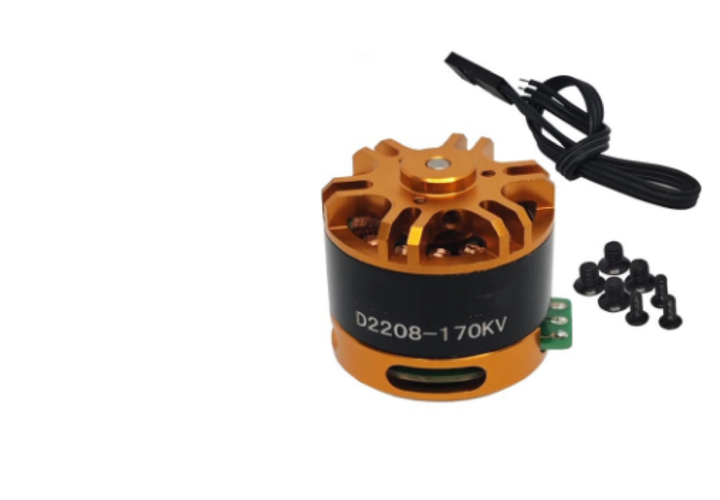

D2208 170KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$8.90
The D2208 170KV brushless motor delivers high-torque, low-speed performance for camera gimbals, drones, and scale models.
SKU: 31201
Package weight: 0.03 KG
IN STOCK
To Wishlist
Add to Cart



D2208 170KV Brushless Motor | Gimbal & Multi-Purpose Model Motor Specifications

Descriptions

The D2208 170KV brushless motor delivers high-torque, low-speed performance for camera gimbals, drones, and scale models. Engineered with precision-balanced components and optimized magnetic circuits, it provides smooth, vibration-free operation. The motor's robust construction and thermal management make it ideal for applications requiring precise position control and sustained torque in demanding environments.

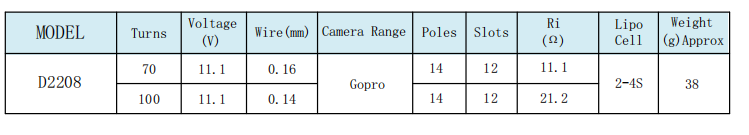

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensored BLDC
Protection RatingIP54 (Dust/Water Splash Protected)
Rated Voltage11.1V DC
Continuous Power180W @ 11.1V (Peak 420W)
Max Torque2.8Nm (Peak) / 1.9Nm (Continuous)
Speed Range100-3000 RPM (FOC Adjustable)
KV Rating70-100 RPM/V
Phase Resistance11.1Ω (Phase-to-Phase)
Shaft Diameter4mm (Stainless Steel)
Weight38g

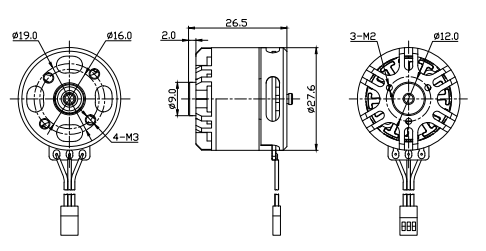

Mounting16×19mm / M3 Threads (4-point)

2. Key Features

  • • Ultra-Smooth Operation: Triple Hall sensors with 0.2° position accuracy

  • • Vibration-Free: Precision-balanced rotor with <0.05g·mm imbalance

  • • High Torque Density: N52SH neodymium magnets for responsive low-RPM control

  • • Dual-Cooling Design: Radial vents + thermal conductive housing

  • • Multi-Platform Ready: Compatible with PWM/S-BUS/CAN control protocols

3. Performance Data

Torque/Efficiency @ 24V

RPMTorqueEfficiencyCurrentPower Output
5001.8Nm92%2.8A94W
15001.5Nm89%4.2A235W
25001.0Nm84%5.0A261W

4. Recommended Applications

📷 Camera Gimbals

  • • 3-axis brushless gimbal systems

  • • DSLR camera stabilizers

  • • Cinematic drone camera mounts

✈️ Drone Systems

  • • Heavy-lift drone gimbal drives

  • • VTOL aircraft tilt mechanisms

  • • Payload positioning systems

🚗 Scale Models

  • • RC car winch/crane mechanisms

  • • Boat rudder and sail control

  • • Tank turret rotation drives

⚙️ Precision Control

  • • Robotic arm joints

  • • Telescope tracking systems

  • • Industrial automation stages

5. Thermal Characteristics

  • • Continuous Operation: 60°C @25°C ambient (Class F insulation)

  • • Thermal Protection: Auto-throttling at 75°C + cutoff at 95°C

  • • Cooling Requirements: Natural convection (forced air recommended >100W)

  • • Storage Conditions: -30℃ ~ +85℃, <85% RH
