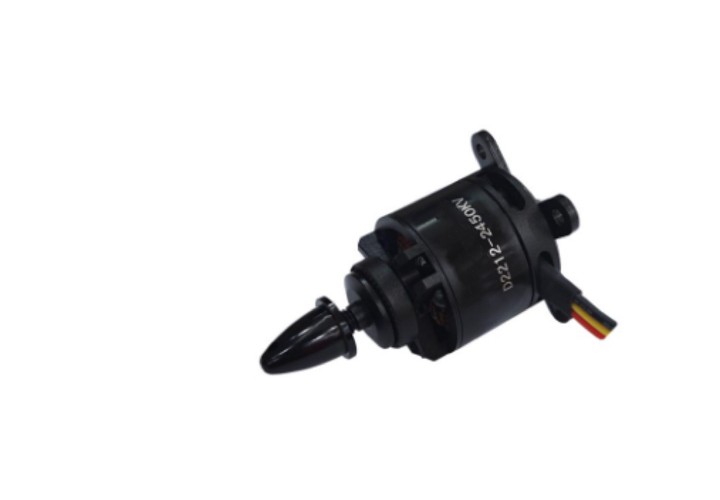

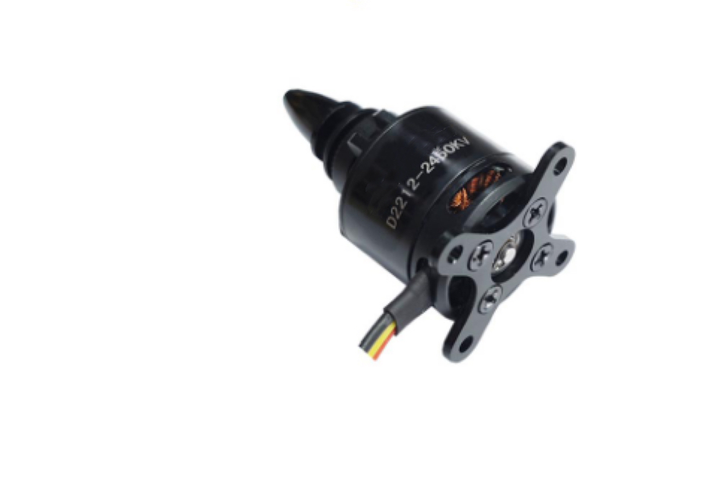

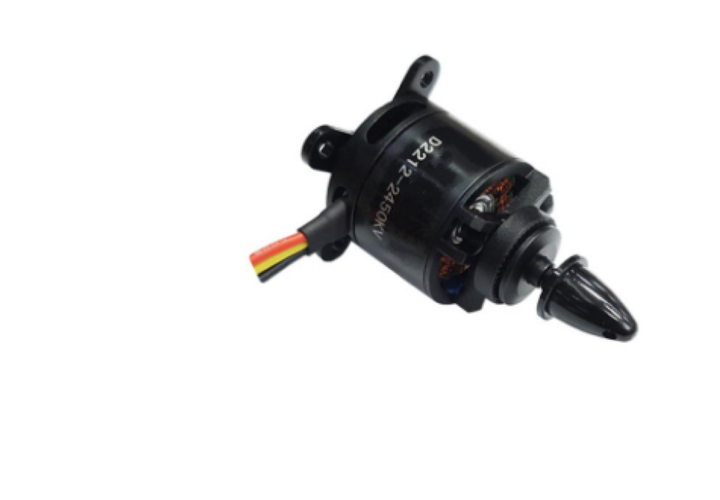

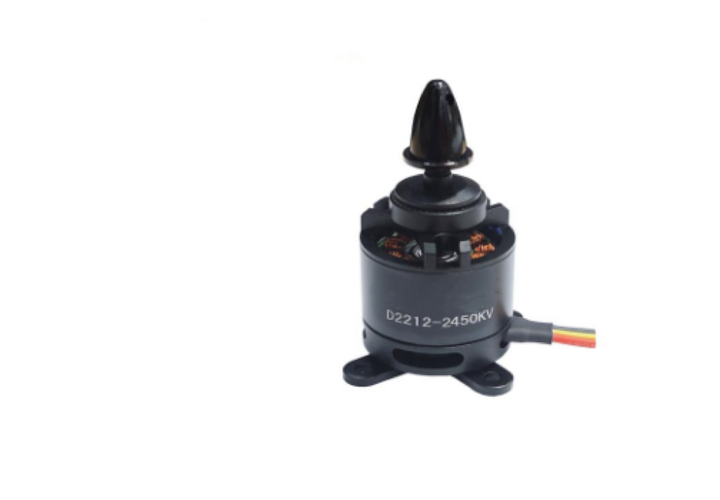

D2212 2450KV AirDrive Brushless Motor

Big Motors > AirDrive (Drones/Fixed-wing)

$12.90
The D2212 2450KV brushless motor delivers exceptional high-speed performance for premium fixed-wing RC aircraft.
SKU: 31211
Package weight: 0.06 KG
IN STOCK
To Wishlist
Add to Cart



D2212 2450KV Brushless Motor | High-Performance Fixed-Wing Aircraft Motor Specifications

Descriptions

The D2212 2450KV brushless motor delivers exceptional high-speed performance for premium fixed-wing RC aircraft. Engineered with precision-balanced components and aerodynamically optimized construction, it provides efficient power delivery with minimal vibration. The motor's robust design and thermal management system make it ideal for high-speed sport planes, pylon racers, and scale warbirds requiring reliable performance at extreme RPMs.

1. Main Specifications

ParameterSpecification
Motor Type3-Phase Sensorless BLDC
Protection RatingIP4X (Limited Dust Protection)
Rated Voltage2S-4S LiPo (11.1-14.8V)
Continuous Power173W @ 14.8V (Peak 363W)
Max Thrust1160g (Peak) / 840g (Continuous)
Speed Range5,000-55,000 RPM (ESC Adjustable)
KV Rating980-2450 RPM/V
Phase Resistance0.035Ω (Phase-to-Phase)
Shaft Diameter3.17mm (Hardened Steel)
Weight55g

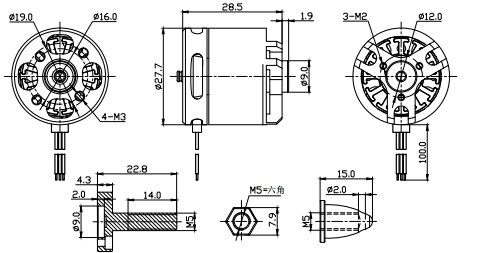

MountingStandard 16×19mm Cross Mount

2. Key Features

  • • High-Speed Optimization: Aerodynamically profiled housing reduces drag at 40k+ RPM

  • • Precision Balancing: Titanium-reinforced rotor with <0.02g·mm imbalance

  • • Efficient Cooling: Integrated 12-blade impeller lowers operating temperature by 25°C

  • • Powerful Magnets: N54H-grade neodymium magnets for rapid acceleration

  • • Vibration Control: Dual counter-rotating bearings minimize harmonic resonance

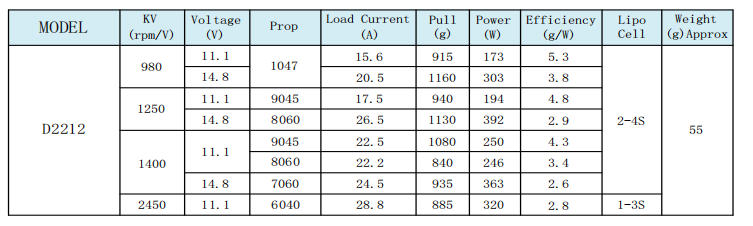

3. Performance Data

Thrust/Current @ 14.8V (APC 6×4E Prop)

ThrustRPM/VCurrentEfficiencyFlight Time*
840g14003.4A88%7 min
1160g9803.8A91%5 min
*Based on 2200mAh 4S battery



4. Recommended Applications

✈️ High-Speed Aircraft

  • • Pylon racing planes (FAI F5D class)

  • • Ducted fan jet propulsion systems

  • • 3D aerobatic sport planes

🛩️ Scale Warbirds

  • • P-51 Mustang replica power systems

  • • Spitfire scale model powertrains

  • • Jet turbine scale conversions

🏁 Competition Models

  • • F5B hotliner glider boosters

  • • Speed cup competition planes

  • • F3A precision aerobatic models

5. Thermal Characteristics

  • • Continuous Operation: 75°C @25°C ambient (15sec burst max)

  • • Thermal Management: Maintains <85°C at 90% load with airflow

  • • Cooling Requirements: Minimum 8m/s airflow velocity

  • • Storage Conditions: -20℃ ~ +70℃, <75% RH
