D2216 810KV Brushless Motor | RC Aircraft & Multirotor Motor Specifications

Descriptions

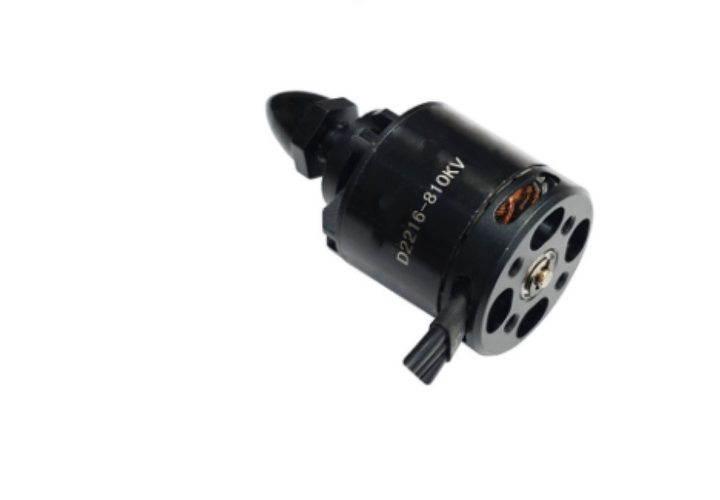

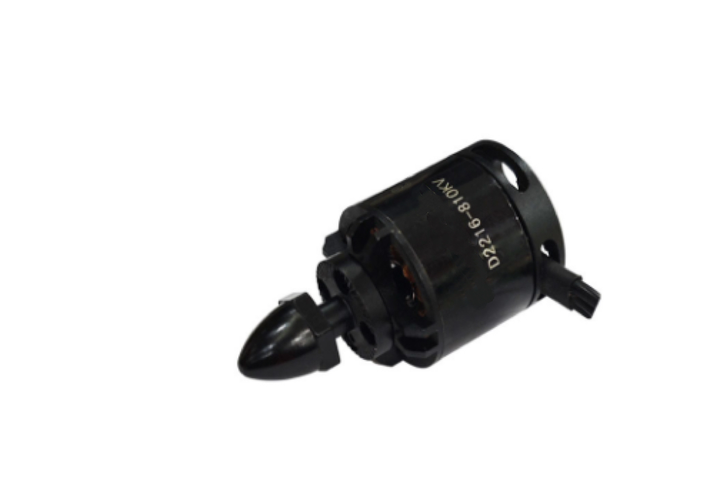

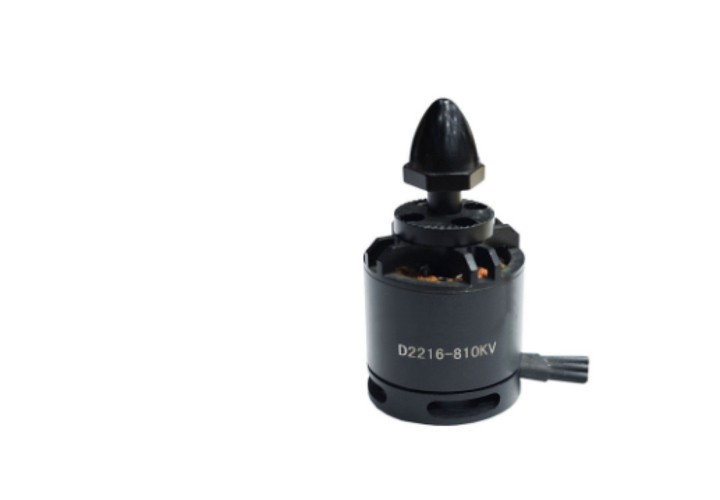

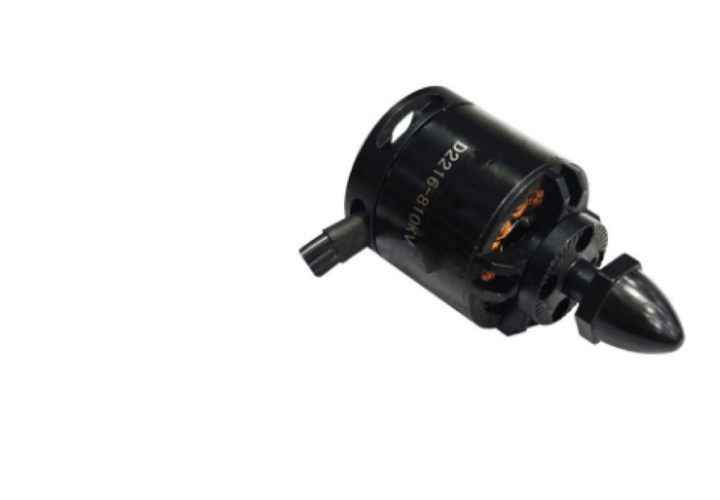

The D2216 810KV brushless motor delivers efficient high-torque performance for RC aircraft and multirotor applications. Featuring dual-threaded shafts (CW/CCW) and precision-balanced components, it provides exceptional power delivery with minimal vibration. The motor's robust construction and thermal management make it ideal for larger propellers and sustained operations requiring reliable performance in demanding flight conditions.

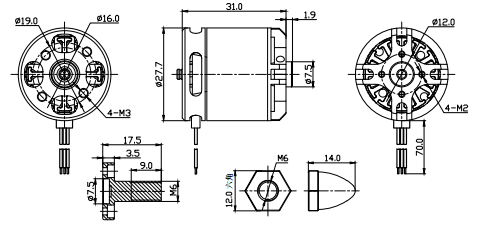

1. Main Specifications

2. Key Features

• • Dual-Threaded Shaft: Includes both clockwise (CW) and counterclockwise (CCW) M5 shafts

• • High Torque Design: Optimized for 9"-12" propellers at lower RPMs

• • Precision Balancing: Titanium-reinforced rotor with <0.03g·mm imbalance

• • Efficient Cooling: Integrated cooling fins reduce operating temperature by 22°C

• • Vibration Control: Dual counter-rotating bearings minimize harmonic resonance

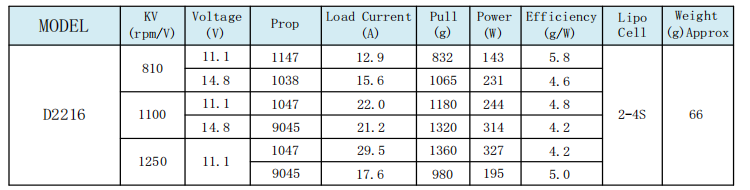

3. Performance Data

Thrust/Current @ 22.2V (APC 10×5 Prop)

4. Recommended Applications

✈️ Fixed-Wing Aircraft

• • Scale warbirds (P-51, Spitfire)

• • Aerobatic trainers

• • Glider tow planes

🚁 Multirotor Systems

• • Aerial photography platforms

• • Heavy-lift hexacopters

• • Agricultural spraying drones

⛵ Marine Models

• • Large scale boat propulsion

• • Submarine drive systems

• • Sail winch mechanisms

🏗️ Industrial Models

• • Heavy-duty RC construction equipment

• • Scale crane winch systems

• • Robotic arm actuators

5. Thermal Characteristics

• • Continuous Operation: 70°C @25°C ambient (30sec burst max)

• • Thermal Management: Maintains <80°C at 85% load with airflow

• • Cooling Requirements: Minimum 4m/s propeller-induced airflow

• • Storage Conditions: -20℃ ~ +70℃, <75% RH
