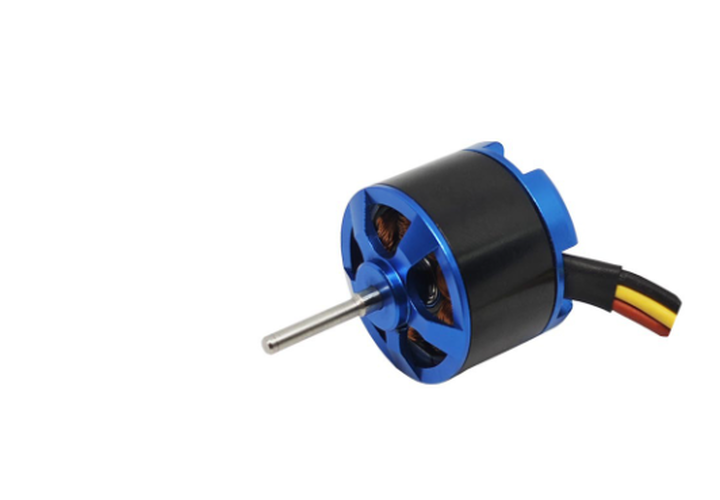

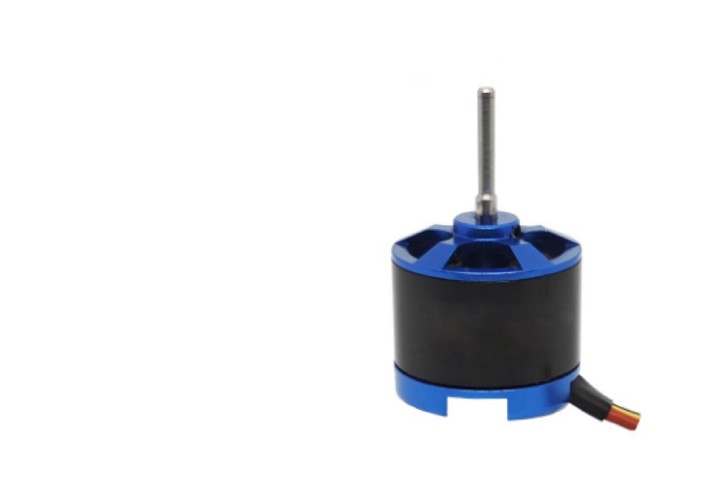

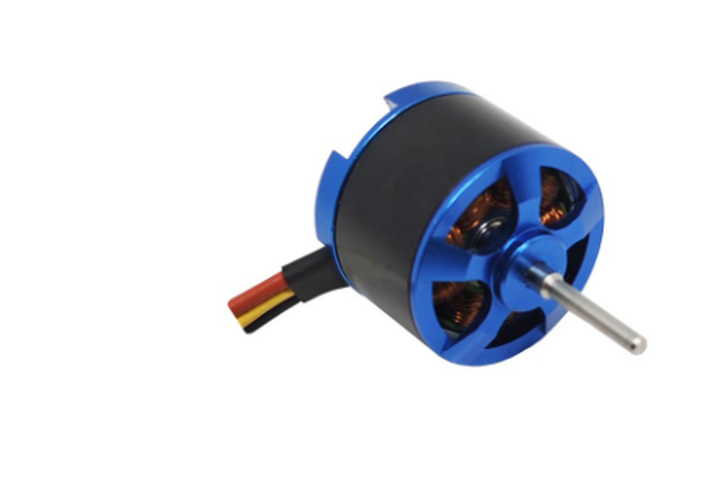

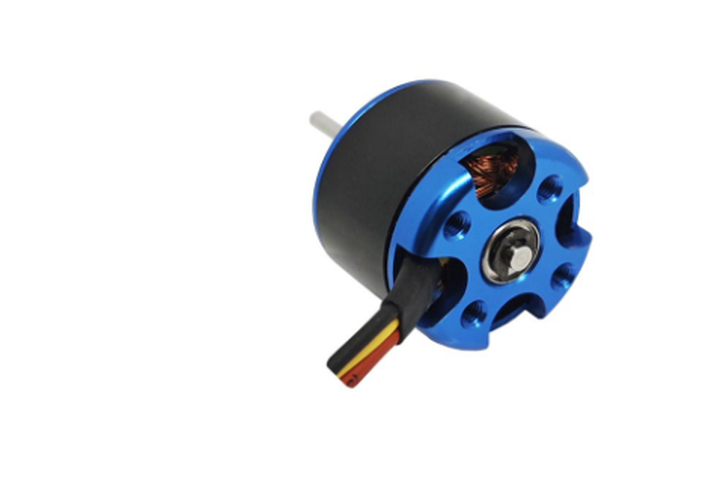

D2622 1950KV Brushless Motor | RC Glider, Fixed-Wing Aircraft & Multirotor Motor Specifications

Descriptions

The D2622 1950KV brushless motor delivers optimized performance for lightweight RC gliders, fixed-wing aircraft, and compact multirotors. Engineered with precision-balanced components and efficient electromagnetic design, it provides exceptional torque-to-weight ratio for extended flight durations. The motor's compact form factor, thermal efficiency, and low-noise operation make it ideal for applications requiring smooth throttle response and reliable power delivery in soaring and FPV platforms.

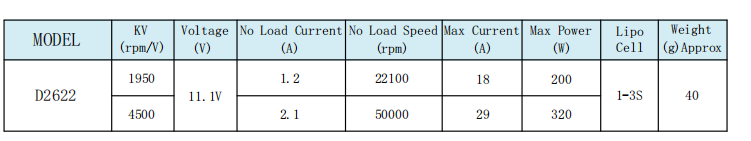

1. Motor Specifications

2. Key Features

• • Lightweight Design: Optimized for small gliders and multirotors under 500g AUW

• • Precision Balancing: Composite rotor with <0.02g·mm dynamic imbalance

• • High Torque Output: Efficient thrust with larger propellers (9×5" range)

• • Dual-Bearing Support: Stainless steel bearings for high-RPM durability

• • Thermal Management: Aluminum housing with axial cooling fins

3. Performance Data

Application-Specific Efficiency

4. Recommended Applications

🪂 RC Gliders & Fixed-Wing

• • Thermal-soaring gliders (1.2–2.2m wingspan)

• • Trainer aircraft (e.g., Bixler, Volantex Ranger)

• • FPV reconnaissance platforms

✈ Multirotors

• • 250–350mm micro quadcopters

• • Cinematic tricopter gimbal carriers

⚡ Hybrid Systems

• • VTOL (Vertical Takeoff/Landing) prototypes

5. Thermal Characteristics

• • Continuous Operation: ≤65°C @ 25°C ambient

• • Cooling Requirements: 3m/s airflow (passive sufficient for gliders)

• • Thermal Protection: Auto-shutdown at 105°C

• • Storage Conditions: -20°C to +60°C, <70% RH
