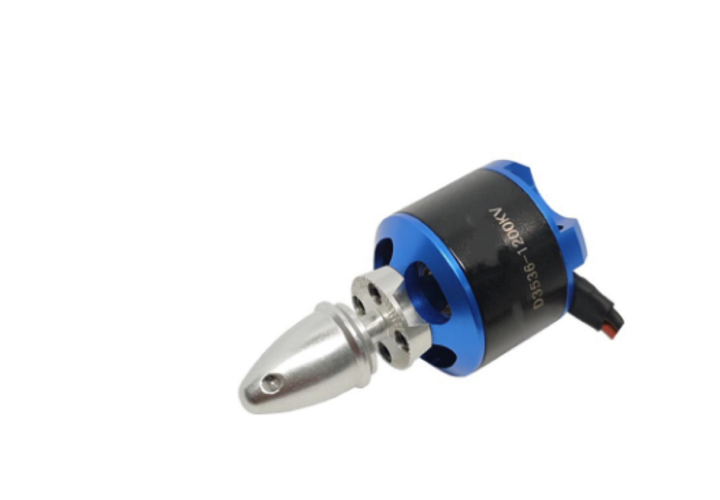

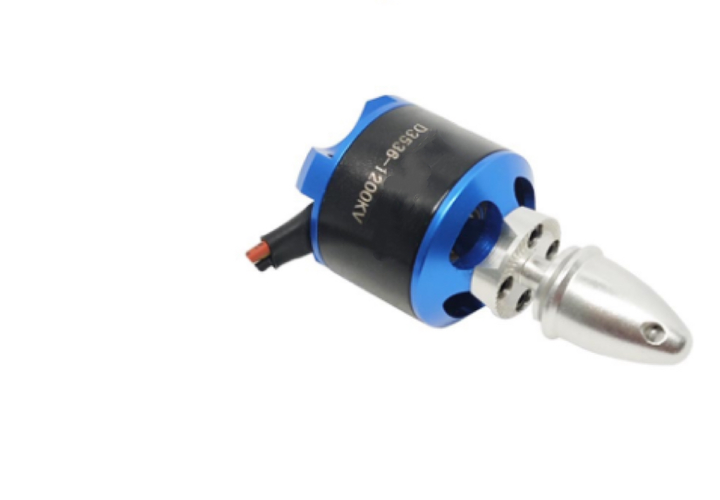

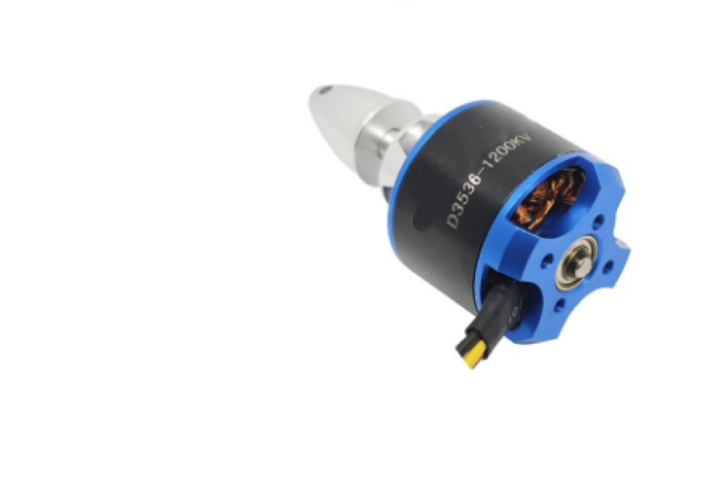

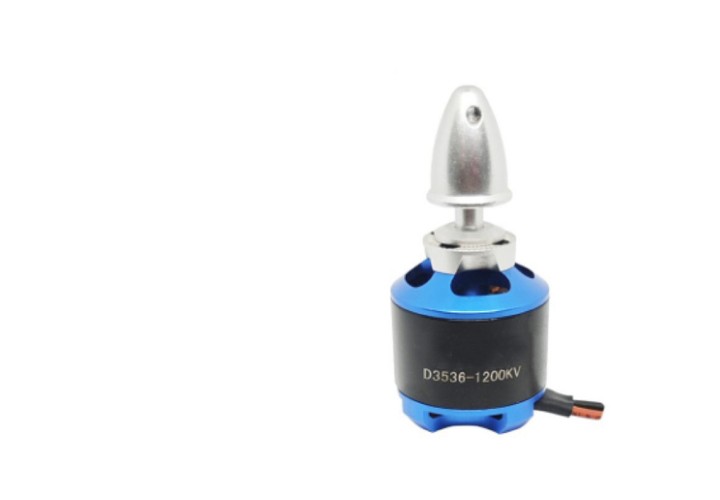

The D3536 1200KV brushless motor delivers versatile high-RPM performance for large-scale fixed-wing aircraft and precision small appliances. Engineered with industrial-grade components and optimized electromagnetic design, it provides reliable power density across diverse applications. The motor's robust construction ensures smooth operation in demanding flight conditions while maintaining energy efficiency for continuous-use appliances requiring compact, high-speed solutions.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC |
| Protection Rating | IP55 (Dust & Water Protected) |
| Rated Voltage | 3S-6S LiPo (11.1V) |
| Continuous Power | 289W @ 11.1V |
| Max Torque | 1.2Nm (Peak) / 0.8Nm (Continuous) |
| Speed Range | 5,000–45,000 RPM (ESC Adjustable) |
| KV Rating | 900-1200 RPM/V |
| Phase Resistance | 0.035Ω (Phase-to-Phase) |
| Shaft Diameter | 5.0mm (Hardened Steel) |
| Weight | 115g |
| Mounting | 30×30mm / M4 Threads (4-point) |

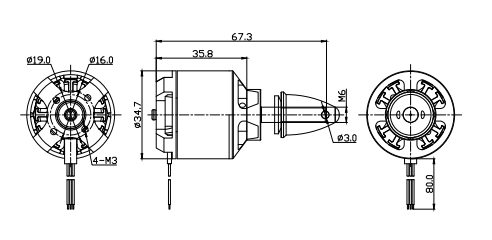

| Dimensions | Ø35mm × 36mm (Stator Diameter × Height) |
• Dual-Application Design: Optimized for both aircraft propulsion and appliance integration
• Precision Balancing: <0.02g·mm dynamic imbalance for low vibration
• High-Speed Capability: 0-40k RPM acceleration in 0.15 seconds
• Industrial Construction: Reinforced housing withstands high G-forces and impacts
• Thermal Management: Aluminum housing with radial cooling fins
| Application | Voltage | Load | Output |
| Fixed-Wing (2.5m) | 22.2V (6S) | 12×8" propeller | 2800g thrust |
| Drone Cinematic | 14.8V (4S) | 10×5" carbon | 1850g thrust |
| High-Speed Blender | 24V DC | 6-blade impeller | 28,000 RPM |
| Vacuum Pump | 18V DC | Rotary vane | 0.6Nm torque |
• 2-3m wingspan fixed-wing models
• Large-scale EDF jet propulsion
• 3D aerobatic competition planes
• High-performance blenders and mixers
• Cordless vacuum cleaner turbines
• Power tool drives (drills, saws)
• CNC spindle motors
• Laboratory centrifuge drives
• Medical device pumps
• Continuous Operation: ≤75°C @ 25°C ambient
• Thermal Management: Maintains <85°C at 90% load with airflow
• Cooling Requirements: 3m/s airflow (forced cooling for appliances)
• Storage Conditions: -20°C to +70°C, <80% RH
