D5060 280KV Brushless Motor | E-Bike & Smart Robotics Motor Specifications

Descriptions

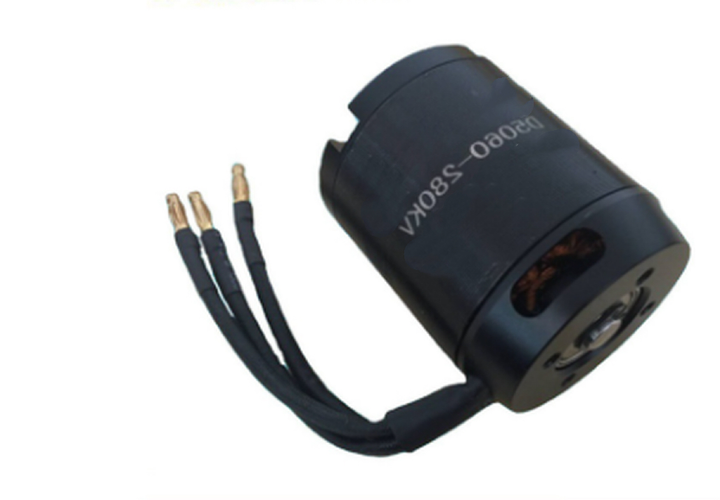

The D5060 280KV brushless motor delivers precision torque control for electric bicycles, power tools, and advanced robotics. Featuring a sensored design with dual Hall-effect sensors, it provides smooth startup and accurate speed regulation. The motor's compact form factor and high power density make it ideal for space-constrained applications requiring reliable performance under variable loads.

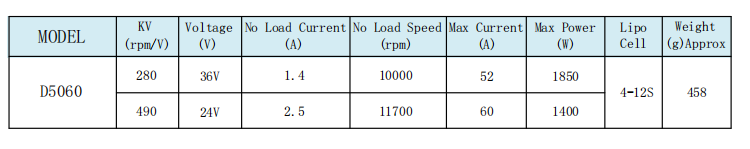

1. Main Specifications

2. Key Features

• • Precision Control: Dual 14-bit magnetic encoders for ±0.5° position accuracy

• • Torque Boost: Field weakening extends constant-power range by 40%

• • Silent Operation: Sinusoidal commutation with <1% torque ripple

• • Smart Diagnostics: Built-in CAN bus interface for real-time telemetry

• • Dual-Bearing Shaft: Ceramic hybrid bearings rated for 5000N radial load

3. Performance Data

Efficiency/Torque Curve (48V @25°C)

4. Recommended Applications

🚴 E-Bike Systems

• • Mid-drive pedal assist motors

• • Cargo bike hub conversions

• • Stealth electric mountain bikes

🔧 Professional Tools

• • Cordless concrete cutters

• • High-torque impact drivers

• • Portable band saws

🤖 Smart Robotics

• • Collaborative robot joints (6-axis arms)

• • Automated guided vehicle (AGV) drives

• • Exoskeleton power units

5. Thermal Characteristics

• • Continuous Operation: 65°C @25°C ambient (Class H insulation)

• • Thermal Management: Aluminum cooling fins + optional liquid jacket

• • Safety Cutoff: Triple redundant protection at 105°C

• • Storage Conditions: -40℃ ~ +100℃, <85% RH
