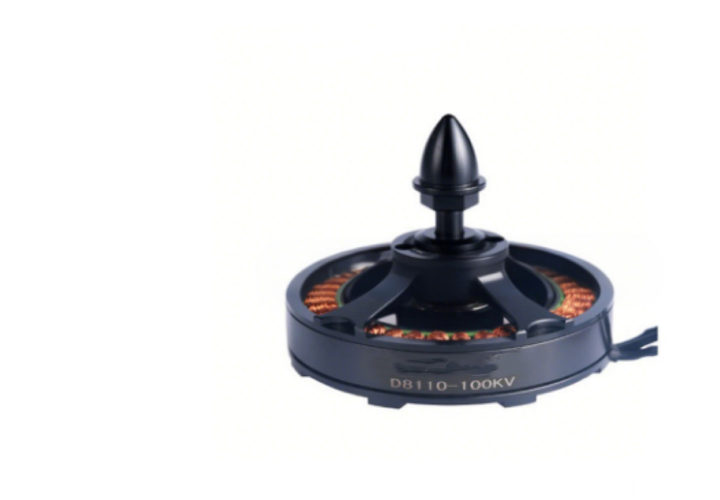

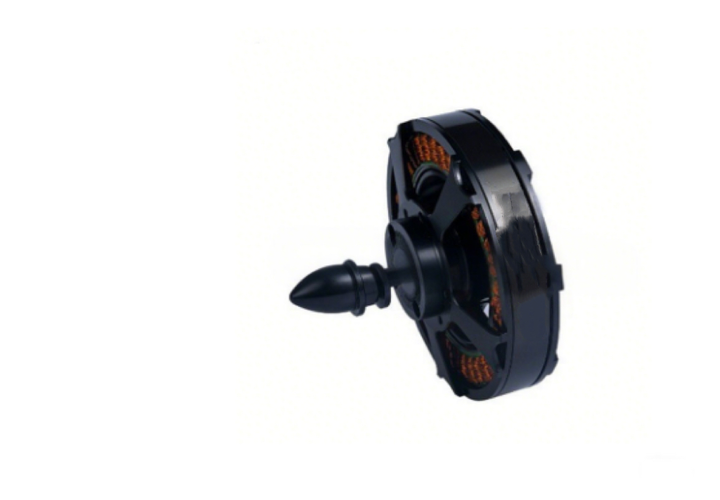

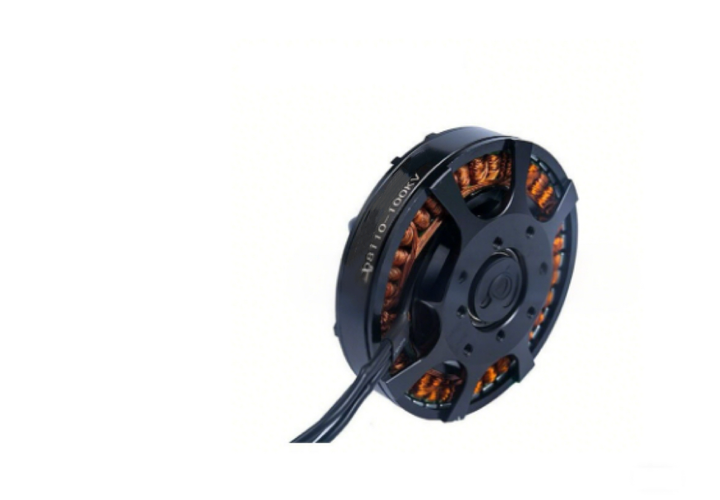

The D8110 100KV brushless motor delivers versatile high-torque performance for agricultural drones, electric vehicles, and household appliances. Featuring a sealed outer-rotor design with corrosion-resistant components, it provides exceptional efficiency across diverse operating conditions. The motor's robust construction and intelligent thermal management make it ideal for precision farming equipment, light electric transportation systems, and high-duty-cycle home appliances requiring reliable power delivery.
| Parameter | Specification |
| Motor Type | 3-Phase Sensorless BLDC (Outer Rotor) |
| Protection Rating | IP65 (Dust Tight & Water Jet Resistant) |
| Rated Voltage | 6S-12S LiPo (44.4V) |
| Continuous Power | 968W @ 44.4V (Peak 2800W) |
| Max Thrust | 7000g (Peak) / 7300kg (Continuous) |
| Speed Range | 500-6,000 RPM (ESC Adjustable) |
| KV Rating | 100 RPM/V ± 3% |
| Phase Resistance | 0.04Ω (Phase-to-Phase) |
| Shaft Diameter | 10.0mm (Hardened Stainless Steel) |
| Weight | 340g (Including Mounting Plate) |

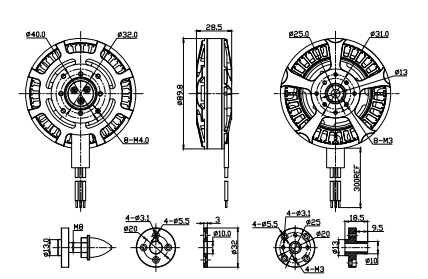

| Mounting | M6 Threads (4-point, 30×30mm pattern) |
• Multi-Environment Design: Corrosion-resistant coating withstands pesticides, moisture, and dust
• High-Torque Architecture: 16-pole stator with arc-segmented N52UH magnets
• Sealed Integration: Dual-lip sealed bearings with labyrinth protection
• Thermal Optimization: Copper-wound cooling channels in stator core
• Smart Compatibility: Built-in temperature sensor for controller feedback
• Vibration Control: Dynamic rotor balancing for <0.5g unbalance
| Thrust | RPM | Current | Efficiency |
| 10kg | 2,600 | 41A | 88% |
| 15kg | 3,800 | 63A | 84% |
• 4-6 axis pesticide sprayers (10-20L capacity)
• Crop monitoring multispectral platforms
• Seed planting drones with pneumatic dispensers
• Autonomous orchard sprayers
• Livestock feed distribution robots
• Soil analysis probe carriers
• Light utility transport carts
• Mobility scooter drive systems
• Golf cart traction motors
• High-power vacuum cleaners
• Commercial blender drives
• Pressure washer pump motors
• Continuous Operation: 70°C @40°C ambient (2hr spray cycle)
• Thermal Limit: 110°C (with progressive power reduction)
• Cooling Requirements: Natural convection (no forced airflow needed)
• Storage Conditions: -25℃ ~ +85℃, <90% RH
