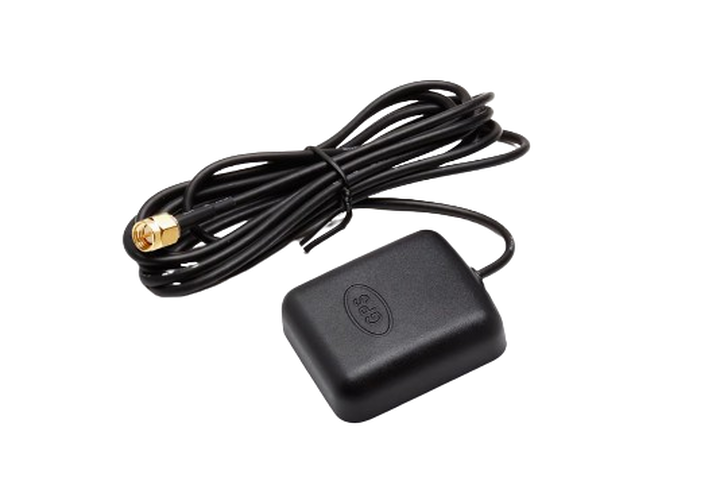

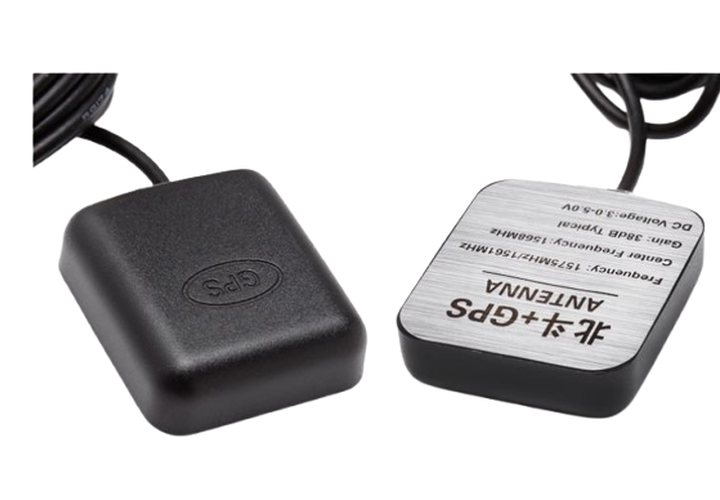

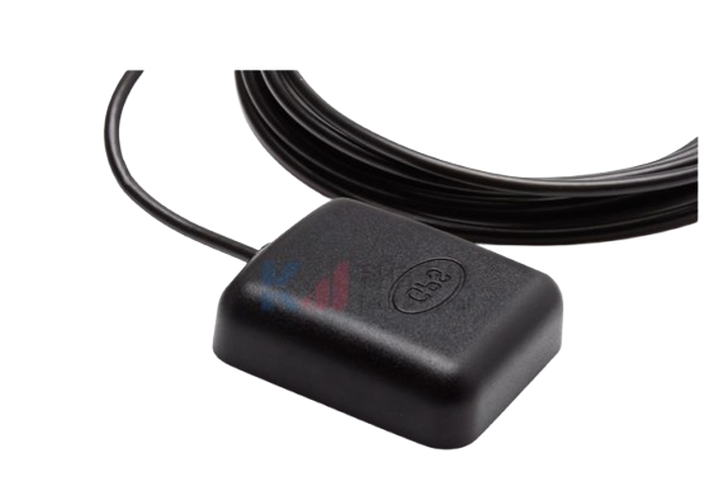

Dual-Stage Amplified BD+GPS Antenna

FPV Electronics > Camera & GPS

$1.90
The Dual-Stage Amplified BD+GPS Antenna delivers enhanced positioning performance with integrated dual-band filtering and secondary amplification for automotive and navigation applications.
SKU: 25051
Package weight: 0.10 KG
IN STOCK
To Wishlist
Add to Cart



Dual-Stage Amplified BD+GPS Antenna | Dual-Band Filtered Navigation Antenna Specifications

Descriptions

The Dual-Stage Amplified BD+GPS Antenna delivers enhanced positioning performance with integrated dual-band filtering and secondary amplification for automotive and navigation applications. Engineered for BD (BeiDou) and GPS dual-mode reception, it provides stable 3-meter accuracy in challenging signal environments. The antenna's SMA male (internal pin) connector and ruggedized housing ensure reliable operation for vehicle tracking, marine navigation, and outdoor equipment requiring robust satellite reception.

1. Main Specifications

ParameterSpecification
Supported SystemsBeiDou B1I/B2I/B3I, GPS L1/L2, GLONASS L1
Positioning Accuracy3m CEP (Autonomous)
Frequency Range1559-1610 MHz (BD) / 1575.42 MHz (GPS L1)
AmplificationDual-stage LNA (35dB gain)
Filter TechnologyBand-pass filter w/ >40dB out-of-band rejection
VSWR≤1.5
Connector TypeSMA Male (Internal Pin)
Cable Length3 meters RG174 (Low-Loss)
Operating Voltage3-5V DC
Current Draw15mA @ 5V
DimensionsØ45mm × 15mm (Height)

2. Key Features

  • • Dual-Stage Amplification: 35dB gain LNA with <1.0dB noise figure

  • • Interference Rejection: Band-pass filtering blocks cellular/4G/5G interference

  • • Waterproof Design: IP67-rated housing withstands automotive environments

  • • Magnetic Mount: Integrated N52 magnet (98kg pull force) for quick installation

  • • Multi-GNSS Compatibility: Simultaneous BD/GPS/GLONASS signal reception

3. Performance Data

Positioning Performance

EnvironmentSatellites LockedPosition AccuracyTTFF (Cold Start)
Open Sky18-222.1m<30s
Urban Canyon8-123.5m<45s
Forest Coverage6-104.2m<60s
Moving Vehicle12-163.0m<35s

4. Recommended Applications

🚗 Automotive Systems

  • • Vehicle tracking and fleet management

  • • Car navigation systems

  • • Toll collection systems

🌊 Marine Navigation

  • • Boat GPS/BD positioning

  • • Fish finder integration

  • • Marine autopilot systems

📡 Outdoor Equipment

  • • Surveying GNSS receivers

  • • Agricultural machinery guidance

  • • Drone positioning modules

5. Environmental Characteristics

  • • Operating Temp: -40°C to +85°C

  • • Weather Resistance: IP67-rated (Submersible to 1m for 30min)

  • • UV Resistance: 1000+ sun hours without degradation

  • • Vibration Resistance: 15G @ 10-500Hz (SAE J1455 compliant)
